Trailed sprayer machines are important equipment used for spraying liquids (such as pesticides, fertilizers, disinfectants, etc.) in agriculture, forestry, health and epidemic prevention, etc. They improve work efficiency and drug utilization by atomizing and spraying the liquid evenly.
Truck-mounted / Trailed Sprayers
The 3W backpack boom sprayer uses a double-cylinder diaphragm pump for stable operating pressure and uniform spray. The 3WGS-600 orchard sprayer uses a ceramic nozzle, which atomizes the droplets through hydraulic and wind power, resulting in even droplet distribution and effective pest control.
Motorized Trailed Sprayer
Motorized sprayers (gasoline/diesel powered) use a small internal combustion engine to drive a high-pressure pump, resulting in high pressure (usually 2-5 MPa), fine atomized particles, a long range (up to 10-20 meters), and high operating efficiency.
capacity ranges 500L-1000L
3W series trailed sprayer is mainly used for spraying drugs on dry and paddy fields such as soybeans, corn, cotton, wheat and rice, and also for spraying drugs on lawns, fruit trees, tea trees, vegetables and roadside trees.
The capacity ranges from 500L-1000L, with a spray width of 8m-12m, and comes with a 30-120hp tractor.


Trailed Sprayer uses
The 3W Series of sprayer uses a utility model boom sprayer with three-point linkage to the rear of the tractor, with adjustable spray height, foldable boom and adjustable wheelbase.
The sprayer is equipped with a variety of nozzles to meet different spraying needs
Trailed Sprayer Durability
Durability: The material must be corrosion-resistant (due to contact with pesticides), and the quality of vulnerable components such as the pump and nozzle must be reliable.

Advantages: They have a high degree of automation and can be combined with GPS navigation for precise spraying, significantly improving efficiency over large areas.
Suitable applications: Large-scale farmland, large orchards, grasslands, and other areas in plain areas.

| 3W Series of Trailed Sprayer | |||||
| Description | Model | Capacity (L) | Spraying width(mm) | Weight (kg) | Matched power(HP) |
| 3W Knapsack boom Sprayer | 3W-500L-8 | 500 | 8000 | 160 | 40-50 |
| 3W-600L-8 | 600 | 10000 | 170 | 40-50 | |
| 3W-800L-12 | 800 | 12000 | 200 | 40-50 | |
| 3W-1000L-12 | 1000 | 12000 | 220 | 60-80 | |
Trailed sprayer
Trailed sprayer can be used for pest control, foliar fertilizer and herbicide spraying on dry and paddy field crops such as soybeans, corn, cotton, wheat and rice. It is also suitable for pest control and fertilization operations in orchards and tea gardens.
Atomization
Atomization: A uniform atomized particle size (typically 10-100 microns) reduces pesticide waste and the risk of crop damage. High-pressure pumps and high-quality nozzles are key.
Efficiency
Efficiency: This depends on the trailed sprayer width, flow rate, and movement speed. For example, drone sprayers offer significantly higher efficiency than manual sprayers.
Trailed Sprayer Endurance
Endurance: For electric/mobile equipment, consider the battery capacity or fuel tank size to ensure it meets the needs of a single operation.
Portability and adaptability
Portability and adaptability: Choose equipment with appropriate weight and structure based on the operating terrain (plains, mountainous areas, greenhouses). For example, a small electric sprayer is suitable for greenhouses, while a backpack-mounted mobile sprayer is suitable for mountainous areas.



-
Boom SprayerSupporting power: 15-120hp tractor.Boom sprayer compact structure: directly installed at the rear of the tractor, does not occupy additional space, and can turn flexibly.Efficient power: utilizing the existing power of the tractor withoutread more
-
Farm SprayerSupporting tractor power: 30-120 horsepower (depending on the model size)PTO speed: 540r/min (standard type) or 1000r/min (efficient type)Medicine box capacity: 300-2000L (recommended for rice fields to be ≥ 1000L to reduce the number ofread more
-
Cantilever SprayerFarm Tractor Mounted Pesticide Boom Tractor Sprayer Matched power: 30-120hpWorking width: 6m/8m/10m/12mLinkage: 3-pointed mountedCompact structure: directly installed at the rear of the tractor, occupying no additional space, and flexibleread more
-
Agriculture Sprayer3W series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain. Agricultural Sprayer Equipment Tractor Pto Driven Hydraulic Folding Arm 500L 600L Boom Sprayer.Also for lawn, fruiter, vegetable,read more
-
Farm Tractor Boom SprayerFarm tractor boom sprayer is mainly used for soybean, corn, cotton, wheat, rice and other early paddy fields, but also suitable for lawn.The spray bar is divided into fixed and hydraulic folding versions, and most foreign trade customersread more
-
Tractor Mounted Boom SprayersTractor mounted boom sprayers offers a 600L tank capacity and a pressure spray system with a spray width of 6-10m.The spraying swath and tank capacity can be customized.Long range, uniform atomization and strong pressure.The boo, sprayerread more
-
Agricultural Pesticide Sprayer1. Agricultural pesticide sprayer operated by the three-point suspension of the tractor; 2. The spray height is adjustable and the spray bar can be folded; 3. The spray is flexible in use and simple in operation, and is suitable forread more
-
3W Watering Sprayer3W watering sprayer features a 1000L capacity, hydraulic lift and fold wings, and double mixing for efficient performance. Equipped with 24 nozzles, a 4-cylinder diaphragm pump, and PTO transmission,ensures high productivity andread more
-
Tractor Boom SprayerThe tractor PTO outputs power to drive the pump, and after the medicine is pressurized, it is sent to the spray bar for atomization and spraying from the fan-shaped nozzle.Accurate and versatile: the high-accuracy 3WP-500 mist spraper is aread more
-

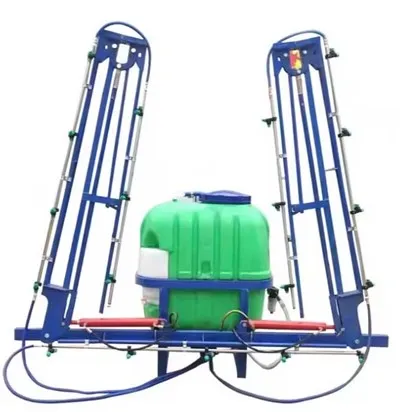

3W Series Sprayer 500-1000L Capacity Pesticide SprayerCommodity: Pesticide SprayerUsage: Farm ImplementPlace of Origin: Shandong, ChinaBrand Name: LeadrayMOQ: 1 set is okayWarranty: 1 yearColor: support customizeCustomization: Availableread more
-
Hydraulic Folding Boom SprayerCommodity: Hydraulic Folding Boom SprayerUsage: Farm ImplementPlace of Origin: Shandong, ChinaBrand Name: LeadrayMOQ: 1 set is okayWarranty: 1 yearColor: support customizeCustomization: Availableread more
-
Farm Implement SprayerCommodity: Agricultural Implement SprayerUsage: Farm ImplementPlace of Origin: Shandong, ChinaBrand Name: LeadrayMOQ: 1 set is okayWarranty: 1 yearColor: support customizeCustomization: Availableread more
The 3W backpack boom trailed sprayer features piping made of special corrosion-resistant materials, excellent corrosion resistance, an adjustable boom height, and a distribution valve arrangement that facilitates easy operation by the tractor driver. It is suitable for pest control on various dryland crops, as well as for spraying foliar fertilizers and herbicides.
Knapsack Trailed Sprayer Structure
* Tank: Used to store liquid pesticides, fertilizers, and other liquids. Trailed sprayer's typically made of corrosion-resistant plastic or metal and comes in varying capacities, with 15L and 20L common options, to meet different operational needs.
* Pump: One of the core components of the trailed sprayer, common examples include diaphragm pumps and piston pumps. Its function is to pump the liquid from the tank and pressurize it so that it can be evenly sprayed through the boom and nozzles.
* Boom: Typically made of lightweight metal or plastic, its length can be adjusted to suit specific needs. Multiple nozzles are mounted on the boom, enabling uniform spraying over a large area. Booms are typically foldable for easy portability and storage.
* Nozzles: Available in a variety of styles, such as fan nozzles and cone nozzles, each suitable for different application scenarios and crops.
The nozzles atomize the pressurized liquid into fine droplets for even application across the crop surface.
* Harness system: It adopts ergonomic design, usually equipped with thickened and widened shoulder straps and waist belt, and some also have breathable cushioning pads on the back, making the operator more comfortable and reducing fatigue when carrying the equipment.

Ttrailed Sprayer
Features: Equipped with a retractable or folding boom and multiple nozzles, they offer a wide spray pattern and high efficiency, making them suitable for large, continuous crop fields.
Subcategories:
Backpack boom trailed sprayer (small, manually operated);
Tractor-mounted/Mounted Boom Sprayers (large);
Self-propelled boom trailed sprayer (self-propelled, such as high-clearance sprayers, suitable for tall crops like corn and cotton).
Applications: Field crops such as wheat, corn, and soybeans, as well as large lawns and nurseries.

Precautions for Using Agricultural Trailed Sprayer
1. Before using an agricultural trailed sprayer, check the equipment for leaks and nozzle blockages, and ensure the correct spray ratio.
2. Wear protective equipment (gloves, mask, protective clothing) to avoid contact with skin.
3. Electric/motorized equipment requires regular maintenance (charging, oil changes, filter cleaning) to extend its service life.
4. When using a drone for spraying, plan your flight path in advance, avoid obstacles, and adhere to flight safety regulations.
*Before use: Check all trailed sprayer components for tight connections, leaks, and nozzle blockages. Install and adjust the sprayer correctly according to the manual.
*During use: Dilute and mix pesticides or other chemicals according to the instructions. Wear protective clothing, a mask, gloves, and other protective equipment to avoid contact with skin and respiratory tract.
*After use: Clean the trailed sprayer promptly, especially the spray box, piping, and nozzle to prevent residual chemical corrosion. Store the trailed sprayer in a dry, well-ventilated area, away from direct sunlight and humidity.
As one of the leading trailed sprayer manufacturers in China, we warmly welcome you to buy bulk discount trailed sprayer from our factory. All customized tractors are with high quality and competitive price. For pricelist, contact us now.
-
