Product Introduction:
Gasoline Slope Grass Cutter Robotic Mower For Orchard Hillside Vineyard Farm.
The cutting height can be remotely adjusted to meet different vegetation mowing demands.
Remote control operation keep operators away from dangerous steep slope working area.
7.5HP gasoline power, 224cc displacement, strong power for grass & light brush up to 2cm diameter.
55cm cutting width, 2-15cm adjustable cutting height, mulching cutting system with 2 swinging blades.
High productivity: 2200㎡ (0.55 acre) per hour, working efficiency equal to 5 workers.
Rubber crawler track, great grip for hillside, flexible move both forward & backward.
Automatic blade height lifting & parking brake, safe operation; optional remote engine start.
Compact size 98*90*40cm, net weight 160kg, easy transport. 36pcs for 20ft container,96pcs for 40ft.
Send Inquiry
Description
Technical Parameters

Removal Professional Wireless Remote Tracked Grass Mower Crawler Robot Flail Cutter for Highway Embankment



product-1728-2120

product-1728-2204

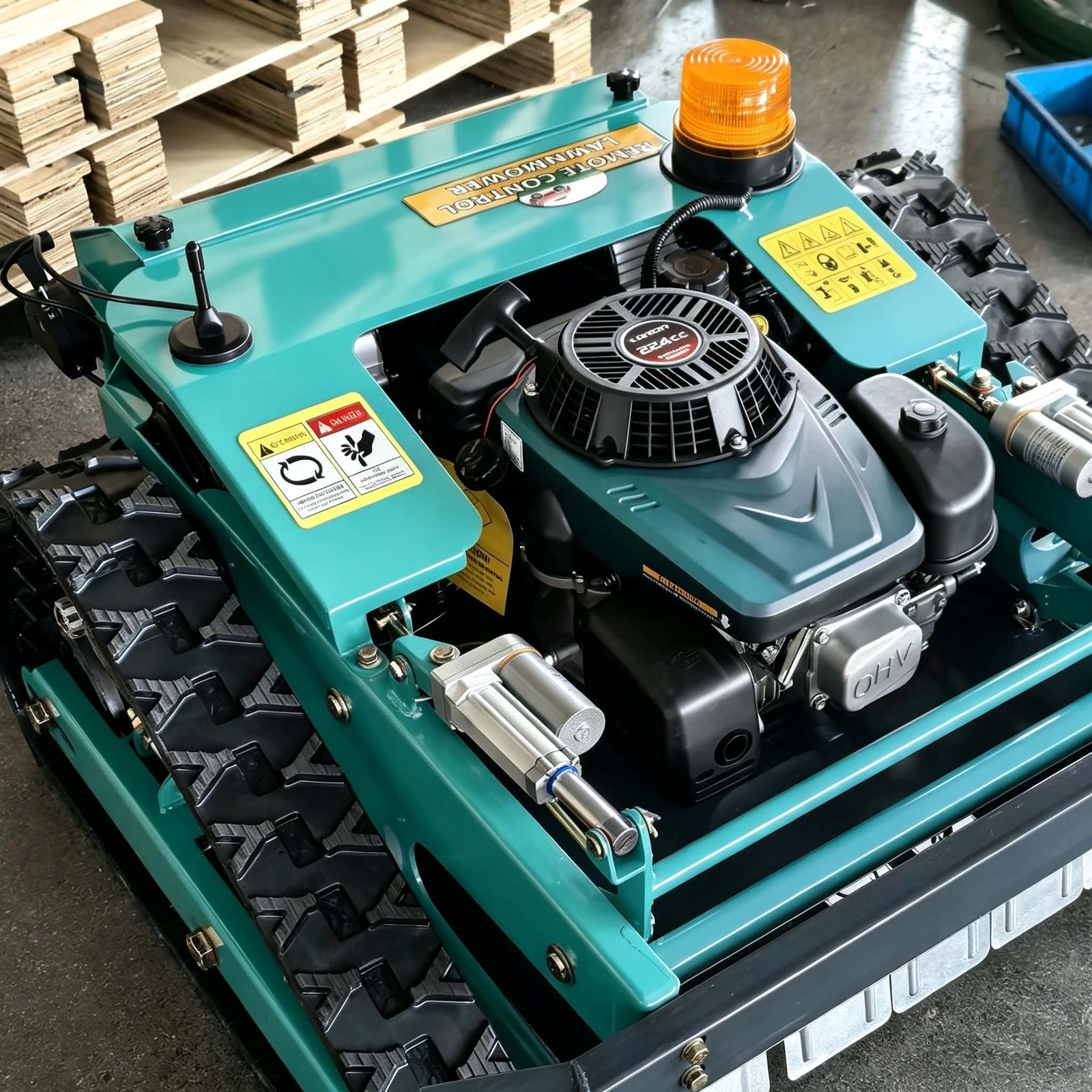

224cc 7.5HP gasoline engine provides sufficient cutting torque for thick wild grass and light brush up to 2 cm diameter. Supports manual & electric start for flexible field startup.

2 swing-type flail blades shred grass and light brush into fine mulch directly on-site. No grass clipping collection needed; mulch decomposes naturally to nourish soil, saving extra disposal labor.

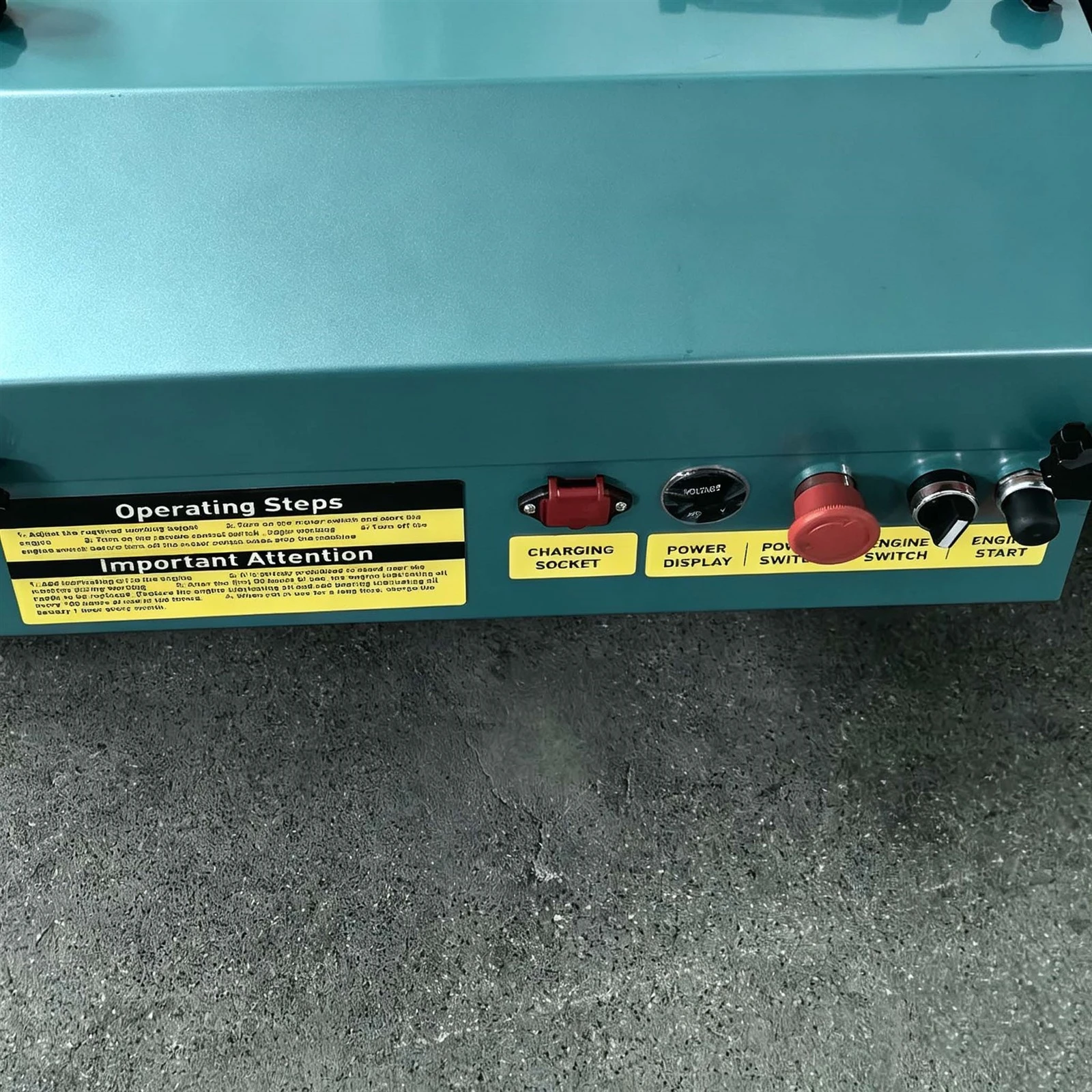

Can be manually/electrically started, with the option of remote engine start.


Multiple optional accessories to meet the needs of multi season operations.




Safe remote-control mowing for hills & steep slopes

product-2048-2048
product-2048-2048
product-2048-2048
product-1932-1932
product-1932-1932
product-2048-2048

Cutting Width Remote Controlled Weed Cutter for Steep Slope.

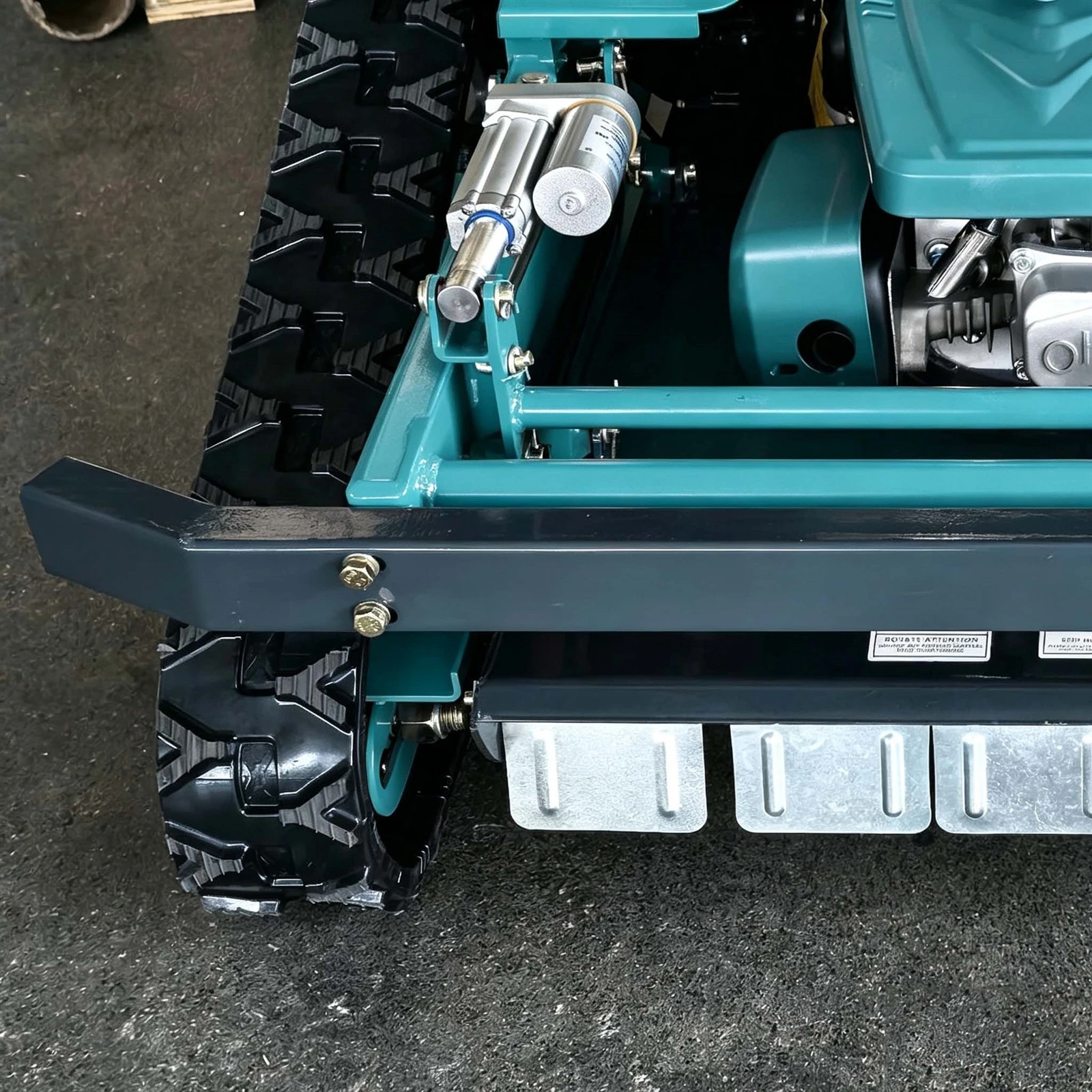

Industrial grade remote control system R1/KBR: maximum control distance of 500 meters, automatic frequency hopping and anti-interference; Dual safety protection of automatic shutdown due to signal loss and red emergency stop button on remote control; Cutting blade Support remote automatic lifting and lowering;



Remote engine start is optional. Operators should stay away from areas with flying grass debris, noise, and dangerous steep slopes.

Blade smashing and returning structure: 2 sets of swinging blades, capable of handling weeds/fine shrubs with a maximum diameter of 2cm;



Returning broken grass to the field without the need for straw bags, reducing the workload of subsequent cleaning; Cut high 2-15cm free adjustment, suitable for different weed heights.

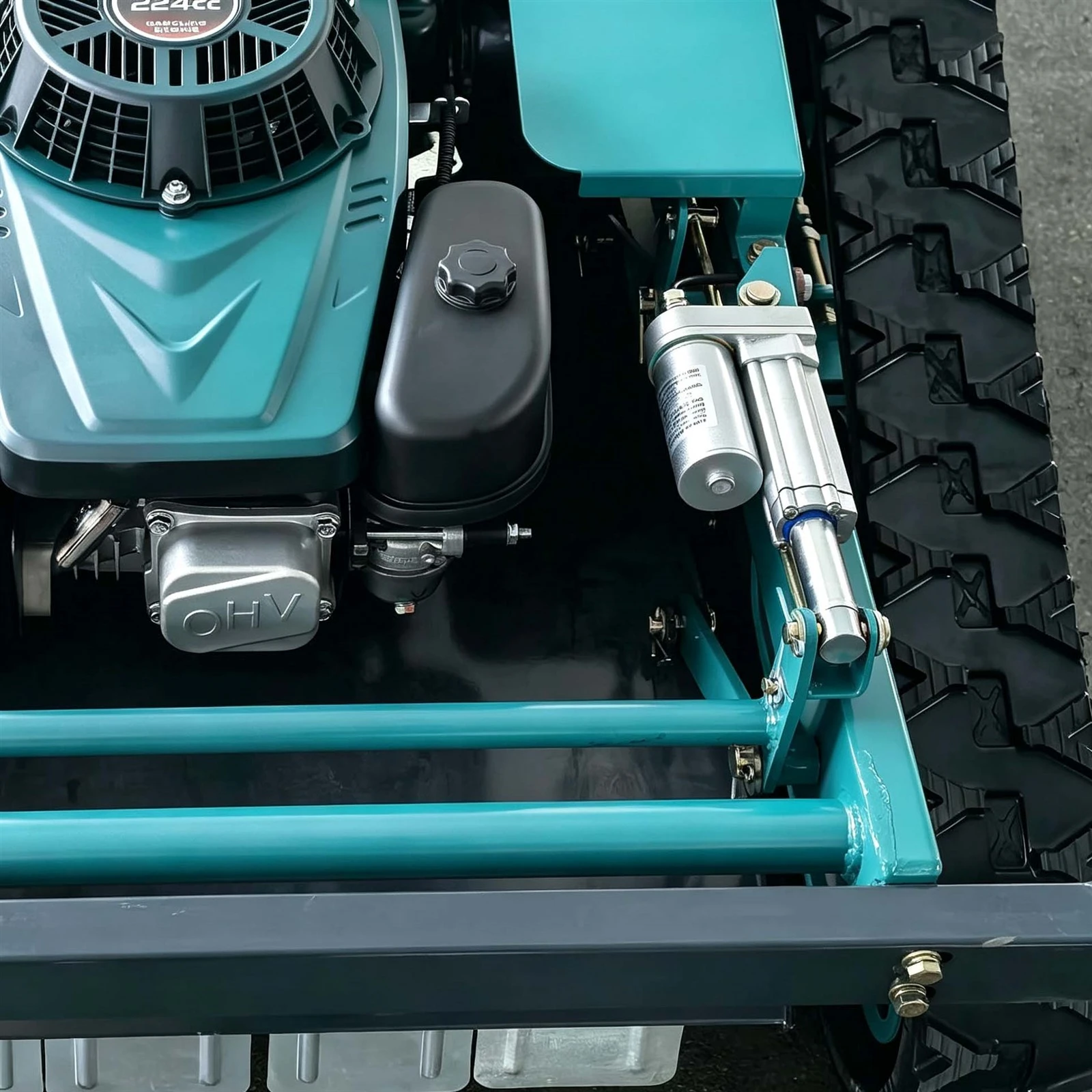

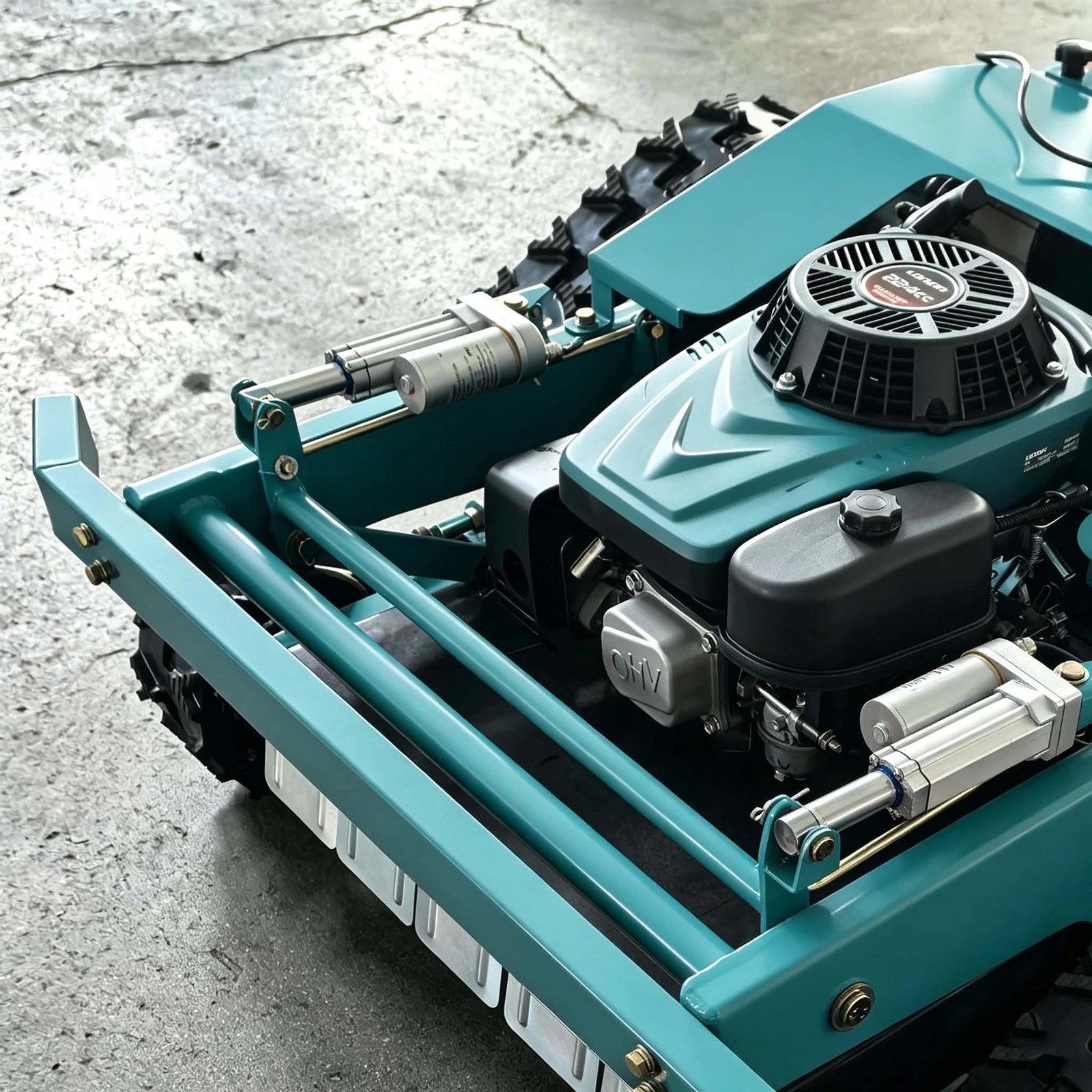

Combination of gasoline power and brushless walking motor: 7.5HP gasoline engine is responsible for lawn mowing power; The 500W brushless motor is responsible for track walking, with independent driving on both sides and flexible turning in place; Two 12V 12Ah batteries supply power to the electronic control system, and the engine self charges during operation, eliminating the need to frequently remove and charge.



product-3000-1338



Automatic parking brake: The car automatically locks when stopped, and it will not slide on a slope.



The safety of stopping work halfway on steep slopes is high. Efficient and labor-saving: Operating at 2200m per hour, equivalent to the workload of 5 workers, significantly reduces labor costs in orchard and slope engineering scenarios. Dual start mode: manual/electric start, remote engine start is an optional option.



Applicable scenarios: orchard weeding, mountain slopes, river slope protection, road slope greening, wasteland reclamation, photovoltaic power plant weeding, estate courtyards.





product-1728-2252



We will update production progress, packaging photos and loading photos to customers in time, so buyers can know order status clearly.

We strictly follow agreed delivery time and try our best to prevent order delays.

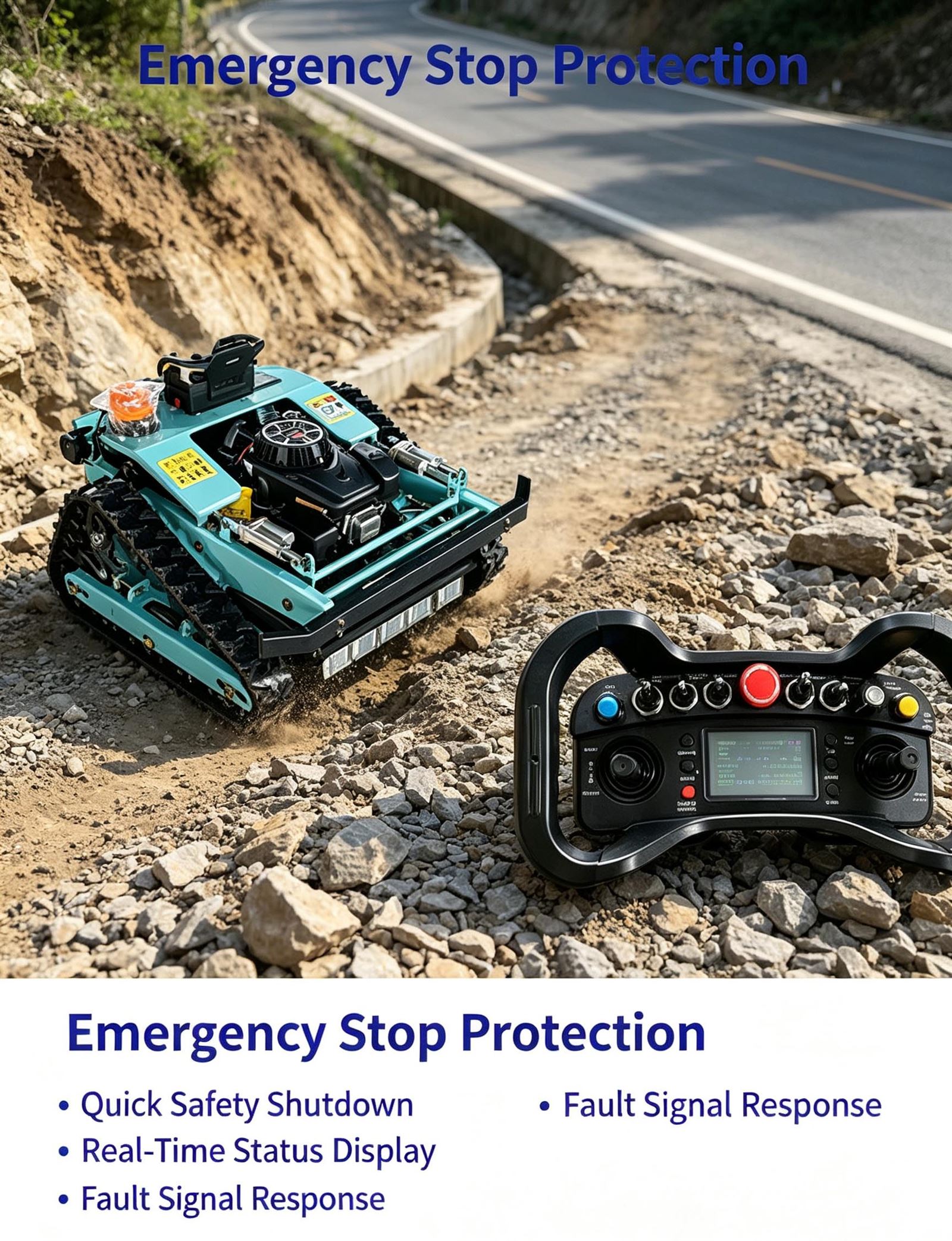

The remote control signal has a range of up to 500 meters. If the frequency is interfered with (----), the remote control will automatically switch to a different frequency in the frequency band (~~~). When a malfunction occurs, the machine will immediately shut down.





Hot Tags: grass mower crawler, China grass mower crawler manufacturers, factory



Parameter Specification
Model Code R55
Adjustable Cutting Height Range 2 - 15 cm
Effective Mowing Width 55 cm (21 inches)
Power Plant Gasoline Engine, Model 1P75FD
Engine Displacement 224 cc
Rated Engine Output 7.5 HP
Ignition / Starting System Recoil Start (Standard) / Electric Start (Optional)
Lubrication Oil Capacity 0.5 L
Fuel Reservoir Capacity 1.4 L
Grass Disposal Method Mulching (Built‑in Chipper)
Cutting Blade Configuration 2 Swing-type Flail Knives
Blade Housing Design Custom Flail-Saped Deck
Parking Brake System Fully Automatic
Max. Brush / Vegetation Cutting Diameter Up to 2 cm (Grass & Light Brush)
Maximum Forward Travel Speed 2 - 5 km/h
Drive Motor Type & Rating 500 W Brushless DC Motor
Travel Steering Mode Dual‑Side Independent Drive (Both Tracks)
Working Efficiency Rate 2200 m² (0.55 Acres) per Hour
Equivalent Manual Labor Output Replaces 5 Workers per Hour
Unit Overall Dimensions (L × W × H) 98 × 90 × 40 cm
Packaging Dimensions (L × W × H) 105 × 95 × 60 cm
Container Loading Capacity (20′ / 40′) 36 Units / 96 Units
Net Machine Weight 160 kg
Battery Configuration 2 × 12 V, 12 Ah
Remote Control Model R1 / KBR
Cutting‑Deck Remote Lift / Lower Automatic
Engine Remote Start Optional Accessory
