Rated power (kW)/ rated speed (r/min) : 250/2200 Engine muscle intake mode: supercharging and intercooling
Engine cylinder number and construction type: 6 cylinder, in-line, water cooled, direct injection, 4 stroke
Air filter type: dry type
Tank capacity (L) : 900
Fuel injection system type: high pressure common rail
Power output and shaft calibration power (KW): ≥ 212.5
Spline number and power output speed (r/min) : 8 keys, 540/1000
Yuchai 260HP Engine, 15 "self-contained double acting clutch, Clutch mechanical assist, TG32+32 Synchronized gearbox, Chassis oil cooling, Deluxe air-conditioned and warm wind cab, Folding water tank, Collins oil filter, Xulun 16.9-28/20.8-38 tires, 4 units hydraulic outputs, Front counterweight 15pcs, 74KGS/pcs, rear counterweight 240KGS, Quick suspension.
Model: LC 2604
NO.1)6-cylinder Weichai turbocharged engine, 16.9-28 front wheels, 20.8-38 rear wheels, 16+16 shuttle synchronizer shift, four-wheel drive, double-acting clutch, hydraulic steering, two-speed PTO, hydraulic clutch, with suspension assembly, strong lift and drop, 6-port multiway valve, front and rear counterweights, short half-axle, air-conditioned cab.
It is equipped with a 24 + 8-speed heavy-duty gearbox and a crawling gear. The speed range is from 0.25 kilometers per hour to 36.7 kilometers per hour. The basic type is equipped with a strong pressure soil feeding position adjustment hoist, with a lifting force greater than 5 tons.
Powerful CS Changsong 4102 turbocharged engine: equipped with a Red 260hp farm tractor diesel engine, this tractor provides ample power for demanding farm tasks and is an ideal choice for users who require high-performance machinery.
Four wheel drive capability: The four-wheel drive system can provide better traction and stability on various terrains, ensuring smooth operation in different farm environments.
Powerful Tractors have an engine horsepower range from 150 to 260HP. These tractors make your work easier and faster.
Red 260hp farm tractor fit specific horsepower needs, ranging from 260 to 440 engine hp, and are available for heavy-duty scraper, large disk, oversized roller, heavy ripper, water tanker, and other implement needs on the construction job site.
Red 260hp farm tractor, high-power, low-speed traction vehicle and power unit mechanically similar to an automobile or truck but designed for use off the road. The two main types are wheeled, which is the earliest form, and continuous track.
* 4 cylinder diesel engine, Powerful and easy to maintain.
* Could choose china famous brand engine, Xichai, YTO, Xinchai etc.
Tractors are used in agriculture, construction, road building, etc., in the form of bulldozers, scrapers, and diggers.
A notable feature of Red 260hp farm tractor in many applications is the power-takeoff accessory, used to operate stationary or drawn machinery and implements.
In order to provide a good view, the cab is equipped with a wide front windshield and side windows, and usually has adjustable rearview mirrors for the driver to clearly observe the situation ahead and around.
Driving comfort: The tractor head is made to be more comfortable for the driver by utilizing ergonomic concepts to guarantee that the operator has a clear view and enough room to work.
Safety: To protect the driver and other nearby staff, the nose's design should prioritize safety, incorporating suitable guardrails, shields, and protective features.
Modern Red 260hp farm tractor headlights, with energy-saving and efficient LED light sources, have adjustable lighting angles and intensity functions, which can be flexibly adjusted according to driving environment and needs, allowing drivers to clearly see the road and obstacles ahead.
The dashboard of the Red 260hp farm tractor displays the operating status, including the speed, speed, oil temperature, water temperature, battery voltage and other parameters to help the driver monitor the working status of the vehicle.
The operation interface assists the driver in operation guidance and parameter setting, such as adjusting the driving mode and modifying the working parameters.

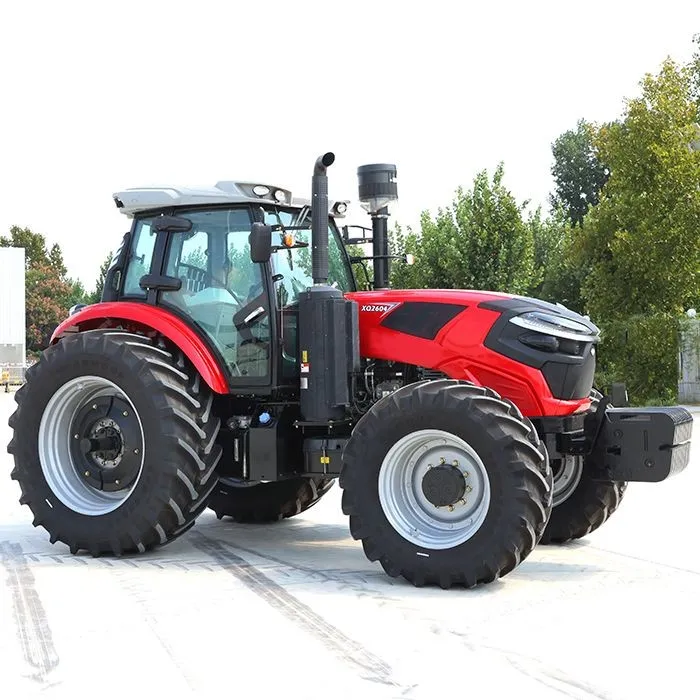

260hp Farm Tractor
|
Adjustment method： |
Height adjustment, floating control |
|
Hydraulic output device： |
3 groups |
|
Power output shaft type： |
Rear independent |
|
Number of power output shaft splines： |
6 (optional 8) |
|
Outer diameter of power output shaft spline (mm)： |
φ 35 (optional: φ 38) |
|
Power output shaft speed (r/min)： |
540/1000 (optional 540/760; 760/1000) |
We have advanced production equipment and a professional R&D group which can make different machines with multiple attachments meeting requirements from various clients. our machines have been exported to Australia, Germany, UK, USA, Russia, Austria, Latvia, Indonesia, Brazil etc.
Standard seat (forward/backward) : 18/6
Maximum tractive force (kN) : ≥89.8
Lift pump displacement (mL/r) : 40
Steering pump flow (L/min) : 20
Maximum lifting force (kN) : ≥60
Length * width x height (mm) :6290*2980*3450
Wheelbase (mm):3390
Front wheel base size: 1870
Rear wheel base (mm):2030
Rear wheel base (mm) : 2030
Minimum ground clearance (mm) : 580 (bottom of traction frame)
Minimum working weight (Kg) : 10890
Tyre model (front/rear) : 600/70R30 710/70R42
Packing & Delivery
--Partial Export Records--
Our company mainly exports to Africa, Southeast Asia, South America and other countries.
And hot sell in Nigeria and Ghana. Zimbabwe,
Tonga, Sudan, Zambia , Tanzania and Mozambique .
--Packaging & Shipping--
Mainly choose Bulk,Flat Rack, Ro-ro and Container.
By bulk ship or roro ship Nude polish with wax
We export vehicles cover all series :
Dump Truck Series
Cargo Truck Series Tractor Series
Special Purpose Vehicles Construction machinery
Passenger Vehicles Series
Agricultural machinery
FAQ
1. Q: What kind of payment do you accept?
A: We accept T/T and L/C; Others payment is negotiable.
Q: What's your minimum order quantity?
A: One unit
3.Q: What's your delivery time?
A: 30 days after received the deposit.
4.Q: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first.
5.Q: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply.
6. Q:why should you buy from us not from other suppliers?
We are trailer manufacturer with more than 15years' experience, and qualified with ISO,CCC, WMI and BV certificate. With professional technician and sales, good after-sale service and prompt response sales team. We exported to more than 58 countries.
Hot Tags: red 260hp farm tractor, China red 260hp farm tractor manufacturers, factory, 4wd 70hp Farm Tractor, tractor tiller hookup, Red 2wd Farm Tractor, tractor rainfed farming, 4wd 90hp Farm Tractor, Blue 90hp Farm Tractor
Parameter
|
Model |
LF2604 |
||
|
Dimension (L×W×H) |
mm |
5800×2800×3350 |
|
|
Min. operating weight |
kg |
8340 |
|
|
Wheelbase |
mm |
3000 |
|
|
Wheel track (front/rear) |
mm |
1720,1820,1940,2040, 2140/1700～2400 |
|
|
Engine |
Model |
/ |
YUCHAI engine 260HP |
|
Type |
/ |
Vertical, water-cooling, four stroke, common rail |
|
|
Qty of cylinders |
cylinder |
6 |
|
|
Rated power |
HP/KW |
260HP 191.1kW |
|
|
Rated speed |
r/min |
2200 |
|
|
Driving |
Clutch |
/ |
Single disc, dry, independent control, dual stage |
|
Gearbox |
/ |
TG32F＋32R |
|
|
Gear shift type |
/ |
Synchronizer |
|
|
Steering |
Steering type |
/ |
Full hydraulic steering |
|
Braking |
Brake type |
/ |
Mechanical control, wet, disc |
|
Walking |
Tire size (front/rear) |
/ |
16.9-28/20.8-38 |
|
Working device |
Suspension device type |
/ |
Rear,three-point suspension |
|
Suspension device category |
/ |
Category Ⅲ |
|
|
Tillage Depth Adjustment |
/ |
Height adjustment and floating control |
|
|
Hydraulic output device |
group |
4 |
|
|
Standard PTO speed |
r/min |
8 Keys or 6 Keys,760/850 or 540/1000 |
|
|
Other |
Rops/cab |
cab |
|
