Widely used in various operations such as field cultivation, raking, land preparation,tillage, sowing, harvesting, transportation, etc.
The power output is stable and can meet the common agricultural operation demands such as plowing, sowing and harvesting.

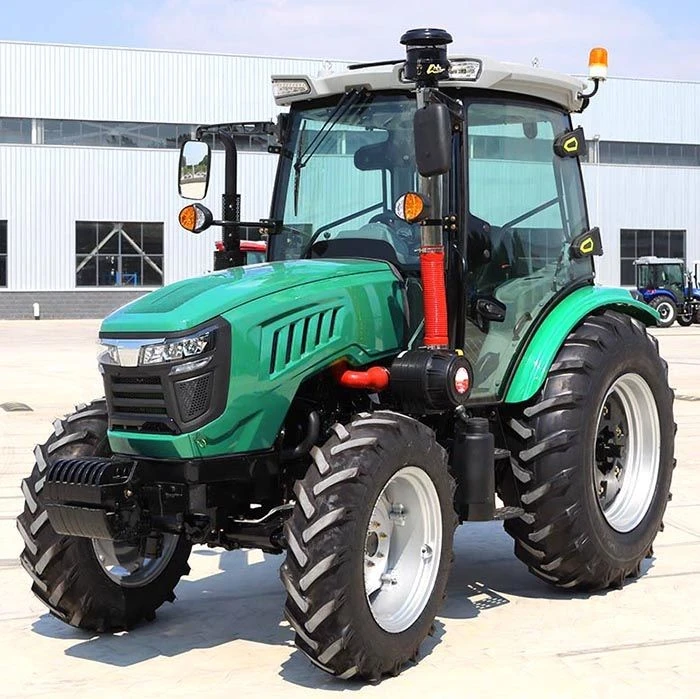

The E604 tractor is equipped with a Yangdong 495 turbocharged engine (optional with a new diesel 498 turbocharged engine), which is powerful and can adapt to different soil conditions and operation intensifies.
hydraulic power
Transmission gear,Used to transmit power, change speed and torque.
output gearbox
Used to control the tractor's movement, steering, and other operations.
Agricultural tractor Suspension device
Connects the main body with the agricultural
tool, and can adjust the working height and angle of the agricultural tool.
Dimensions and weight
Overall machine dimensions: length is generally between 3300-3997 mm, width is between 1355-1784 mm, height is between 1640-2280 mm, and wheelbase is between 1410-2155.6 mm.
Overall machine weight: approximately 2300-2800 kg, such as the minimum use weight of 604 is 2300 kg, and the minimum operating weight of YTO-604 (with safety frame) is 2800 kg.
A versatile tractor, ideal for both tillage and hauling.
Equipped with a three-point rear suspension and hydraulic takeoff.
Featuring a luxurious seat and a 10+2 transmission.
Optional accessories include a front counterweight, and customization services are available, including tire replacement, paint, and color customization.
With a minimum ground clearance of 360 mm, this tractor is compatible with a variety of implements, including rotary tillers, crushers, and balers.
They are equipped with advanced features, including comfortable cabins, intuitive controls, and hydraulic systems for enhanced productivity.
LEADRAY tractors are designed to handle tasks such as plowing, planting, harvesting, and hauling, and they can be customized with a variety of attachments to meet specific farming needs.
Machine has a brand new head design
Having sufficient durability and sturdiness to cope with harsh working environments and conditions, and able to withstand long-term use.
Equipped with a YTO engine, this tractor offers customizable engine emissions, ensuring a reliable and efficient performance.
Domestic renowned engines such as Weichai and Quanchai are equipped with new dry air filters, which have excellent filtering effects and can prevent the wear of the four engine components.
The hydraulic pipelines adopt international 24-degree cone seals, ensuring good pipeline sealing and high reliability.
OPTIONAL COMFORT CAB
The cab is equipped with a wide front windshield and side windows, and usually has adjustable rearview mirrors for the driver to clearly observe the situation ahead and around.
There is a centralized control panel in the cab, including instrument panel, control lever, buttons, etc.
Which facilitates the driver's operation and monitoring of various functions of the tractor, such as speed, fuel level, temperature, etc.
GEAR CONTROL
The left side of a tractor usually has a steering wheel for driving and controlling the tractor's steering.
The gear lever is used for shifting the tractor, controlling the forward and reverse movement of the tractor.
There can also be some control levers on the left side for controlling other functions on the tractor, such as operating or adjusting additional equipment on the tractor.
WEAR-RESISTANT TIRES
Adopting special pattern design and tread rubber material, it can provide good grip, increase the traction and handling performance of the tractor on different surfaces, have high puncture resistance, and can withstand large cargo loads.
Large rubber tire,wear-resistant andskid-resistant,flexible, grip grip, long life.
suspension system
The suspension system control of the tractor can use various suspension organs for lifting, tilting, and other actions.
Used to connect and control various agricultural implements, such as hydraulic tipping plow, hydraulic harrow, etc.
To facilitate the lifting and lowering and other actions of agricultural implements.
Clean or replace the diesel filter (it is recommended to replace it every 500 hours or one operating season), check the atomization effect of the fuel injector and the fuel injection pressure.
Clean or replace the air filter element in a timely manner (for dry filter elements, compressed air can be used to blow them clean from the inside out.
Adjust the valve clearance as required by the manual (such as intake valve clearance 0.25-0.30mm, exhaust valve clearance 0.30-0.35mm) to ensure the sealing of the cylinder and reduce energy loss.
Agricultural machinery can perform plowing, rotary tilling, and harrowing operations, loosening and loosening the soil layer to create favorable conditions for sowing and crop growth.
A plow is used for plowing, while a rotary tiller is used for rotary tilling.
4wd 60hp Farm Tractor can be towed with a seed drill to sow crops such as wheat, corn, and potatoes. It can be used in conjunction with a fertilizer spreader to synchronize sowing and fertilizing, improving efficiency.
It is used for field management operations such as tillage and weeding, soil conditioning, ridging, and irrigation. A cultivator can be used in conjunction with a ridger to remove weeds and improve soil.
4wd 60hp Farm Tractor can also tow potato and garlic harvesters for harvesting, transporting the harvested crops (such as potatoes and garlic) onto a trailer for delivery to a designated location.
Hot Tags: 4wd 60hp farm tractor, China 4wd 60hp farm tractor manufacturers, factory, farming tractor, tractor advertising, tractor vacuum, tractor logging tractor, tractor plow, tractor agricultural machinery
Parameter
|
Model |
LE504 |
LE604 |
|
Horsepower(hp) |
50 |
60 |
|
Type |
Wheel tractor |
|
|
Wheel driver |
4WD |
|
|
Tyre size(f/r) |
6.5-16/11.2-24 |
|
|
Engine brand |
Xinchai/Xichai/YTO |
|
|
PTO speed(r/min) |
6 splines 540/720 |
|
|
Front wheel tread(mm) |
960,1000,1100,1200 |
|
|
Rear wheel tread(mm) |
960-1300(steplessly adjustable) |
|
|
F/R counterweight(kg) |
80/92 |
|
|
Gear shifts |
8F+2R |
|
|
Max speed (km/h) |
39.81 |
|
|
Mini clearance (mm) |
320 |
|
|
Max traction(kn) |
13.98 |
15.4 |
|
Max lifting force(kn) |
8.28 |
9.9 |
|
Wheel base (mm) |
1860 |
1960 |
|
Weight(kg ) |
1630 |
1860 |
|
Working dimensions(l*w*h)(mm) |
3500*1530*2460 |
3570*1530*2460 |
|
Remarks: ◎ The chassis is suitable for 50-70 horsepower. ◎ 8+2 gears, reinforced engine power output shaft, more stable power transmission, optional 8+8 shuttle shift, one lever switching forward and backward, easy and faster operation. ◎ High strength rear axle, half tube shell reinforced and widened, more recognized by users. ◎ Increasing the brake under high load results in better and more stable braking performance. ◎ Dual fuel tanks, large fuel capacity, long operating time. ◎ Domestic renowned engines with large reserve torque and stronger power. ◎ Gear shifting with engagement sleeve for more flexible shifting operation. |
||
