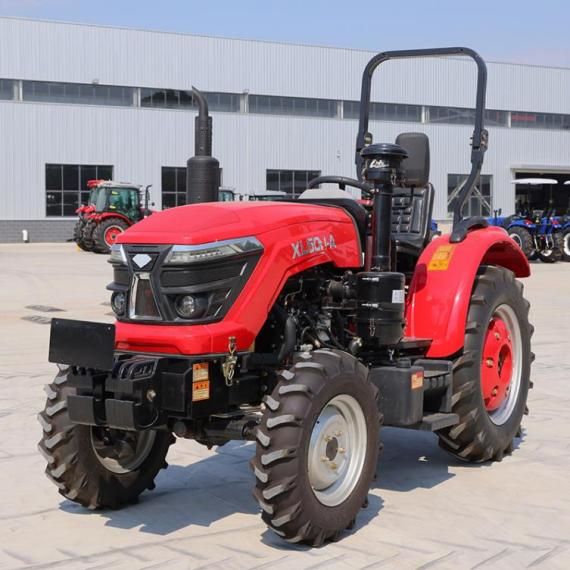

2wd 50hp Farm Tractor

2WD 50HP Wheeled Mini Farm Fahr Tractor

Equipped with a Changfa 490 supercharged engine, it offers low fuel consumption, fast acceleration, and powerful power. It features three selectable operating modes: fuel-efficient, standard, and powerful.

It also features a large 46-liter fuel tank, ensuring long-term continuous operation.

The 8+8-speed transmission, with both the main and auxiliary transmissions and the shuttle transmission utilizing clutch sleeves for shifting, makes shifting easy and effortless.

The vehicle boasts a maximum speed of 37 km/h, making it ideal for field transport.



The integral, fully sealed front axle provides excellent sealing, making it suitable for paddy field operations. With a ground clearance of 360 mm, it boasts a high lift height and excellent maneuverability.



The rear wheels are continuously adjustable, with a minimum wheelbase of 0.96 meters, meeting diverse agricultural needs.

The vehicle features a flat floor design, providing spacious and comfortable riding space.



The shuttle-style shift mechanism allows for quick forward and reverse shifting with a single click.

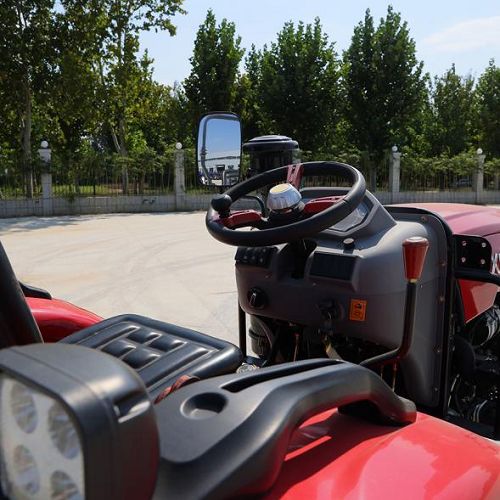

The side-shift layout reduces operating effort, making operation comfortable and convenient, with a turning radius of only 3.6 meters, ensuring agile maneuverability.

Streamlined appearance design, beautiful shape, good working field of vision; the overall size of the machine is 3510×1510×2310mmwith a short wheelbase, the whole machine is compact and flexible, and the turning radius is small.

Farm Tractor adopts TS10+2-speed gearbox and 8+4 clutch sleeve shift gearbox, which is easy and flexible to operate and has an anti-shifting structure to automatically prevent shifting.

Wet, disc, self-energizing brakes provide smooth braking; the final drive adopts a planetary gear reduction structure with compact structure, large transmission ratio, uniform load-bearing and long service life.

The compact structure not only facilitates flexible operation in various terrains and working environments but is also more convenient for transportation and storage.

The wheelbase is 1930mm, the front wheel track is 1200mm, the rear wheel track is 1150-1210mm, the machine weight is 1997kg, and the structural design is reasonable, taking into account the stability and flexibility of operation.



Determine the operating environment and working requirements of the tractor engine, including power requirements, fuel types, environmental adaptability, etc.



According to the demand analysis, the preliminary conceptual design of the engine is carried out to determine the basic parameters and structural layout of the engine. This includes selecting the appropriate combustion mode, displacement, number of cylinders, cylinder diameter and stroke.



On the basis of the conceptual design, the detailed design and calculation of the engine. This includes the design of key components such as cylinder heads, connecting rods, crankshafts, valve mechanisms, fuel systems, etc. During the design process, factors such as power output, fuel efficiency, reliability and emission control need to be considered.



According to the detailed design, the prototype of the engine is manufactured for experimental verification and performance testing. This includes manufacturing parts, assembling engines, conducting test runs and commissioning.



Various tests are performed on the engine, including stability, durability, fuel economy, performance and emissions testing. According to the test results, the design is adjusted and improved.

Complex components such as the four-wheel drive transfer case and the central transmission shaft are eliminated, reducing the mechanical failure rate by 40%. It is especially suitable for farmers who lack professional maintenance capabilities.


There is no need to regularly replace the four-wheel drive differential oil, transfer case oil, etc.

The maintenance cycle can be extended to once every 500 hours, reducing the annual maintenance working hours by approximately 10 hours.

The accessories are readily available and the maintenance response is fast
Core components such as engines (such as Changchai ZN390, Laidong KM385) and gearboxes have a high rate of universality with small and medium-sized agricultural machinery (such as tricycles, harvesters), and can be purchased from county-level agricultural machinery stores.

The waiting time for spare parts is no more than 24 hours.
The open body design allows users to complete basic maintenance such as oil inspection and belt replacement by themselves, reducing reliance on professional after-sales service.

visit Farm Tractor factories



Attention is paid to quality control and testing to ensure that each tractor meets high standards.



Factory strength

Excellent tractor factories focus on research and development and innovation, and constantly improve product design and technology to adapt to the market demand and the changing requirements of users. We have a dedicated R&D team and laboratory for the design and testing of new products.



Finished product Storage area

In a specific area of the warehouse, tractors that have been assembled and tested are stored. These finished tractors are usually arranged by model and specification to facilitate shipment and delivery to customers.



Process and technology of pulling mechanism

You can see the assembly line of the tractor, the welding shop, the painting shop and other different manufacturing links. You can learn about the initial stages of tractor production, such as the processing and manufacturing of parts, as well as the final assembly and quality control process.



warehouse of material

In the warehouse of the tractor factory, you can see tractor parts, parts and finished products of different models and specifications. Understand the approach to material management, inventory control and logistics management.

We implement a strict quality control system to meet customer needs. Our tractors offer excellent value for money and guaranteed quality standards. Furthermore, we have developed a distinctive corporate culture guided by clear core values. We sincerely look forward to establishing a successful partnership with you.
