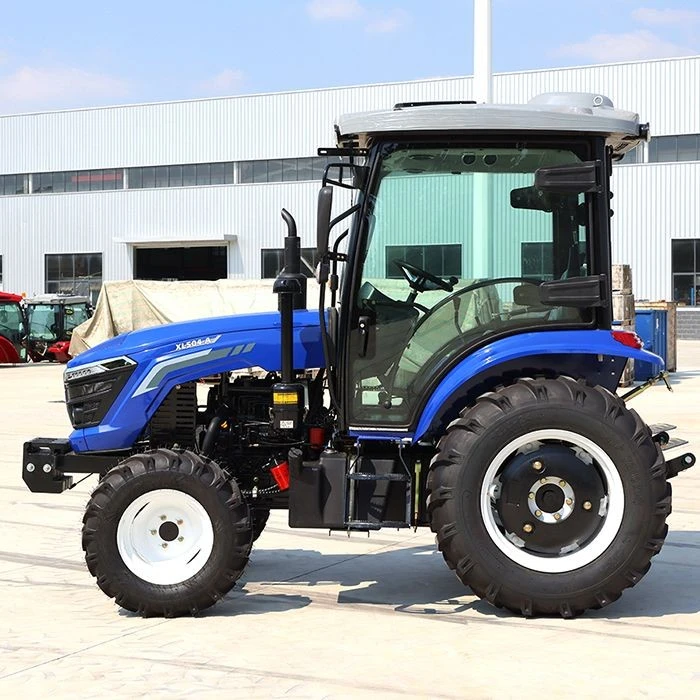

50hp Compact Small Mini Farm Garden Tractor with Cabin
This compact mini farm tractor is designed for light-duty operations like agriculture and transportation, featuring a Chinese famous brand diesel engine for cost-effectiveness, high fuel efficiency, and low maintenance.
Equipped with renowned four-cylinder high-pressure common rail engine, meeting the national IV emission standards, with low fuel consumption and large torque reserve.
It includes an 8F+2R gearbox, hydraulic power steering for reduced labor intensity, and customizable tire options to meet various working conditions.
Multiple VP pump engines are also available to meet different customer needs.
The seats have been upgraded to the third-generation shock-absorbing seats, which can adjust the shock absorption damping ratio according to body weight, and the backrest is raised, providing strong coverage.
The cab adopts sealed, shock-absorbing and noise-reducing design, with a large space and wide field of vision. The overall floor is flat, and the operation layout conforms to ergonomics.
Optional synchronizer gear shifting, which is a strong and reliable chassis among domestic tractors of the same horsepower.
There are 8+8 shuttle gear shifting or 12+12 shuttle gear shifting options available, with many gears.
Optional configurations include cab, air conditioning, high ground clearance, etc., and can be paired with various specifications of dry field tires and water field tires, suitable for both water and land operations.
The head design meets various functional requirements and provides sufficient space to accommodate various accessories and tools, making the 4wd 50hp farm tractor more efficient and multifunctional in agriculture and other fields.
The fuel filter is very important for the normal operation of tractors and the protection of the fuel system. It can effectively prevent impurities and pollutants from affecting the system, maintain the purity of fuel, and improve the reliability and economy of tractors.
The cab of a 4wd 50hp farm tractor consists of a protective cover or cockpit, used to protect the driver from external environmental influences such as wind, rain, dust, etc.
The 4wd 50hp farm tractor transmits a turn signal to the front wheels through the steering mechanism, thereby changing the direction of travel of the tractor.
Provide better handling flexibility and stability.
Equipped with various engineering accessories and devices for land reclamation, construction, and engineering operations, such as bulldozer blades, tipping buckets, etc., to improve operational efficiency and adapt to different terrains and operating conditions.

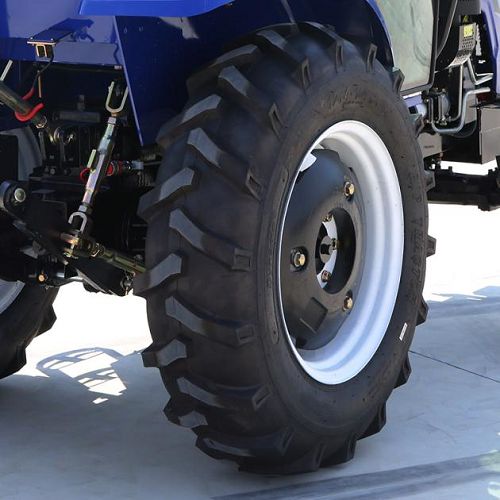

Special pattern design and tread material are used to provide good grip, giving it excellent traction and control performance on wet or uneven surfaces. Tractor can automatically remove soil and debris adhering to the tire surface during agricultural operations, maintaining good traction.
Custom Tractor Services Available:
1. Paint - Painted or unpainted available.
2. Tires - Any type and size you prefer.
3. Counterweight - Adjustable to customer specifications.
4. Lubricant - Always replace with fresh lubricant and filter before loading.
5. Modifications - Including air conditioning, cab, and other customizations.
FAQ
1.How can we guarantee quality?
Always final complete inspection before loading. Provide the testing products video and loading video.
2.What can you buy from us?
Farm tractors, Farm implements, Farm equipment, Spare parts, Etc.
3.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW, Etc.
Accepted Payment Currency:USD, POUNDS, Euros, Etc.
Accepted Payment Type: T/T,L/C,Etc.
4.Warranty Regulation of Product Quality
Depends on products and our contract.
Hot Tags: 4wd 50hp farm tractor, China 4wd 50hp farm tractor manufacturers, factory, tractor serviceability, tractor no till farming, tractor peanut harvester attachment, farm work tractor, tractor rotary cutter attachment, 260hp Farm Tractor
Parameter
|
Model |
LE504 |
LE604 |
|
Horsepower(hp) |
50 |
60 |
|
Type |
Wheel tractor |
|
|
Wheel driver |
4WD |
|
|
Tyre size(f/r) |
6.5-16/11.2-24 |
|
|
Engine brand |
Xinchai/Xichai/YTO |
|
|
PTO speed(r/min) |
6 splines 540/720 |
|
|
Front wheel tread(mm) |
960,1000,1100,1200 |
|
|
Rear wheel tread(mm) |
960-1300(steplessly adjustable) |
|
|
F/R counterweight(kg) |
80/92 |
|
|
Gear shifts |
8F+2R |
|
|
Max speed (km/h) |
39.81 |
|
|
Mini clearance (mm) |
320 |
|
|
Max traction(kn) |
13.98 |
15.4 |
|
Max lifting force(kn) |
8.28 |
9.9 |
|
Wheel base (mm) |
1860 |
1960 |
|
Weight(kg ) |
1630 |
1860 |
|
Working dimensions(l*w*h)(mm) |
3500*1530*2460 |
3570*1530*2460 |
