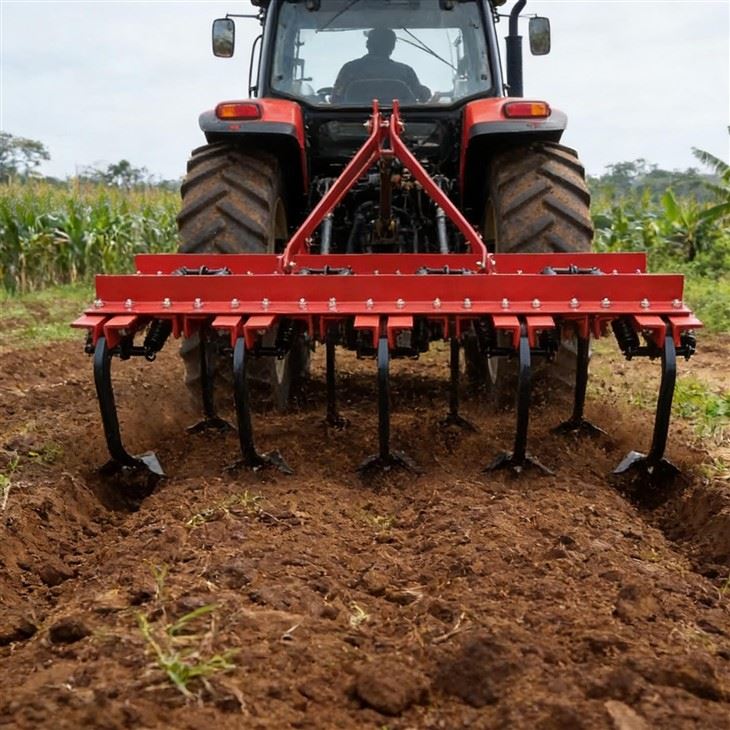

LEADRAY Spring Tine Cultivator: Ultimate Soil Cultivation Tool for Global Farms
Why LEADRAY Spring Tine Cultivator Stands Out?
Engineered for the tough farming conditions of Africa, Southeast Asia, and Latin America, our spring tine cultivator redefines efficiency in intertillage, weeding, and soil loosening.
Built with a heavy-duty dual-spring anti-obstacle system and fully adjustable working settings, it's the go-to solution for corn, soybean, cotton, and vegetable farms-whether you're a smallholder or a commercial grower.
Core Features & Competitive Advantages

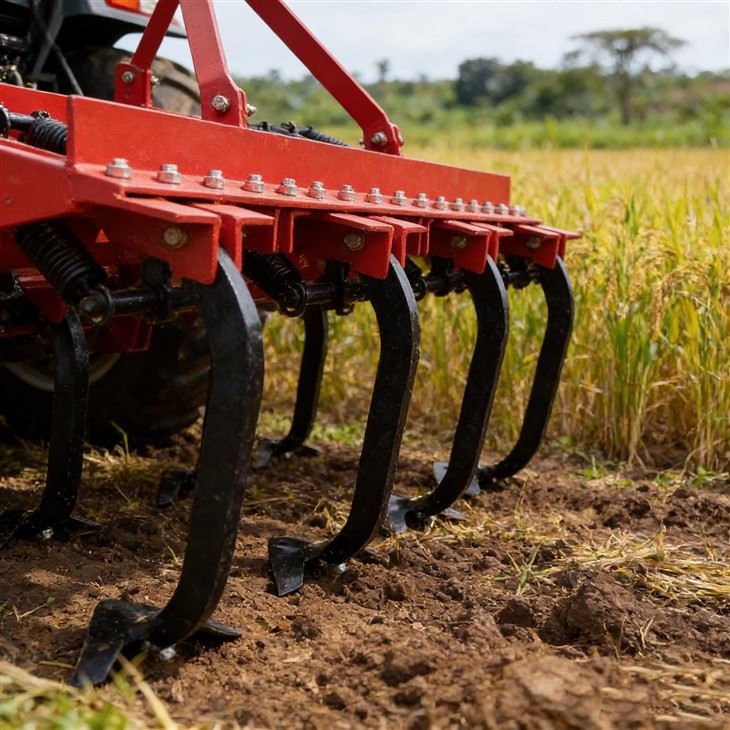

Dual-Spring Obstacle Avoidance SystemHigh-tensile carbon steel springs allow tines to bounce up instantly when hitting rocks, tree roots, or clods. This unique design eliminates tine breakage and frame damage, making it perfect for rocky, uneven farmland common in sub-Saharan Africa and Southeast Asia.
Customizable Working Parameters
Working Depth: 5–25cm adjustable for shallow weeding or deep soil aeration.
Row Spacing: 20–60cm tunable to match all row crop planting patterns.
Tine Quantity: 8/10/12 tines optional, with working widths from 1.2m to 2.4m.
Premium Durable Materials
Tines: Forged high-carbon manganese steel (HRC 50–55) for extreme wear resistance.
Frame: 6mm thick steel plate with powder-coated red finish, rust-proof and corrosion-resistant for 10+ years of use.
Universal Tractor CompatibilityStandard 3-point hitch (CAT I/II) connects seamlessly to 25–100hp tractors-no extra modifications required. Ideal for both compact tractors used by small farmers and large farm tractors.
Time & Labor SavingCovers up to 2.4m per pass, cutting manual weeding time by 70%. Boosts field work efficiency while reducing labor costs, a game-changer for labor-short farms.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | High-carbon manganese steel (tines) + steel plate (frame) |
| Working Width | 1.2m/1.5m/1.8m/2.4m (custom) |
| Tine Count | 8/10/12 (optional) |
| Working Depth | 5–25cm |
| Tractor HP Range | 25–100hp |
| Hitch Type | 3-point hitch (CAT I/II) |
| Net Weight | 280kg (1.2m) – 450kg (2.4m) |
| Color | Red (custom color available) |
| Warranty | 2-year frame warranty, 1-year tine warranty |
Application Scenarios
Row Crop Intertillage: Corn, soybean, cotton fields (staple crops in Africa/SE Asia).
Orchard Management: Loosen soil and remove weeds around fruit trees.
Vegetable Farming: Perfect for tomato, cabbage, and pepper field cultivation.
Dry Land Improvement: Break up compacted soil to enhance water and nutrient absorption.
Package Includes
1 x LEADRAY Spring Tine Cultivator (knocked down/assembled optional).
1 x Multilingual User Manual (English/French/Spanish/Arabic).
2 x Replacement Tines (free bonus).
1 x Lubrication Kit for maintenance.
Customer Support
Customization: Bulk orders can be customized for tine quantity, working width, and color. Contact us for a personalized quote!
After-Sales: Our global service team offers technical support via email/WhatsApp 24/7. Spare parts are available for fast delivery to Africa, Asia, and Latin America.
Installation: Video tutorials provided for self-installation; professional installation service available in key regions.
Hot Tags: spring tine cultivator, China spring tine cultivator manufacturers, factory
| Model | 3ZT-1.0 | 3ZT-1.4 | 3ZT-1.8 | 3ZT-2.2 | 3ZT-2.5 | 3ZT-3.0 |
| Working Width (mm) | 1000 | 1400 | 1800 | 2000 | 2500 | 3000 |
| Working Depth (mm) | 100 -250 | |||||
| No. of Tines | 5 | 7 | 9 | 11 | 13 | 15 |
| Total Weight (kg) | 260 | 320 | 400 | 490 | 550 | 640 |
| Tractor Power (hp) | 20 | 25-30 | 50 | 70 | 80 | 90 |
| Linkage | CATⅠ3-point Mounted | CATⅡ 3-point Mounted | ||||
| ltems Optional | Triangle plow tine | |||||
