3QL series ridger plough is mainly suitable for ridging after the tillage in the field for potato, beans, vegetables etc. it is convenient to adjust the angle, the high ridge and the ridging rows. It can be easily spaced (widened or narrowed) as per the crop requirement. The wings angle can be changed as per requirement.
Advantages:

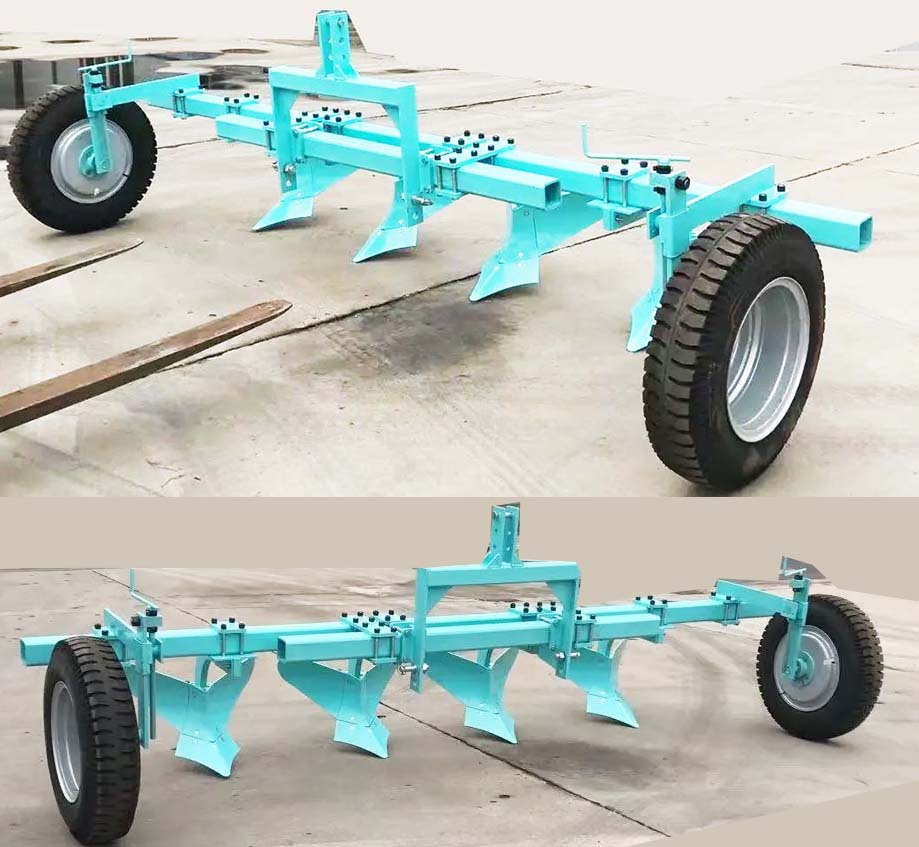

*This ridging plough have own rubber tire to move easily.
*The position of mounted hole could be selectable for the ridging height.
*The plow tip could be adjustable.
*Can adjust ridging spacing.
*Surface treatment: derusting with large shot blast machine, to change welding stress.
*Surface spray coating: antirusting paint, finishing paint, stoving varnish.
*The process of welding: carbon dioxide jig welding.
*This ridging plough have own rubber tire to move easily.
*The position of mounted hole could be selectable for the ridging height.
*The plow tip could be adjustable.
Agricultural Machine 3-point Mounted
1. Used for ridging in the field of potatoes, beans, vegetables after tillage
2. Convenient adjustment in ridging spacing, ridging height, ridgring rows and angles
The working principle of a ridging plow: A ridging plow is pulled by a tractor. During operation, the plow body is inserted into the soil.
As the tractor advances, the plow body turns the soil from both sides to the center, forming a ridge, while the turned soil forms a furrow in the area.
During this process, a depth-gating wheel controls the ridge depth, and an adjustment mechanism adjusts various ridging parameters as needed.
Some ridging plows also feature ridging scrapers and ridge surface scrapers, which work in conjunction with compaction rollers to form the ridge into a trapezoidal shape and complete the ridge compaction process.
|
Ridge Plow Type |
3QL-1 |
3QL-2 |
3QL-3 |
3QL-4 |
3QL-5 |
|
Working width(mm) |
800 |
1600 |
2500 |
3200 |
3900 |
|
Height of ridging(mm) |
700-900 |
||||
|
Weight(kg) |
200-250 |
||||
|
Linkage |
240 |
280 |
340 |
380 |
450 |
|
Matched power |
25 |
35 |
40 |
60 |
80 |
3-point Linkage Farm Tractor Plough Ditcher Machine,furrower 3QL
Agricultural Cultivator with Blades for Inter-Row Soil Management
Moldboard ridging plow
Moldboard ridging plow: It has the characteristics of simple structure, durability, good soil penetration, etc. It can turn nutrients from deep soil to the surface and is suitable for various soil conditions.
However, the ridging speed is relatively slow and the labor intensity is high.
Disc ridging plows use
Disc ridging plows use a disc as the working component, which rolls through the soil, breaking it up and throwing it to the sides to form ridges.
They offer high efficiency and resistance to clogging, making them suitable for use in sticky or weedy soils. However, they achieve relatively shallow tillage depths .
Agricultural furrowing and ridging machinery Ridgers Furrowing machines
Ridge plow agricultural tool
Suspension: Connects the tractor to the ridging plow, transferring the tractor's traction to the ridging plow, allowing it to move with the tractor.
Frame: The main structure of the ridging plow, supporting and securing other components to ensure the plow's stability during operation.
Plow body: The core working component of the ridging plow. Its shape and angle are designed to turn the soil and deposit it into ridges. Common plow body shapes include plowshare and disc types.
Detailed introduction of ridging plow
Depth-gauging wheels: Attached to the sides or bottom of the ridging plow, they control the depth of the ridging and ensure consistent ridging.
Pusher rollers: Some ridging plows are equipped with pusher rollers to compact the ridge surface after it is formed, enhancing moisture retention and seed placement.
Adjustment mechanism: Adjusts parameters such as ridging width, height, and angle to suit different crops and soil conditions.
why choose Ridge plow
Ridge Plow Applications
Crop Planting: Widely used in the cultivation of tuber crops, beans, and vegetables, such as potatoes, sweet potatoes, soybeans, peanuts, tomatoes, and cucumbers, it provides a good ridged environment for their growth, facilitating drainage, ventilation, sunlight, and field management.
Soil Improvement: Ridge plowing improves soil structure, increases aeration and water permeability, promotes soil microbial activity and nutrient decomposition and conversion, and promotes the growth and development of crop roots. Ridge plowing also prevents soil erosion and maintains soil fertility.
Topography: Suitable for fields in a variety of terrains, including plains, hills, and mountains. For fields with steep slopes, ridge plows can create ridges along contour lines, helping to conserve water and soil. In low-lying, waterlogged areas, ridge plowing improves drainage and reduces the damage caused by waterlogging to crops.
Founded in 2006, our company specializes in agricultural machinery manufacturing. Our technical manager has 30 years of experience and can manufacture according to your drawings. We have independent import and export rights and are ISO9001:2000 certified.
We manufacture parts for various types of harrows, plows, lawn mowers, and more. If you have a drawing, we can produce it to your specifications. Our parts range is so extensive and varied that it's impossible to show them all in a single image. If you require any parts, please contact me or email me, and I'll provide the specifications for all parts.
* Professional staff provide comprehensive communication and support throughout the entire process.
* Strict quality inspection of every component and every process before export.
* Comprehensive technical guidance and after-sales service.
* We can provide the model you require based on your drawings or samples.
* Providing the best products and comprehensive service is our unwavering commitment.
Our main products include disc plows, disc harrows, moldboard plows, rotary tillers, rotary stubble cultivators, wheat planters, corn planters, single disc seeders, cultivators, ridgers, wheat and rice loosening machines, harvesters, wheat and corn threshers, tractor trailers, mowers, gearboxes, plow discs, tillage chisels and points, and hand tools.
We can also provide other products based on customer drawings and samples. We are committed to satisfying our customers' needs with the highest quality products and services.
Our products are primarily exported to over 50 countries and regions, including South America, Africa, Russia, and Southeast Asia. Our products have earned unanimous praise from customers both at home and abroad.
We sincerely welcome your inquiries, visits, and cooperation.
FAQ
1. Question: Are you a manufacturer?
Yes, we are a manufacturer located in Shandong. We have obtained ISO and CE certifications, and our products have been exported to over 20 countries.
2. Question: Why did you choose LEADRAY?
Answer: With two factories and over 100 workers, we only produce high-quality products. In the past 10 years, there has been a 2-year warranty and a 1% repair rate, which is both cost-effective and earns a good reputation.
3. Question: Can you produce machines that can be customized?
Answer: Yes, we can provide customized machines according to your requirements. We have 8 senior engineers who can design and provide higher configurations.
4. Question: How is your after-sales service.
Answer: We have 3 after-sales services and can provide 24-hour technical support through phone and email.
5. Question: What is your delivery time?
Answer: Normal products usually take 7-10 days, while customization takes 15-25 days.
6. Question: Is it convenient to visit your factory? How can I get there?
We warmly welcome you to visit our factory. We will pick you up when you arrive.
