1MP Moldboard plough series is connected to a four-wheel tractor suspension and mainly used for plowing surface soil, supplementing nutrients to the surface soil, and also has weed control function.

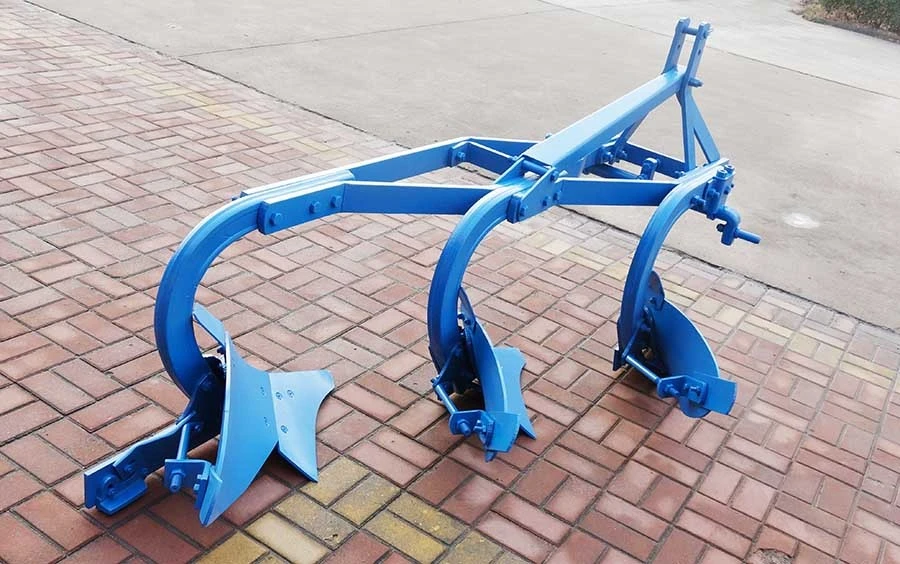

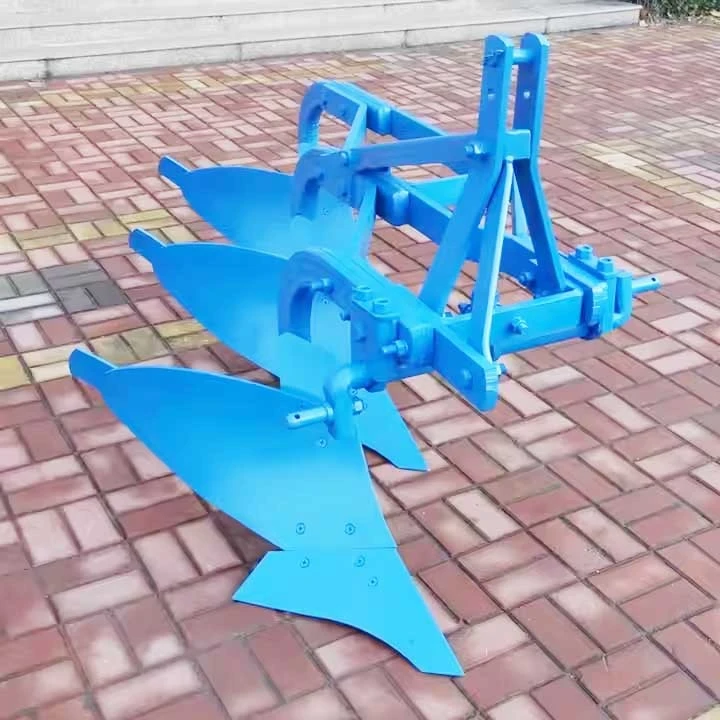

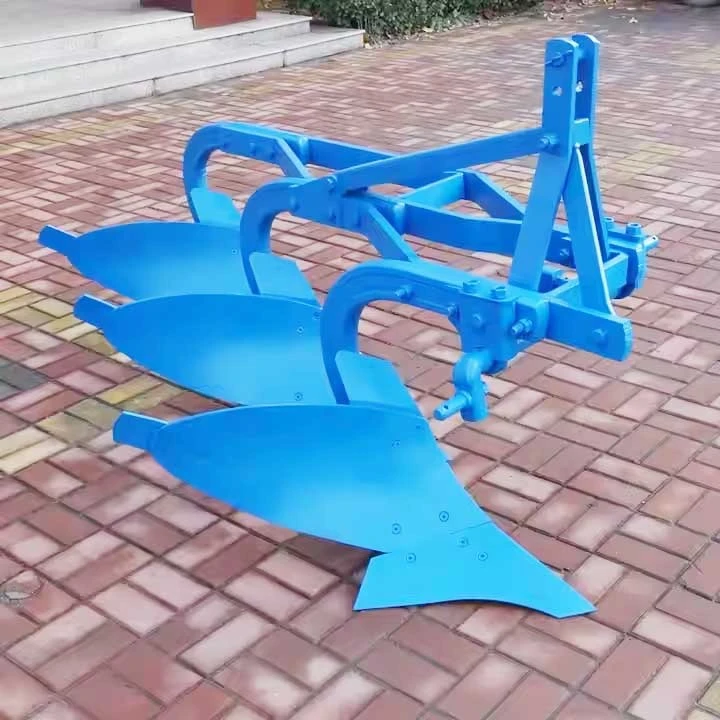

Farm Machinery 45-70 Horsepower Tractor Mounted 3 Bottoms Full Steel Share Plough
Main plow body
The thick steel plate supporting the profile is wear-resistant and durable, with a long service life and stable performance.
The manganese steel blade has a flat surface after tillage and has good soil covering performance and crushing ability.
Main plow body: It is the core component of the plow, which consists of plowshare, plow wall, plow side plate, plow support and plow column. Its main function is to cut, crush and turn over soil and weeds. Among them, the plowshare can be divided into triangular plowshare, trapezoidal plowshare, chisel plowshare, etc. according to the structure; the plow wall can be divided into integral type, combined type and bar type. The plow wall and plowshare form the plow body curved surface. According to the movement characteristics of the soil when the plow body is plowing, it can be divided into three categories: rolling type, swaying type and rolling swaying type. The rolling type can be divided into soil crushing type, general type and soil turning type.
According to the tillage width requirements
Choose according to the tillage depth requirements. Generally speaking, when the tillage depth is large, it is necessary to choose a moldboard plow with high plow strength and a large tillage depth adjustment range.
For every 5 cm increase in tillage depth, the tillage resistance increases by about 15%.
If deep tillage is required, a moldboard plow with a core shovel can be selected.
According to the tillage width requirements, if the plot area is large and a larger tillage width is required to improve work efficiency, a multi-furrow plow can be selected; if the plot is small or irregular in shape, a single or double-furrow plow can be selected. In addition, if there is a need to bury surface stubble, weeds, etc., a moldboard plow with good soil turning performance can be selected. The curved surface design of the plow body can turn the soil thoroughly.
| Model | 1MP-235T | 1MP-335T | 1MP-435T | 1MP-535T |
| Working Width (mm) | 700 | 1050 | 1400 | 1750 |
| Working Depth (mm) | 230 -300 | |||
| No. of Bodies | 2 | 3 | 4 | 5 |
| Total Weight (kg) | 220 | 340 | 490 | 610 |
| Tractor Power (hp) | 50 | 65 | 80 | 100 |
| Linkage | CATⅠ3-point Mounted | |||
Farm Machines Plough Moldboard Plough Soil Ploughing Machine
This series of plows are connected to the four-wheel tractor suspension system and are mainly used to till the surface soil, add nutrients to the surface soil, and also have weeding functions.
work of a moldboard plow
The work of a moldboard plow requires the power of a tractor, and the appropriate moldboard plow should be selected according to the power of the tractor. Generally speaking, the more powerful the tractor, the more moldboard plows it can match and the larger the tillage width.
01
Coulter
It is installed in front of the main plow body and the small front plow. It is divided into straight plowshare and round plowshare. Its function is to vertically cut the soil and weed residues, reduce resistance, reduce the wear of the main plow body shank blade, ensure the neatness of the furrow wall, and improve the covering quality.
02
Subsoil shove
also known as deep loosening shovel, installed at the rear and lower part of the main plow body, divided into single-wing shovel and double-wing shovel. Its function is to loosen the subsoil below the plow layer to achieve upward turning and downward loosening.
03
plow body
If there are many stones or hard soil layers in the soil, you can choose a moldboard plow with protective devices (such as safety bolts) to avoid damage to the plow body when encountering obstacles.
04
Moldboard plough Advantage:
Good efficiency
Simple adjustment
Wide scope of application
The width of plow share my be 35cm
Material of plow tip is 65Mn steel
The working depth can be adjusted by adjusting the stabilized rod.
As a key enterprise in my country that produces large hydraulic reversible plows, it integrates R&D, production, sales and after-sales service, and has more than 20 years of experience in producing various agricultural machinery.
Its main product, hydraulic reversible plows, have passed the appraisal of the national agricultural machinery promotion department and won many patents and scientific and technological progress awards. Its hydraulic amplitude modulation deep plow is equipped with an imported hydraulic system, which is reliable in operation. The hydraulic parts and soil-entering parts are all imported.
A small plowshare is installed behind the main plowshare, and two amplitude modulation oil cylinders are installed, which can be used to adjust the tillage width and swing the reversible plow position for the edge of the cultivated land.
The main agricultural implements we produce include complete machines such as disc harrows, disc plows, ridgers, cultivators, plows, seed drills, trailers, rotary tillers, mowers, and other complete machines, as well as agricultural machinery accessories such as harrows, plows, loosening blades, square shafts, harrow groups, harrow teeth, loosening blades, box cutters, etc.
We have accumulated rich experience in the production of harrow blades, and our products have won wide recognition from customers with their exquisite craftsmanship and reliable quality.
Moldboard plough Classification
*According to the traction power: it can be divided into animal-powered plows and machine-powered plows. Machine-powered plows can be divided into traction plows, suspension plows and semi-suspension plows according to different attachment methods.
*According to the purpose: there are general-purpose plows, deep plows, land reclamation plows, paddy field plows, mountain plows, orchard plows, etc.
*According to the structure: including bidirectional plows, amplitude modulation plows, etc.
*According to the number of working plow bodies: there are single-furrow plows, double-furrow plows, three-furrow plows, etc.
*According to the weight of the plow and the type of soil it is suitable for: it can be divided into heavy plows, medium-duty plows and light plows.
