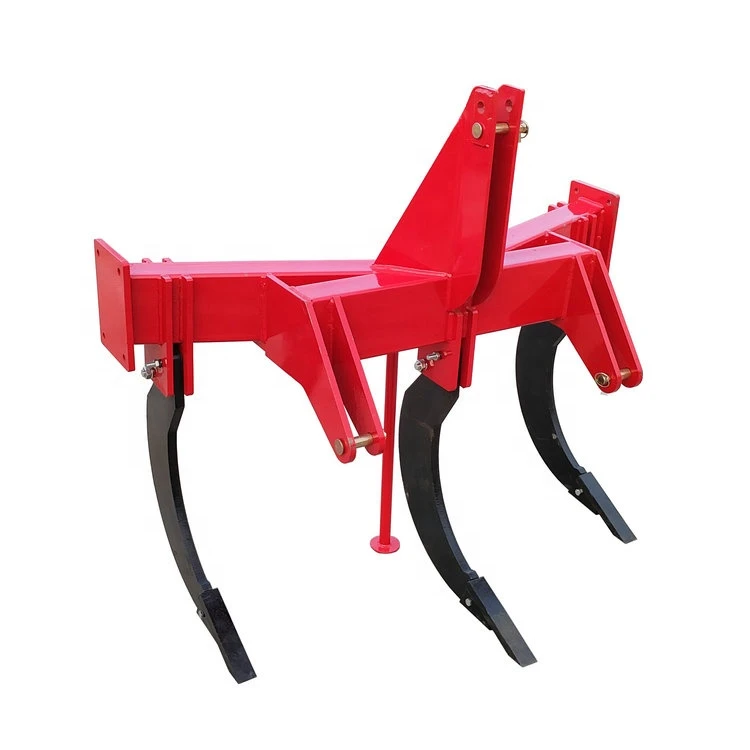

Subsoiler 3S Deep Tiller Tractor Ripper Subsoiler Plough of Agricultural
The deep loosening machine is suitable for different soil types and soils covered with a large amount of straw. Flip plow has functions such as breaking the plow bottom, restoring soil surface structure, improving soil water storage and retention capacity, removing some weeds, reducing pests and diseases, leveling the surface, and improving agricultural mechanization operation standards.
The 3S series subsoiler is a new - type product designed according to the requirements of foreign customers.
Flip plow is suitable for deep - ploughing operations of crops such as potatoes, soybeans, and cotton. It can break up hard soil, level the soil, maintain soil moisture, and remove residues. It has the characteristics of adjustable depth, wide application range, and easy operation.
Product parameter
|
Model |
Unit |
3S-1 |
3S-2 |
3S-3 |
3S-5 |
|
Weight |
kg |
95 |
130 |
180 |
300 |
|
Working width |
mm |
|
770 |
1300 |
2580 |
|
Working depth |
mm |
300-450 |
|||
|
Matched power |
hp |
30-50 |
30-60 |
50-70 |
70-100 |
|
Overall dimension |
mm |
500x800x1400 |
700x1200x1400 |
950x160x1450 |
1150x2850x1450 |
This subsoiler offers high productivity with a working depth of 300-450mm and matched power of 30hp, suitable for efficient intermediate tillage. It includes a machinery test report and video outgoing-inspection for assured quality, supporting customization options like ODM & OEM.
Technical Parameters
Model and Working Width: Common models include 3S - 1.0, 3S - 1.4, 3S - 1.8, 3S - 2.1, and 3S - 2.6. The working widths are 1000mm, 1400mm, 1800mm, 2100mm, and 2600mm respectively.
Working Depth: The general working depth range is 100 - 250mm. For example, the 3S - 1.0 model has a working depth of 100 - 250mm.
Fendt Farmer 3S tractor It is a traditional agricultural tractor produced by the German brand Fendt between 1968 and 1972. It is not specifically a "deep tillage tractor", but it can be equipped with deep tillage implements to carry out related operations. Its key parameters are as follows:
| Parameter Category | Specific Details |
|---|---|
| Power System |
Equipped with MWM D208 - 4 4-cylinder liquid-cooled diesel engine, displacement of 3.0L, power output of 45hp (33.6kw), rated speed of 2125rpm. The fuel tank capacity is 21.9 gallons (82.9 liters), which can meet the needs of long-term field operations.
|
| Transmission & Driving |
Adopts 13-speed transmission, with 13 forward gears and 4 reverse gears, enabling smooth shifting. It has two drive modes: 4x2 2WD and 4x4 MFWD 4WD, which can adapt to different field road conditions.
|
| Body & Weight |
The 2WD version weighs 5336 pounds (2420kg), and the 4WD version weighs 5854 pounds (2655kg). The overall length is 150 inches (381cm), the height is 93.3 inches (236cm), and the wheelbase is 88.58 inches (224cm). The body size is moderate and easy to operate in the field.
|
| Auxiliary Configuration |
It is equipped with an open operating platform, drum brakes, and the rear hitch lifting capacity can reach 4410 pounds (2000kg). The rear PTO (power take-off) speed is 540/1000rpm, which is convenient for connecting various agricultural implements such as plows and harrows.
|
Number of Tines: The number of tines increases with the increase of the working width. The 3S - 1.0 model has 5 tines, the 3S - 1.4 model has 7 tines, the 3S - 1.8 model has 9 tines, the 3S - 2.1 model has 11 tines, and the 3S - 2.6 model has 13 tines.
Weight: The machine weights are 240kg, 280kg, 320kg, 370kg, and 450kg respectively for the above - mentioned models.
Matching Power: The supporting tractor power is 25hp for the 3S - 1.0 model, 40hp for the 3S - 1.4 model, 50 - 60hp for the 3S - 1.8 model, 70 - 80hp for the 3S - 2.1 model, and 80 - 100hp for the 3S - 2.6 model.
Hitching Method: It is usually hitched to the tractor by a three - point suspension system, and the 3S - 1.0 model adopts the Class I three - point suspension, and the 3S - 1.4 model adopts the Class II three - point suspension.
This mechanical subsoiler pacakge will be iron case or nude pacakge .
The pacakge is according to your demand .
We can make different packing according to different shipping methods.
Our company is a real professional manufacture to produce different agricultural machinery and parts , if you are interested in it , please connect with me , thank you .
