Farm Raking Machine

The 60 Inch Landscape Rock Rake, made of durable alloy steel, is designed for efficient outdoor landscaping and gardening. With a product size of 1524*483*813 mm and a weight of 90 pounds, it offers robust performance and reliability.

The rake includes a 1-year warranty for core components and is supported by a machinery test report, ensuring compliance with quality standards. Suitable for farms and home use, this tractor 3-point landscape rake enhances productivity.

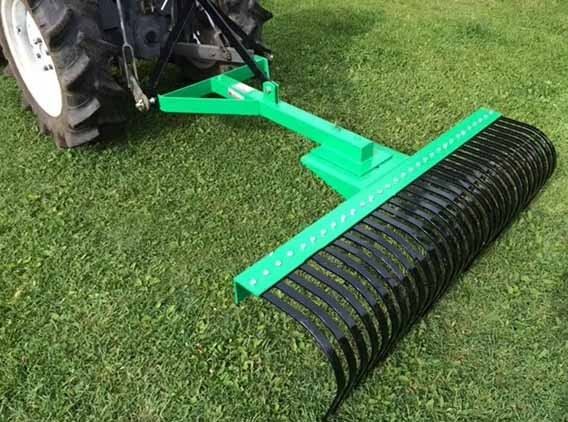

Three point Landscape Rake

The Landscape rake is ideal for grading,leveling,spreading top soil or gravel.

Tractor landscape rakes also allow you to remove stones, roots, rubbish from lawns or paddocks and to break up clumps.

Often used on driveways,paking lots,horse exercise yards or in the paddocks the tractor landscape rake is guaranteed to get plenty of use.

You have 360degree rotation,so you can angle the lawn rake or reverse it when needed.

Simply connect this pull behind rake to your category 1 hitch and you are ready for work.

This Spring steel tines on the lawn rake are heat treated and measure 5/16 inch*1 inch.

With 6tines per foot.

360 degree rotation allows angular and reverse settings.

Can be used on almost any tractors.

Powder coated and galvanzied optional.

Wheel kits are optional if needed.

Product Paramenters

Farm Raking Machine Key Parameters
Tine Material: Common materials include heat-treated manganese steel, which offers high hardness and wear resistance. It can withstand significant impact forces and resist deformation and damage during long-term use.

Width: This refers to the width of the rock rake that can be covered in a single operation. The width is generally selected based on the tractor's power and operational requirements. A wider width increases operational efficiency but also requires a higher tractor's pulling capacity.

Working Depth: This refers to the maximum depth the tines of the farm raking machine can penetrate into the soil. This depth can be adjusted based on soil conditions and rock depth to ensure effective rock removal.

When purchasing a rake, consider your own farmland conditions, the supporting agricultural machinery (such as a tractor), and operational needs.

Pay special attention to the following parameters:

Harrow Width

Farm raking machine should match the tractor's power: 15-30 horsepower (small tractors) are suitable for a 1.2-2 meter rake width; 50-100 horsepower (medium-to-large tractors) are suitable for a 2.5-4 meter rake width.

This avoids "a small horse pulling a large cart" (insufficient power, resulting in low efficiency) or "a large horse pulling a small cart" (wasting power).

Tine Material and Spacing

Material: Heat-treated manganese steel is preferred (high hardness, wear resistance, suitable for long-term soil breaking). For light-duty raking, ordinary spring steel is an option.

Spacing: For soil breaking/weeding, choose dense tines (5-10 cm) (for high fineness); for stubble gathering/hay collection, choose sparse tines (15-25 cm) (for anti-clogging and high efficiency).

Farm raking machine adjustment features
The machine must support rake depth adjustment (adjusting the tine penetration depth hydraulically or mechanically to accommodate different soil types: 10-15cm for sandy soils, 8-12cm for clay soils).

Some models also feature angle adjustment (adjusting the angle between the tine and the forward direction to control soil crushing force and material collection).

Farm raking machine compatibility
Confirm the tractor's suspension/traction interface specifications (e.g., "National Standard Class 1/Class 2" for a three-point hitch, and the drawbar connection aperture) to avoid installation problems.
