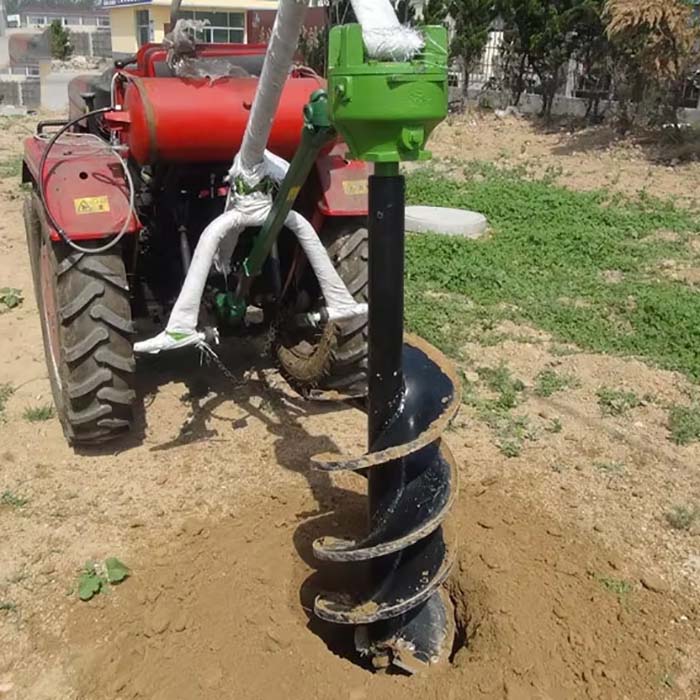

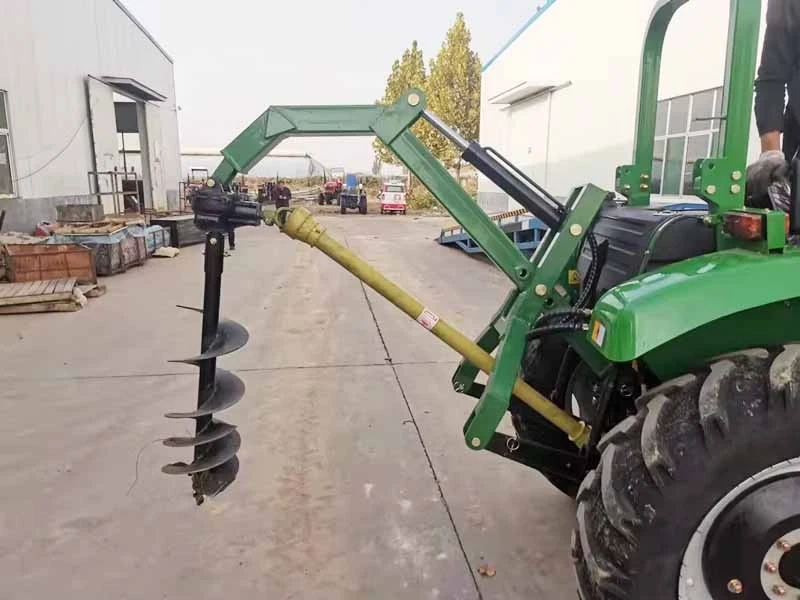

Tractor 3 Point Mounted PTO Drive Ground Hole Digger Machine Tractor Post Hole Digger

Tractor-compatible Auger
Structure: The drill stem features a reduction gearbox connection flange at the top, connected to the tractor's power take-off (PTO) shaft via a drive shaft (compatible with the tractor's standard speed of 540 rpm or 720 rpm). Most auger designs feature a double or multi-auger design (suitable for medium-to-large backhoes).

Post Hole Earth Auger Digger Application: Tractor-mounted or rear-mounted backhoes, used in farmland, orchards, and outdoor projects.

Post Hole Digger Used in Agriculture and Forestry

This machine are mainly suitable for tillage on all types of soil land and building site, it is common used for 25/60hp tractor with advantages of compact structure, strong flexibility, high productivity and convenient to use.



Backhoes: Backhoes are mechanical devices powered by tractors, excavators, and other equipment, equipped with a hydraulic system to dig earth pits.



These devices typically consist of a power system, a hydraulic system, and a mechanical drilling and digging system.

They are widely used in fields such as afforestation, power and telecommunications, and municipal engineering.

Depending on their structure and usage, they can be categorized as portable, front-mounted, or rear-mounted.

Post Hole Earth Auger Digger Tractor PTO: The tractor PTO is a crucial component of a tractor, transmitting power from the tractor engine to external equipment such as backhoes and rotary tillers.

Tractor PTO shafts are typically located at the rear or side of the tractor and have varying speed specifications, with common speeds ranging from 540 rpm to 720 rpm.

Power is transmitted to the input shaft of the external equipment via a drive shaft, driving the external equipment.

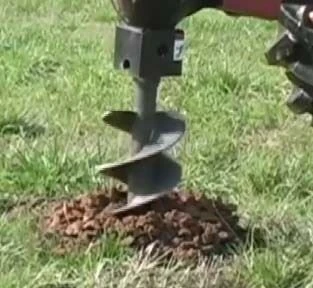

Augers: The auger is a key working component of a backhoe, primarily consisting of a drill rod and a drill bit. The drill rod typically features a spiral blade, which transports soil removed by the drill bit upward along the blades to the surface.

The shape and structure of the drill bit vary depending on soil conditions and digging requirements; common types include single-auger and double-auger bits.

The auger is connected to the output shaft of a reduction gearbox and rotates under the power transmitted by the reduction gearbox, cutting the soil and completing the digging operation.

Post Hole Earth Auger Digger Applications

Building and foundation engineering: In construction, this machine is often used for bored pile drilling, providing stable support for building foundations. It can also be used for foundation reinforcement, underground diaphragm wall construction, and micropile installation.

Municipal engineering: Suitable for various drilling operations in the construction of municipal infrastructure such as urban roads, bridges, and drainage pipelines, such as streetlight foundation drilling, guardrail installation hole excavation, and drainage pipeline trench excavation.

Power and telecommunications engineering: Suitable for drilling holes for power and telecommunications line tower foundations, as well as for the construction of communication base stations. It can quickly and efficiently complete large-scale drilling tasks, ensuring the stable operation of power and telecommunications facilities.

Agriculture and forestry: In agricultural production, it can be used for digging holes for afforestation, orchard planting, and grape trellis installation. In forestry, it can also be used for drilling holes for forest fire prevention zones and tree transplanting.

How to choose the right auger?
1. First, consider the soil type: For normal soil, choose the "standard double auger," for clay, choose the "anti-stick type," and for gravel/rock, choose the "alloy tooth reinforced type."

2. Next, consider the operating parameters: For small-diameter shallow holes, use the "single auger," for medium-diameter regular holes, use the "double auger," and for large-diameter deep holes, use the "multi-auger."

3. Finally, consider the equipment: For tractors, choose the "flange connection type," for portable tractors, choose the "chuck interface type," and for hydraulic equipment, choose the "hydraulic motor type."

Our main products consist of disc ploughs, disc harrows, share ploughs, rotary tillers, rotary stubble crushers, wheat planters, corn planters, single disc planters, middle cultivators, soil ridgers, soil loosening wheat and rice machines, harvesters, wheat and corn threshers, tractor trailers, slashers, gearboxes, plough and harrow discs, cultivation chisels and points, and hand tools. Moreover, we also can supply other products according to customers' drawings and samples. We will satisfy our customers with our best products and services.

Our products are mainly exported to South America, Africa, Russia and Southeast Asia, in more than 50 countries and districts.

Our products have won good praises of customers at home and abroad. We sincerely welcome you to inquire, visit and cooperate with us.

Hot Tags: post hole earth auger digger, China post hole earth auger digger manufacturers, factory
