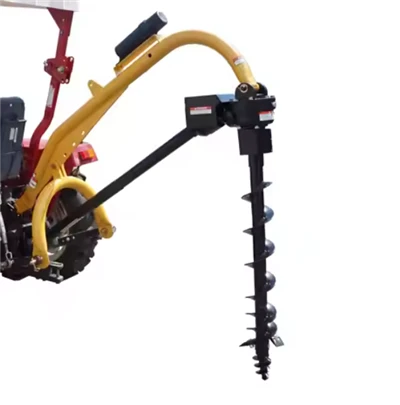

Auger Post Hole Implement

Used to connect the auger drill to the excavator's boom or arm, ensuring a secure connection and allowing the drill to be adjusted within a certain range to accommodate different drilling positions and angles.

Connecting Bracket



The power core of the auger drill. It typically utilizes an imported hydraulic motor equipped with high-precision gears and a two-stage reduction gearbox. This provides powerful torque and precisely controls the rotational speed through the hydraulic system to meet drilling requirements in diverse geological conditions.

Hydraulic Drive Head

Consists of the drill rod, spiral blades, and drill bit. The drill rod is a key component for transmitting torque and axial force. It is typically made of high-strength alloy steel, providing sufficient strength and rigidity to withstand the various stresses of the drilling process.

Auger Rod Assembly

The spiral blades wrapped around the drill pipe cut the soil and transport it up the pipe to the surface. Parameters such as blade shape, pitch, and width are carefully designed to meet diverse drilling requirements. The drill bit is mounted at the end of the drill pipe and directly contacts the soil. Depending on the geological conditions, different drill bits can be selected, such as standard spiral bits, reinforced tooth bits, and alloy bits, to improve drilling efficiency and quality.

Power Transmission: The excavator's hydraulic system powers the auger. Hydraulic oil is delivered via a pipeline to the auger's hydraulic drive head, driving the hydraulic motor. This power is then transmitted to the auger shaft via a gear reduction gearbox, causing it to rotate at high speed.

Drilling: As the auger shaft rotates, the excavator's boom and arm control the feed motion of the auger shaft, gradually driving the drill bit into the soil. The auger blades cut the soil as they rotate, transporting the resulting debris upward along the blades. When the debris reaches the top of the drill shaft, it automatically falls to the ground, achieving continuous soil discharge and completing the drilling operation.



01

High Mobility: Using an excavator as a carrier, the auger's travel and slewing capabilities allow for rapid movement and positioning within the construction site, eliminating the need for additional transport equipment.



This allows for drilling operations in diverse terrains and complex environments, significantly improving construction efficiency and flexibility.

02

High Drilling Efficiency: The hydraulically driven auger drill features high torque and adjustable speed, enabling rapid soil removal and efficient drilling.



Compared to traditional manual drilling or other drilling equipment, its drilling speed can be increased by several times or even dozens of times, effectively shortening construction schedules.

03

High Drilling Accuracy:

The excavator's operational controls and the auger's precise design allow for precise control of the drill hole's location, depth, and verticality, ensuring that the quality meets project requirements and reducing errors and rework during later construction.

04

Auger post hole excavator versatility:

Beyond drilling, the excavator can be used for other functions simply by replacing different attachments, such as a breaker or grab bucket. This allows for multiple uses, improving equipment utilization and economic efficiency.

05

Strong adaptability:

According to different geological conditions and drilling requirements, you can choose the appropriate spiral drill rod, drill bit and hydraulic parameters to adapt to drilling operations in various soil layers, clay layers, sand layers, pebble layers and even some rock layers.

Its auger-type post-hole drilling machine can drill a hole in one go, cast a pile in situ, and complete the placement of a reinforcement cage, offering high pile-forming efficiency, high quality, and low cost.

Manufactured using advanced technology and processes, it offers stable operating performance and excellent drilling results, making it suitable for construction projects in a variety of geological conditions.

Widely used in mining, construction, road construction, and other fields, this product helps users efficiently complete drilling operations.

Ground drills can be used for land excavation, afforestation, and ice drilling, and can be operated by one or two people. They are widely used in gardening, planting, tree planting, geophysical exploration, road construction, and other fields.

A variety of drill bits are available to meet user needs. Ground drills are dozens of times more efficient than manual labor. They offer fully automated operation. Ground drills free people from heavy manual labor and significantly reduce labor costs.

Features: Powerful power, attractive appearance, comfortable operation, low labor intensity, suitable for all terrains, high efficiency, and easy portability for field operations.
