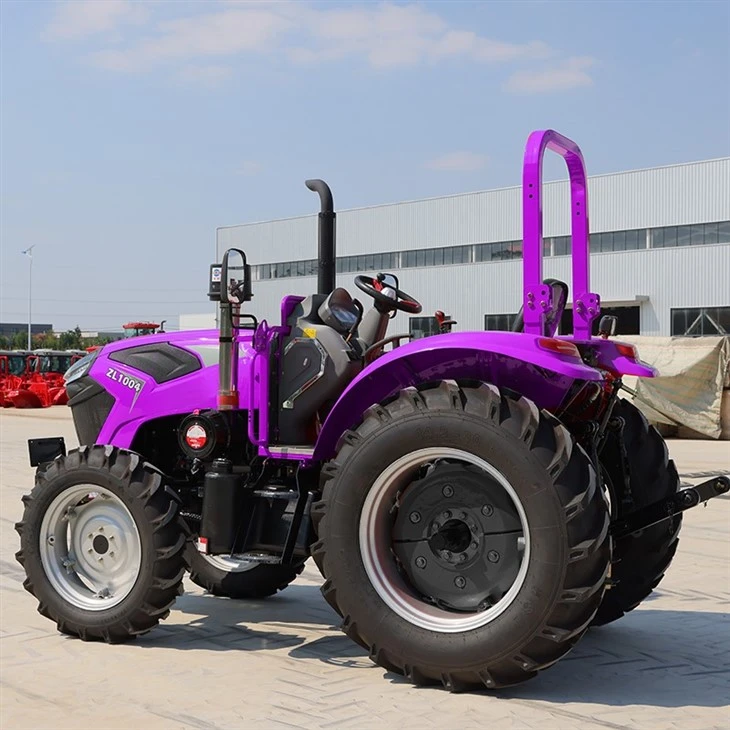

Machinery And Farm Tractors Characteristics
The front wheelbase is adjustable from 1300 to 1600 mm, the commonly used wheelbase is 1400 mm, and the minimum ground clearance is 460 mm (bottom of the front axle).
This model has wide adaptability in agricultural operations and strong power for transportation operations.
In addition, the ergonomics has been greatly upgraded, making your operation more comfortable and convenient, and maintenance easier.
The product is suitable for working conditions: multi-functional operations, gardening operations, transportation operations, orchard operations, greenhouse operations and farmland operations.
Equipped with advanced electronic lifting device, built-in and external lifting buttons, can quickly connect the equipment, and support one-button lifting + height setting.
Optional powerful lifting and lowering lifting devices. The cab is equipped with air conditioning, which can be heated and cooled at the same time, and adopts professional-grade 360° all-weather vision design and air suspension seat. The operation feels smooth and clear, and the working experience is comfortable.
This tractor is equipped with a high-quality four-cylinder diesel engine, advanced combustion technology and a fuel management system for greater fuel efficiency and lower operating costs.
The 12+12 gear system provides maximum power and flexibility, allowing you to adjust speed and torque to the specific task.
Designed with safety in mind, the ROPS (Roll Protection Structure) provides maximum protection when working on slopes. The 9.5-20/14.9-30 tires provide excellent traction and stability while increasing efficiency.
With its rugged structure and durable materials, this tractor can easily handle a variety of tasks from plowing to hauling heavy loads.
High efficiency and energy saving
Mechanical agricultural tractors are equipped with advanced control systems, such as hydraulic power steering and precision joysticks, making operation easier and more precise.
Mechanical agricultural tractors have lower fuel consumption and maintenance costs, which can save users economic costs. Filter fuel impurities to provide clean fuel for the engine.
Central console
The layout of the console enables the operator to operate the tractor easily and comfortably, and to easily access and master various controls and indicator devices.
At the same time, the humanized design also helps to improve the efficiency and integrity of the operation. The design is simple and practical, allowing the driver to easily master and operate it.
Full hydraulic steering system, flexible and easy to operate. Flat operation panel, shuttle shift under the steering wheel, reasonable ergonomics flexible and comfortable to operate.

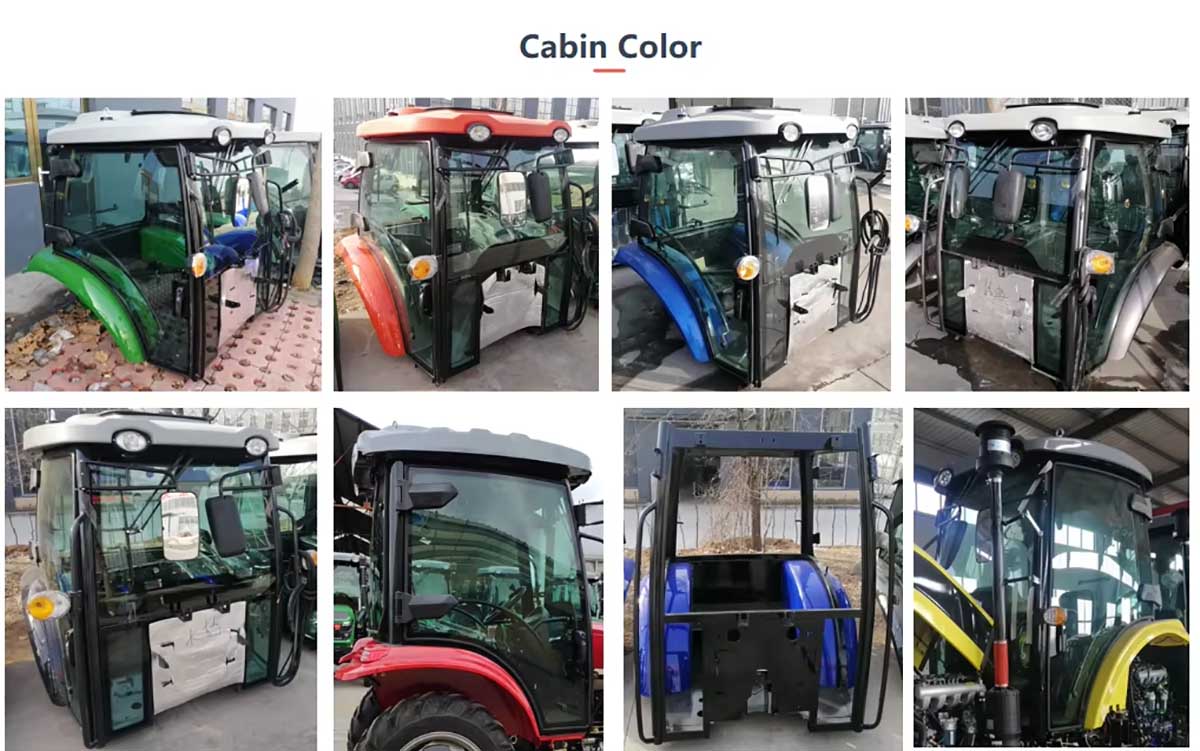

Optional cab, comfortable driving space.
Oil Air Filter
Agricultural tractors are equipped with fuel filters, which are composed of filter elements and filter housings.
The filter element is made of fine mesh or filter paper, which can effectively capture impurities and particles in the fuel.
Installing a fuel filter can prevent pollutants from entering the fuel system, protect key components such as fuel nozzles and fuel pumps, extend their service life, and improve fuel cleanliness and combustion efficiency.
HYDRAULIC OUTPUT
Hydraulic brake, self-increasing structure, reliable braking, safe and light.
Adopt 4x3x (1+1) compound gearbox, 12 front axles + 8 rear axles, shuttle shift, side control, easy to operate.
Vertical double cylinder high pressure lifter, large lifting force, strong adaptability.
Increase the diesel tank volume to meet long-term operation needs.
Some high-end models use elastic suspension (such as rubber blocks, air springs) to connect the frame and the travel wheel to reduce the impact of field bumps on the transmission system.
Agricultural cultivation
For soil turning and crushing operations with agricultural tools such as traction plows and rotary tillers, an engine is required to provide continuous and stable low-speed high-torque power.
Case: Tractors with over 100 horsepower are often equipped with 6-cylinder diesel engines and are used for deep loosening and land preparation in large farms.
Transportation operation
The low fuel consumption and reliability of diesel engines make them the preferred choice for medium and short-distance transportation when transporting agricultural supplies and products by trailer.
Special environment operation
In high-altitude and low-temperature regions (such as Northeast and Northwest China), diesel engines can still start stably through preheating devices (such as electric heating plugs), while gasoline engines are easily affected by the evaporation efficiency of fuel.
FAQ
1. Q: How to choose the most suitable tractor?
A: Choosing the right tractor depends largely on the type of work you plan to do.
Machinery And Farm Tractors are generally used for three main jobs: towing, PTO (power take-off), and transport/handling. In this guide, we'll discuss the types of tractors and how to choose the right one for each application. We'll also take into account farm size and price to provide as much information as possible to help you make your choice.
These factors can usually be taken into account:
1)Type of tractor
2)Application/main function
3)Farm size
4)Pricing
2. Q: How does farm size affect tractor choice?
A: You need to choose a tractor with a power that corresponds to the size of the farm you will be working on. When working on land less than 5 hectares, choose a tractor with a power of 30 to 60 hp.
For very large farms, you will need a tractor that can be set to 100 hp or more, with 200 hp or 300 hp being the most suitable. You must also take into account the state of the ground: if the terrain is rocky with a slope, then the power of your tractor should be greater than if the terrain is flat.
3. Q: What's your company advantage? Why choose us?
A: 1)20 years experience of production and exporting
2)support OEM service
3)Products in stock
4. Q: Hong long is your Machinery And Farm Tractors quality warranty?
A: We provide 1 year warranty. During the warranty period, damaged parts can be replaced free of charge
Hot Tags: machinery and farm tractors, China machinery and farm tractors manufacturers, factory, tractor hops harvester hookup, tractor cotton picker hookup, tractor productivity, tractor seeder, tractor hydraulics, tractor warranty
Parameter
|
Model |
LE1004 |
|
Horsepower(HP) |
100HP |
|
Type |
Wheel Tractor |
|
Wheel Driver |
4WD |
|
Tyre Size(F/R) |
12.4-24/16.9-34 |
|
Engine brand |
YTO/Weichai/Xinchai/Xichai |
|
PTO Speed(r/min) |
8 splines 760/850 or 760/1000 or 540/1000 |
|
Front wheel tread(mm) |
1485,1610,1710,1810,1950,2202 |
|
Rear wheel tread(mm) |
1620-2020(Steplessly adjustable) |
|
F/R Counterweight(kg) |
200 or 350 or 380/320 or 336 or 490 or 500 or 510 or 720 |
|
Gear Shifts |
16F+8R |
|
Max speed (km/h) |
38.7 |
|
Mini clearance (mm) |
365/379/400/475 |
|
Max traction(KN) |
34.3 |
|
Max lifting force(KN) |
16.5 |
|
Wheel base (mm) |
2960 |
|
Weight(kg ) |
4150 |
|
Working dimensions(L*W*H)(mm) |
4300*2280*3000 |
|
Remarks: |
|
|
◎ The chassis is suitable for 70-100 horsepower ◎ 12+12 shuttle shift, one lever switch for forward and backward, easy and fast operation ◎ High strength rear axle, thick half tube shell, more recognized by users ◎ Increasing the brake under high load results in better and more stable braking performance ◎ Dual fuel tanks, large fuel capacity, long operating time ◎ Domestic renowned engines with large reserve torque and stronger power ◎ Gear shifting with engagement sleeve for more flexible shifting operation, optional synchronizer shifting |
|
