Powerful gearshift
The gearshift can achieve precise speed matching. Equipped with a 10-inch diaphragm spring clutch, it has a long service life and low maintenance cost.
01
High hydraulic lifting
The hydraulic lifting force reaches 1.4 tons, and combined with the large-diameter 850mm rear wheel, the operation capability is strong.
02
avoid interference
The side-mounted fuel tank layout can avoid interference with the machinery, improving the operational safety in low-height spaces such as greenhouses.
03
equipped control
The vehicle is equipped with three adjustable steering wheels. The commonly used control handles are concentrated on the right side of the driver's cabin, making the operation convenient.
04

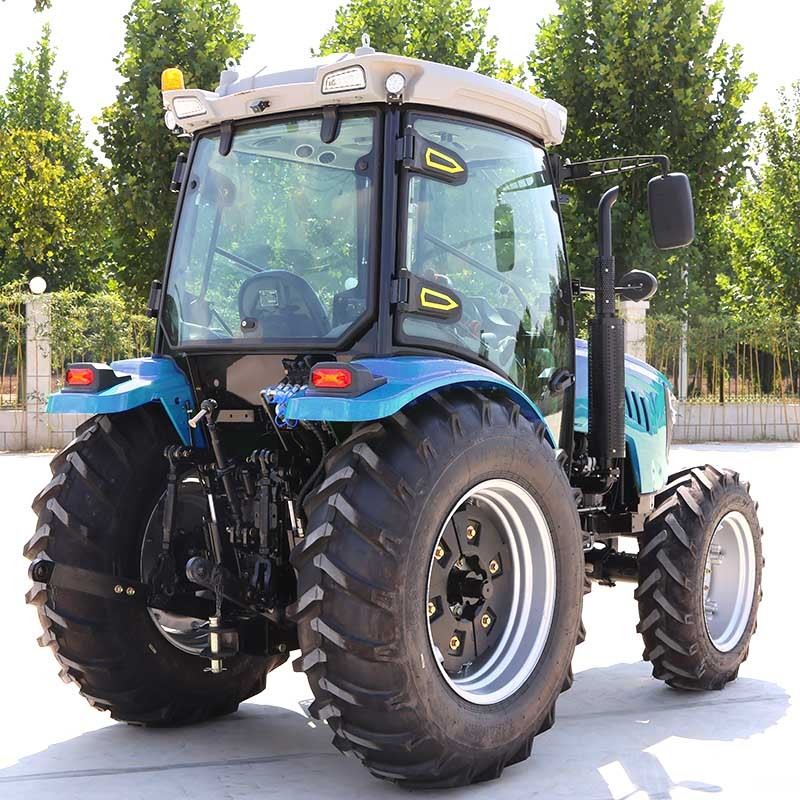

70HP Farm Wheel Tractor Agriculture
Equipped with a TB rear axle, four-wheel drive, and a 12F + 12R shift gearbox, the power transmission is smooth. It features a full hydraulic power steering system, providing flexible control. Technologies such as dual clutch, integrated adjustment of power and position, and floating control suspension enable it to adapt to various working conditions.
The engine torque reserve is greater than or equal to 20%, with low fuel consumption and excellent power and economy. It has 18 forward gears and 6 reverse gears.
An option for a reverse gear can be added, upgrading to 24 forward gears and 24 reverse gears. Optional accessories include safety frames, hydraulic multi-valves, and heated driver's cabins, providing a safer and more comfortable driving experience.
Multi-Location Availability: Showrooms for this tractor are located in multiple countries, including Egypt, Germany, Vietnam, Peru, Saudi Arabia, Indonesia, Russia, Kenya, Chile, Colombia, Algeria, Bangladesh, South Africa, Kazakhstan, Ukraine, Uzbekistan, Tajikistan, making it easily accessible to farmers worldwide.
Common types
The high-brightness LED light source provides bright and uniform lighting, allowing the driver to clearly see the road ahead and the work area at night or in low light conditions. The long life of the LED light source, usually up to thousands of hours, means not only reducing the frequency and labor costs of replacing the bulb, but also improving the reliability and stability of the tractor.This 4x4 agricultural tractor is designed for various farm work applications, including farm land and farm tractor use.
Inside the cab, operating buttons and switches control various accessories and functions, such as hydraulic systems, electric starters, etc.
Comfortable seats and seat adjustments are available, which can be adjusted according to driver's requirements. Air conditioning and heating systems provide a comfortable driving environment in inclement weather conditions. With storage space for personal belongings, tools, documents, etc.
The equipped steering wheel is usually used to control the steering operation of the vehicle, allowing the driver to easily and accurately control the steering Angle of the vehicle. The transmission or shift is used to adjust the vehicle's driving speed and power output, and the driver can adjust the gear to adapt to different driving needs, such as accelerating, decelerating or climbing. These steering wheels and gear shifts are usually designed and arranged according to ergonomic principles to ensure the driver's operating comfort and convenience.
Lawn farm tractor tail support components are typically made of high-strength steel to ensure their structural strength and durability.
The rear mount device is flexible and adjustable, and different farm tools can be adjusted and installed according to different agricultural tasks to improve work efficiency and activity. 8+2/8+8 gear shift system allows for flexible operation in different terrains and conditions, making it an adaptable solution for diverse agricultural needs.
Our factory & quipment
Shock absorption and vibration reduction: During the operation of the tractor, the tires can absorb and buffer the vibrations and impacts from the ground. This helps to reduce wear and tear on the tractor chassis, engine and other components, extend the service life of these components, and also improves the driver's comfort and reduces driving fatigue.
Ensuring handling: Tires play a crucial role in the steering, braking and driving stability of tractors. Good tire performance enables the driver to accurately control the driving direction of the tractor, stop quickly when braking, and maintain the stability of straight-line driving during the process, preventing situations such as side skidding and deviation, ensuring the safety and accuracy of the operation.
Adapt to different terrains: Depending on the different working environments, tractor tires are available in various types and specifications to choose from. For example, tires used for field operations usually have deeper patterns and a larger ground contact area to enhance grip and passability in soft soil; Tires used for road driving, on the other hand, pay more attention to comfort and stability during high-speed driving. This adaptability of the tires enables tractors to operate normally in various complex terrains and working conditions.
why choose us
Farm tractor manufacturing have honed our craft.
why choose our products
Focus on technological innovation, with intelligent production workshop, three top automated assembly lines.
Panasonic welding robot, multi-functional laser cutting machine, CNC machining center. leadray manufactures machines with the highest performance capacity, excellent durability, good price, and excellent after-sales service to customers all over the world. Passed the lS09000 international quality system certification and ce certification to ensure quality. In addition, OEM and ODM services are available.
Our Advantages
1. Our wheel tractors rank first in sales in China.
2. 16 years of export experience.
3. 30 years tractor production engineer.
2.ONE years warranty period.
3.For easy-damage parts, we will send you together with the tractor for free.
4.During warranty period, free spare parts for quality-problem spare parts replacement.
5.Multi-selection of configuration.
FQA
1. Who are we?
We are based in Shandong, China, start from 2017,sell to Central America(13.00%),Southern Europe(12.00%),Western Europe(11.00%),North America(10.00%),Southeast Asia(9.00%),Mid East(9.00%),Eastern Europe(8.00%),South Asia(6.00%),Africa(5.00%),South America(5.00%),Oceania(4.00%),Northern Europe(4.00%),Domestic Market(2.00%),Eastern Asia(2.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Crawler tractor,Seat-driven rotary tiller,Self-propelled rotary tiller,Soil ploughing machine,Grass crusher
4. Why should you buy from us not from other suppliers?
LEADRAY is a brand manufacturer is located in Yanzhou, one of the ancient Kyushu, now known as Yanzhou District of Jining City. It is an integrated new technology enterprise specializing in the research, development, production and promotion of crawler trac
Hot Tags: lawn farm tractor, China lawn farm tractor manufacturers, factory, row crop tractor, tractor field work, tractor land preparation, tractor offer, tractor backyard farming, tractor compactor attachment
Parameter
|
Model |
LE704 |
LE804 |
LE904 |
|
Horsepower(HP) |
70 |
80 |
90 |
|
Type |
Wheel Tractor |
||
|
Wheel Driver |
4WD |
||
|
Tyre Size(F/R) |
7.5-16/12.4-28 |
9.5-24/14.9-30 |
|
|
Engine brand |
Xinchai/Xichai/YTO |
||
|
PTO Speed(r/min) |
8 splines 540/760 |
||
|
Front wheel tread(mm) |
1250,1350,1450 |
||
|
Rear wheel tread(mm) |
1350-1600(Steplessly adjustable) |
||
|
F/R Counterweight(kg) |
120/180 |
||
|
Gear Shifts |
12F+12R |
||
|
Max speed (km/h) |
33.57 |
||
|
Mini clearance (mm) |
385 |
||
|
Max traction(KN) |
22.4 |
22.9 |
|
|
Max lifting force(KN) |
11.6 |
13.4 |
15 |
|
Wheel base (mm) |
2045 |
||
|
Weight(kg ) |
2650 |
2715 |
|
|
Working dimensions(L*W*H)(mm) |
4200*1800*2630 |
||
|
Remarks: |
|||
|
|
|||
