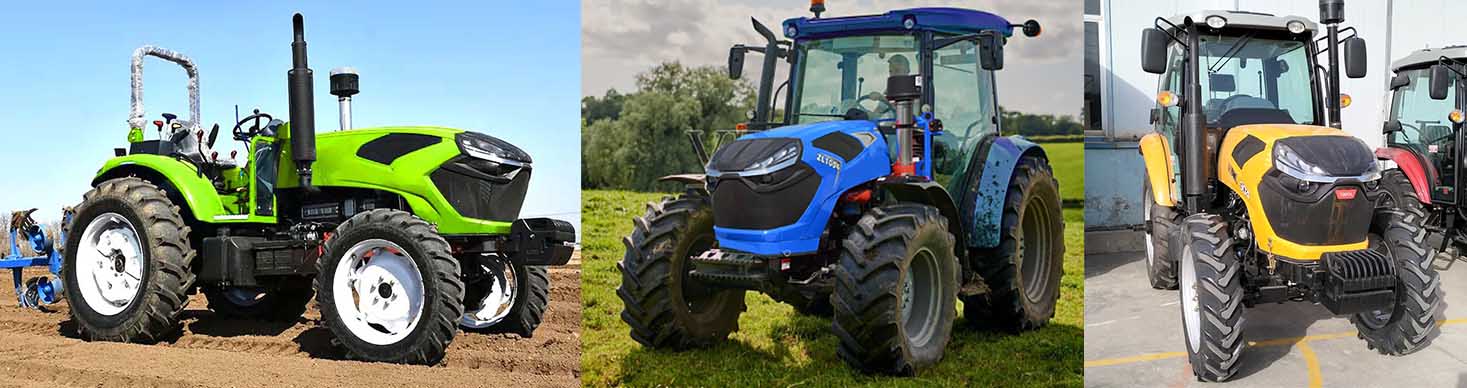

Wheeled tractor: Equipped with well-known national standard engine, large torque reserve, strong power.
The supporting power frequency conversion system can meet the power requirements of different working conditions.
The front drive axle is of the old and reinforced type and adopts the new three-group multiway valve. Equipped with Xurun tires, optional paddy field tires or dry land tires, paddy field and dry land are suitable for reliable wear.

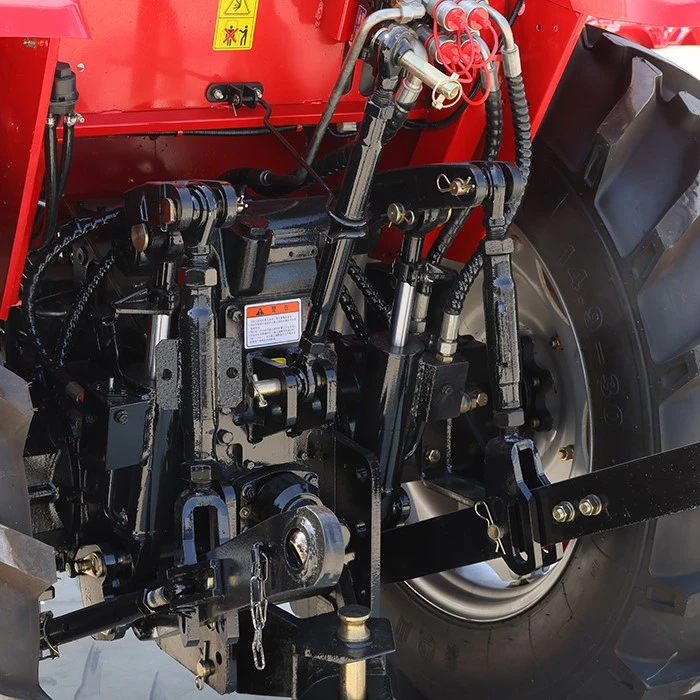

By connecting the rear suspension device, agricultural tools, plows, or other ancillary equipment can be pulled into the field for agricultural operations such as plowing, sowing, harvesting, etc.
A luxurious air-conditioned/heated cab is optional.
4wd 100hp farm tractor is designed to provide high productivity in various industries, including building material shops, farms, home use, energy & mining, and more.
Its customized 1600kg weight and 4wd capability ensure efficient operations in diverse settings.
Matching the international brand of high-efficiency engine, energy saving and environmental protection, to meet the needs of different customers.
Rich configuration, wide range of options, adapt to the different working conditions of low-speed operation to high-speed transport needs, more comfortable driving.

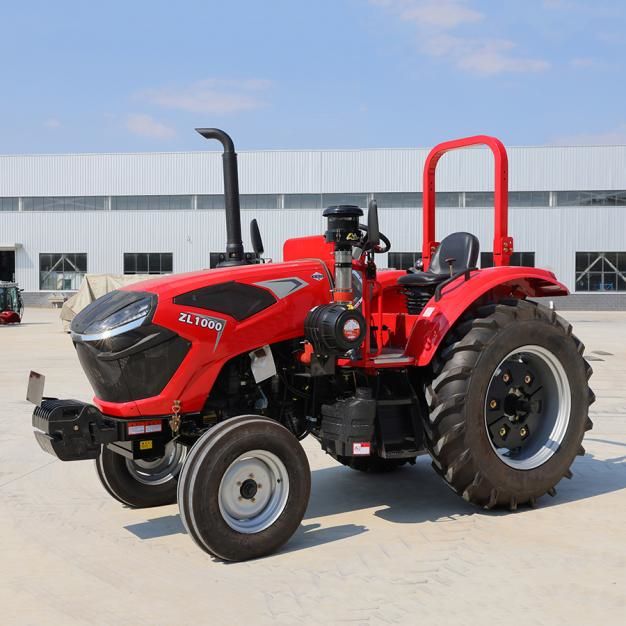

4 Wheel - type Tractor: The engine of this tractor has excellent performance, with stable and sufficient power output. It is designed with a four - wheel - drive system, which has good adhesion, large traction force, and is suitable for various complex terrains such as paddy fields, hills, and wetlands.
Rated power: 73.6 kilowatts (100 horsepower)
Rated net power: 81 kilowatts (110 horsepower)
Rated speed: 2200 revolutions per minute
Equipped with an electronically controlled high-pressure common rail fuel system.
Exhaust treatment uses a DOC + DPF post-treatment system, no urea addition required, and can be actively regenerated.
The gearbox offers two options: 12x4 DC TSS (30K) and 12x4 DC TSS (35K+).
The rotational speed of the power output shaft can be 760/830 revolutions per minute (8 gears) or 540/1000 revolutions per minute (6/21 gears).
The power output shaft power is 62.6 kilowatts. The integrated control platform conforms to ergonomic design and is easy to operate.
Working Capacity: Traction force is 37.5 kilonewtons, the hydraulic output valve group is 2 or 3 sets, the maximum lifting force is 25 kilonewtons (610mm)
The tillage depth adjustment methods include force adjustment, position adjustment, and floating adjustment, which can meet various farming requirements.
The nose design provides the driver with better visibility and operational performance, making maintenance and upkeep more convenient.
Used to operate various additional devices or functions, such as trailer control, lifting devices, etc
The accelerator and brake pedals can adjust the tractor's driving speed and parking brake.
4wd 100hp farm tractor steering control, flexible control.high and low speed gear,multi-gear control.
Compact internal structure, high power output, easy to work, and adaptable to various environments

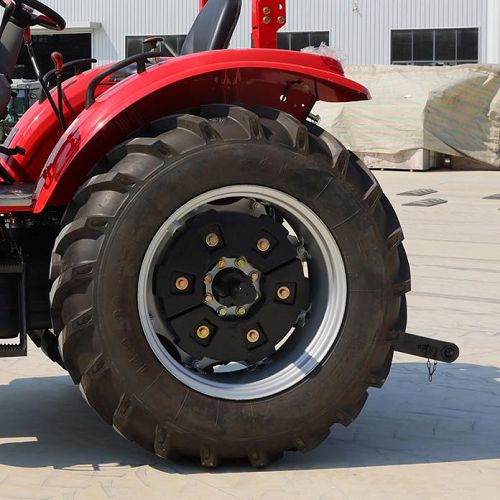

Tires are designed with an- ti-skid lines to in crease grip. widen and thicken anti-skid and explosion-proof, so that you can worry more when working.
Locomotive light design
4wd 100hp Farm Tractor design the circuit and controller required by the lighting system, headlights use optical simulation software to simulate the lighting system, predict and optimize the distribution of light, exposure range and light intensity and other parameters to ensure that the lighting effect meets the design requirements.
Including the brightness of the light, Angle adjustment, electrical performance, etc.
To ensure that the lamp meets the technical specifications and test standards.

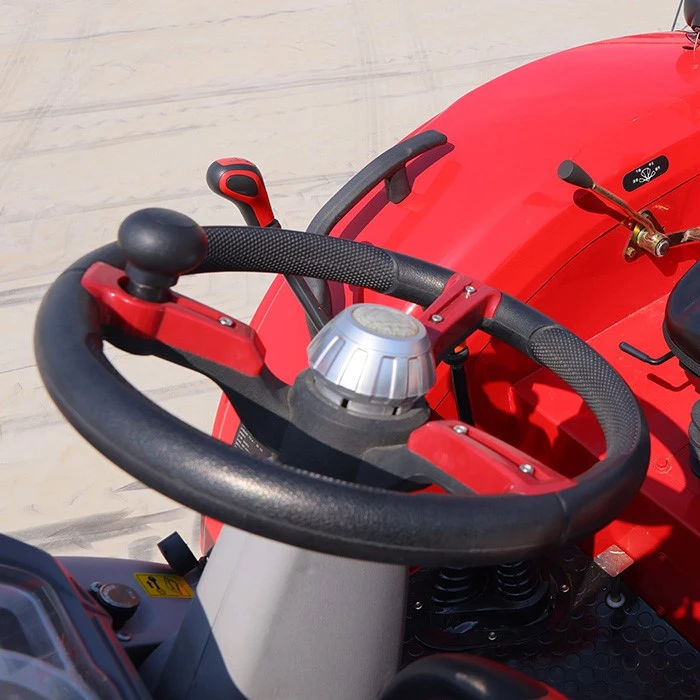

Engineering steering wheel design
Engineering steering wheel, detailed engineering design, including steering wheel size, shape, material selection, feel comfort and control optimization.
Carry out creative concept design, taking into account the special working environment and operating habits of tractors, design the appropriate shape, size and layout of the steering wheel.
FAQ
1.How can we guarantee quality?
Always final complete inspection before loading. Provide the testing products video and loading video.
2.What can you buy from us?
Farm tractors, Farm implements, Farm equipment, Spare parts, Etc.
3.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW, Etc.
Accepted Payment Currency:USD, POUNDS, Euros, Etc.
Accepted Payment Type: T/T,L/C,Etc.
4.Warranty Regulation of Product Quality
Depends on products and our contract.
Hot Tags: 4wd 100hp farm tractor, China 4wd 100hp farm tractor manufacturers, factory, farming machinery tractor, tractor marketing, tractor rotary spreader hookup, tractor durability, tractor intensive farming, tractor slurry tanker attachment
Parameter
|
Model |
LE1004 |
|
Horsepower(HP) |
100HP |
|
Type |
Wheel Tractor |
|
Wheel Driver |
4WD |
|
Tyre Size(F/R) |
12.4-24/16.9-34 |
|
Engine brand |
YTO/Weichai/Xinchai/Xichai |
|
PTO Speed(r/min) |
8 splines 760/850 or 760/1000 or 540/1000 |
|
Front wheel tread(mm) |
1485,1610,1710,1810,1950,2202 |
|
Rear wheel tread(mm) |
1620-2020(Steplessly adjustable) |
|
F/R Counterweight(kg) |
200 or 350 or 380/320 or 336 or 490 or 500 or 510 or 720 |
|
Gear Shifts |
16F+8R |
|
Max speed (km/h) |
38.7 |
|
Mini clearance (mm) |
365/379/400/475 |
|
Max traction(KN) |
34.3 |
|
Max lifting force(KN) |
16.5 |
|
Wheel base (mm) |
2960 |
|
Weight(kg ) |
4150 |
|
Working dimensions(L*W*H)(mm) |
4300*2280*3000 |
|
Remarks: |
|
|
◎ The chassis is suitable for 70-100 horsepower ◎ 12+12 shuttle shift, one lever switch for forward and backward, easy and fast operation ◎ High strength rear axle, thick half tube shell, more recognized by users ◎ Increasing the brake under high load results in better and more stable braking performance ◎ Dual fuel tanks, large fuel capacity, long operating time ◎ Domestic renowned engines with large reserve torque and stronger power ◎ Gear shifting with engagement sleeve for more flexible shifting operation, optional synchronizer shifting |
|
