LE804 Series 4WD Wheel Tractor – Power Meets Versatility for Global Farming
Dual Tyre Configurations: Two tyre size options (7.5-16/12.4-28 and 9.5-24/14.9-30) deliver excellent load-bearing capacity and traction, reducing soil compaction and extending tyre life.
Precision PTO Performance: 8-spline PTO with a fixed speed of 540/760 r/min seamlessly connects to a wide range of implements, from plows and tillers to seed drills and harvesters.

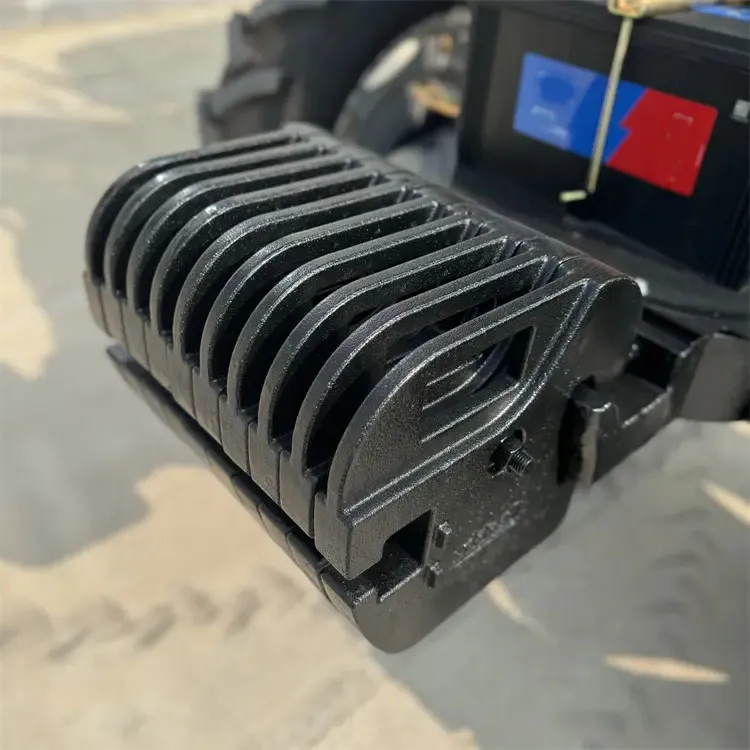

This is the front counterweight of the tractor, mainly used for:
Balancing the body: When attaching heavy agricultural tools (such as plows and seeders) to the rear of the tractor, the front counterweight can effectively balance the front and rear weights, prevent the front of the vehicle from tilting, and improve driving stability and handling.
Increasing traction: By increasing the front axle load, reducing front wheel slip, especially during muddy or slippery field operations, traction can be significantly improved.
Modular design: The counterweight in the figure adopts a stackable modular structure, which can flexibly increase or decrease the weight according to the job requirements to achieve the best balance effect.
This counterweight design is an important guarantee for tractors to achieve efficient and safe operations, especially when carrying out heavy operations such as deep plowing and sowing.
Central tachometer: displays the engine speed (unit: r/min), helping the driver control the engine operating conditions and avoid overloading.
Left fuel gauge: displays the remaining fuel level in the tank, reminding to replenish fuel in a timely manner.
Right water temperature gauge: monitors the engine coolant temperature to prevent overheating and malfunction.
Mileage display: records the accumulated driving or working hours, used for maintenance and operation statistics.
Half shaft (drive shaft)
The thick black component in the picture is the half shaft, which transmits power from the differential to the wheels and is the core component for achieving four-wheel drive (4WD).
Wheel hub and wheel rim
The part that connects the half axle and tires is responsible for carrying the weight of the vehicle and transmitting driving force.
Suspension arm (pull rod)
The horizontal metal rod in the picture is part of the suspension system, used to support the vehicle body, cushion vibrations, and maintain the stability of the wheels during driving.
Steering knuckle/wheel hub bearing
Located at the end of the half axle, it allows the wheels to turn while driving and bear the vertical load of the vehicle.
Why Choose the Import Tractor LE804?
The LE804 is designed to meet the demands of modern, small-to-medium-scale farming operations worldwide. Whether you're tilling, planting, harvesting, or transporting, this tractor combines power, adaptability, and reliability to boost your productivity and reduce operational costs. Its robust construction and customizable features make it a versatile workhorse for diverse agricultural environments, from Southeast Asian rice paddies to African maize fields and South American vegetable farms.
Contact Us
For more information on the LE804 4WD Wheel Tractor, or to discuss custom configurations for your specific farming needs, please contact our sales team. We look forward to helping you elevate your agricultural productivity.
Hot Tags: import tractor, China import tractor manufacturers, factory, tractor potato harvester hookup, orchard tractor, tractor efficiency, tractor model, tractor ripper hookup, tractor grader attachment
Parameter
|
Model |
LE704 |
LE804 |
LE904 |
|
Horsepower(HP) |
70 |
80 |
90 |
|
Type |
Wheel Tractor |
||
|
Wheel Driver |
4WD |
||
|
Tyre Size(F/R) |
7.5-16/12.4-28 |
9.5-24/14.9-30 |
|
|
Engine brand |
Xinchai/Xichai/YTO |
||
|
PTO Speed(r/min) |
8 splines 540/760 |
||
|
Front wheel tread(mm) |
1250,1350,1450 |
||
|
Rear wheel tread(mm) |
1350-1600(Steplessly adjustable) |
||
|
F/R Counterweight(kg) |
120/180 |
||
|
Gear Shifts |
12F+12R |
||
|
Max speed (km/h) |
33.57 |
||
|
Mini clearance (mm) |
385 |
||
|
Max traction(KN) |
22.4 |
22.9 |
|
|
Max lifting force(KN) |
11.6 |
13.4 |
15 |
|
Wheel base (mm) |
2045 |
||
|
Weight(kg ) |
2650 |
2715 |
|
|
Working dimensions(L*W*H)(mm) |
4200*1800*2630 |
||
|
Remarks: |
|||
|
|
|||
