Farm Equipment 4x4 Wheeled Agriculture Tractor with Farming Machine

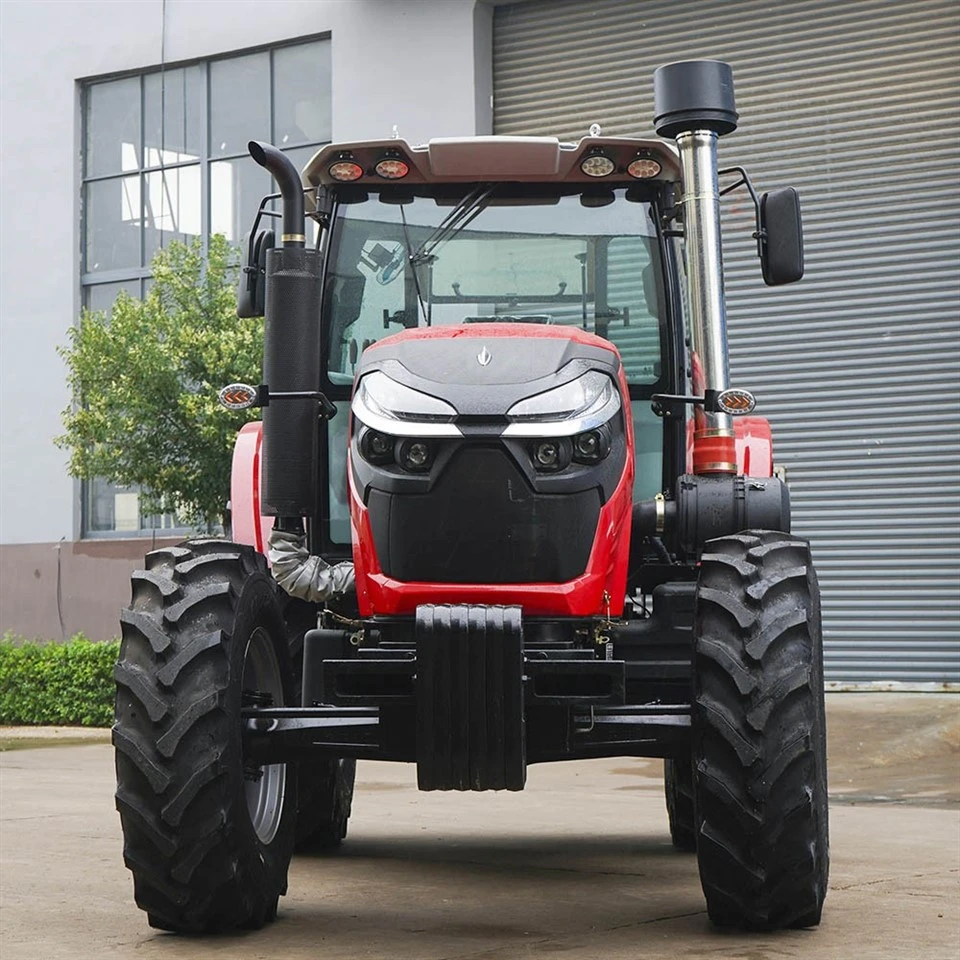

The 1504 tractor is a 150HP (110-118kW) four-wheel drive agricultural machine designed for medium to large farms.
With its robust engine, versatile transmission, and powerful hydraulic system, it's the workhorse for comprehensive farming operations, from land preparation to harvesting and material handling.
🚜 Key Specifications
| Parameter | Typical Values |
|---|---|
| Engine Power | 150HP (110.3-117.7kW) at 2200rpm |
| Engine Type | 6-cylinder, water-cooled, turbocharged with intercooling |
| Displacement | 6.5-6.8L (Chinese brands: 6.5L; International: 6.7-6.8L) |
| Drive System | Permanent 4WD with differential lock |
| Transmission | 16F+16R power shift, 24F+8R shuttle shift, or 12F+4R synchro |
| PTO Power | 125-140HP (93-104kW) at 540/1000 RPM |
| Max. Lift Capacity | 5,200kg (52kN) at 610mm (Cat. III/IV hitch) |
| Fuel Tank | 210-255L for full-day operation |
| Weight | 4,900-5,500kg (10,800-12,100lbs) |
| Dimensions | L: 5,000-5,200mm, W: 2,350-2,500mm, H: 2,800-3,200mm |
🚀 Hydraulic System & Performance
High-flow pump (80-110L/min): Powers multiple implements simultaneously
Max hydraulic pressure: 250 bar (3,600psi) for heavy lifting
Dual/three hydraulic outlets (standard/optional): Flexible implement connections
Strong pressure lift system:
Forced soil penetration for heavy tillage
5,216kg maximum lift capacity at 610mm (New Holland T1504)
30kN (3,000kg) for John Deere 6E-1504
🌱 Agricultural Applications
Land Preparation:
Deep plowing (30-40cm) with 4-furrow hydraulic reversible plows
Rotary tilling with 3m-wide tillers
Harrowing and leveling with heavy-duty implements
Planting & Cultivation:
Row crop planting (cotton, corn, sugarcane)
Fertilizer application
Weeding and inter-row cultivation
Harvest & Post-Harvest:
Straw/stubble incorporation with stalk choppers
Potato/peanut harvesting
Material transportation (up to 5-8 tons)
Specialized Applications:
Orchard & Vineyard Management:
Compact design (width: 2.3-2.5m) for navigation between rows
Spraying and pruning operations
Greenhouse Operations:
Heavy-duty tilling for greenhouse soil preparation
Transport of seedlings and harvested produce
Pumping Applications:
Irrigation system operation
Dewatering flooded fields
🔧 Complete Farming Machine Compatibility
Essential Attachments:
| Implement Type | Compatibility | Application |
|---|---|---|
| 4-furrow hydraulic plow | Excellent (430/440 series) | Deep tillage |
| 3m rotary tiller | Ideal | Soil preparation |
| seeder | Perfect | Planting crops |
| straw returning machine | Excellent | Stubble incorporation |
| baler | Good (with crawler gear) | Hay/straw baling |
| disk harrow | Good | Soil leveling |
| Cultivator | Ideal | Weed control |
| sprayer | Excellent | Pest/disease control |
💰 Pricing & Value
Price Range (2025):
| Brand Category | Price Range (USD) | RMB Equivalent |
|---|---|---|
| Chinese Brands | $15,500-22,000 | ¥110,000-180,000 |
| Mid-range Brands | $22,000-35,000 | ¥160,000-270,000 |
| Premium Brands | $35,000-50,000+ | ¥250,000-380,000+ |
Key Considerations:
Subsidy eligibility: Up to ¥41,900 in China for 140-160HP tractors.
Cost-effectiveness:
Fuel efficiency: 210-240g/kWh (0.21-0.24kg/kWh).
Maintenance intervals: 500-600 hours for premium models.
Service life: 10-15 years with proper maintenance.
This machine represents an excellent investment for farmers seeking a reliable, multi-functional workhorse that will serve efficiently for years to come.
