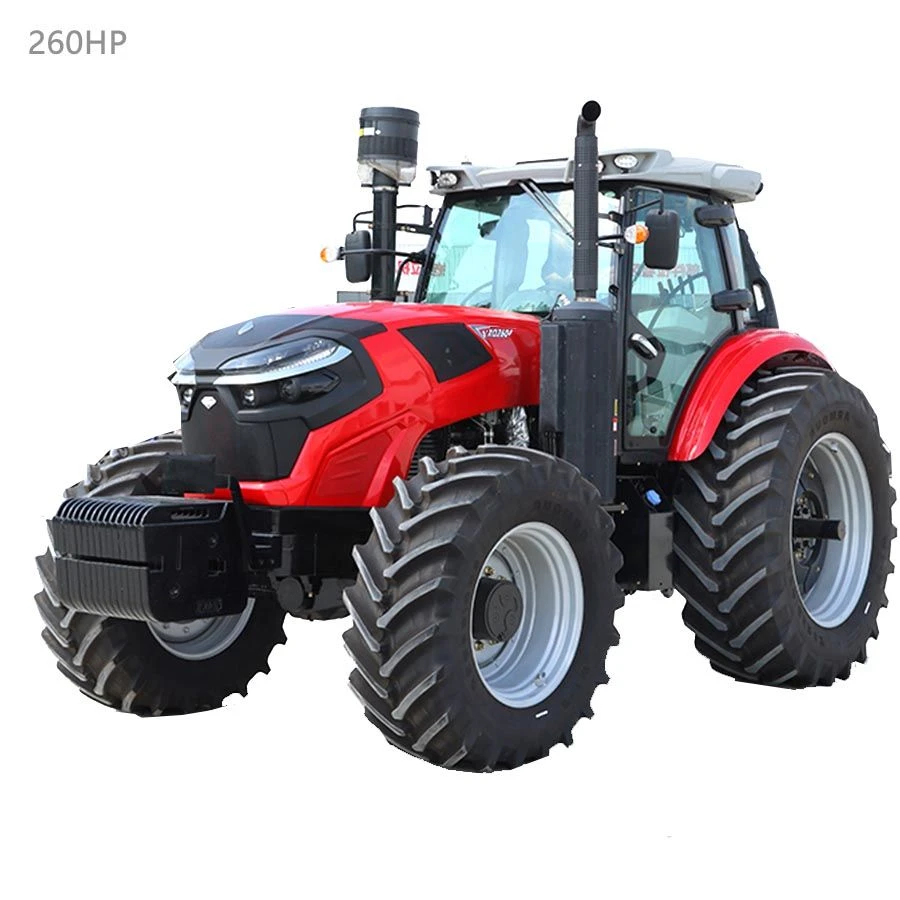

260HP 4WD Agriculture Tractor with Spare Parts
The 260HP 4WD tractor offers powerful performance, featuring a 260HP engine, a maximum tractive force of 82 kN, and optimized weight distribution for stability.
Its dimensions, including a 3085mm wheelbase and 380mm ground clearance below the transmission, ensure it can handle a wide range of terrain.
With a minimum turning radius of 6.8 meters, the tractor provides excellent maneuverability for large-scale agricultural operations.
The advanced intelligent control system and high-precision sensor can monitor and adjust the working state of the harvester in real time to ensure that all components work together stably and reliably.
260hp farm tractor the cab is equipped with a large front windshield and side Windows to provide a good field of view to help the driver observe the surrounding environment and operate equipment. The cab is designed with the safety of the driver in mind, built of rugged materials and equipped with protective devices in key areas such as reinforced ceilings and seat belts.
The driver can easily control the direction and speed of the vehicle and operate it in narrow spaces or complex environments. The cab is equipped with a centralized control panel, joystick and pedals to facilitate the driver to operate the various functions and components of the tractor, such as steering, acceleration, braking, gear, etc.
The advanced cab of the tractor is designed to improve comfort. All displays, joysticks, and control devices, including audio and air conditioning, are strategically located around the right console or steering wheel for easy and intuitive operation.
The 260hp farm tractor headlights use high brightness light sources, which can provide bright and clear illumination, effectively improving visibility during nighttime driving and ensuring driving safety.
The headlights are precisely designed to provide uniform and balanced lighting within a certain range, allowing the driver to clearly see the road and obstacles ahead.
Powerful Traction: Tractors are typically equipped with powerful engines and high torque output systems, which can provide sufficient power output to drive and pull heavy loads such as agricultural machinery, plowing tools, or other equipment.
Single/double-acting clutches can be selected to meet different needs and operations; Herringbone tires, paddy tires or other.
Drive hydraulic systems such as hydraulic motors, hydraulic cylinders, etc.
Suitable for systems that require precise flow control and constant pressure, 3-point linkage, force up and down, 2 groups of hydraulic output, we have cooperative manufacturers to provide you with a wide variety of agricultural machinery and tools.
Please tell us your specific needs and cooperation intentions. You can explain your needs for our products or services, including quantities, specifications, customization requirements, etc.
Our address
14/F, Mingteng Building, Qinghu Rd., Longhua District, Shenzhen, China
Phone Number
+86 134 2439 0319
helen@szleadray.com
Hot Tags: 260hp farm tractor, China 260hp farm tractor manufacturers, factory, tractor grain cart, tractor discount, tractor hops harvester hookup, tractor with attachments, tractor boomless sprayer attachment, tractor timber tractor
Parameter
|
Model |
LF2604 |
||
|
Dimension (L×W×H) |
mm |
5800×2800×3350 |
|
|
Min. operating weight |
kg |
8340 |
|
|
Wheelbase |
mm |
3000 |
|
|
Wheel track (front/rear) |
mm |
1720,1820,1940,2040, 2140/1700～2400 |
|
|
Engine |
Model |
/ |
YUCHAI engine 260HP |
|
Type |
/ |
Vertical, water-cooling, four stroke, common rail |
|
|
Qty of cylinders |
cylinder |
6 |
|
|
Rated power |
HP/KW |
260HP 191.1kW |
|
|
Rated speed |
r/min |
2200 |
|
|
Driving |
Clutch |
/ |
Single disc, dry, independent control, dual stage |
|
Gearbox |
/ |
TG32F＋32R |
|
|
Gear shift type |
/ |
Synchronizer |
|
|
Steering |
Steering type |
/ |
Full hydraulic steering |
|
Braking |
Brake type |
/ |
Mechanical control, wet, disc |
|
Walking |
Tire size (front/rear) |
/ |
16.9-28/20.8-38 |
|
Working device |
Suspension device type |
/ |
Rear,three-point suspension |
|
Suspension device category |
/ |
Category Ⅲ |
|
|
Tillage Depth Adjustment |
/ |
Height adjustment and floating control |
|
|
Hydraulic output device |
group |
4 |
|
|
Standard PTO speed |
r/min |
8 Keys or 6 Keys,760/850 or 540/1000 |
|
|
Other |
Rops/cab |
cab |
|
