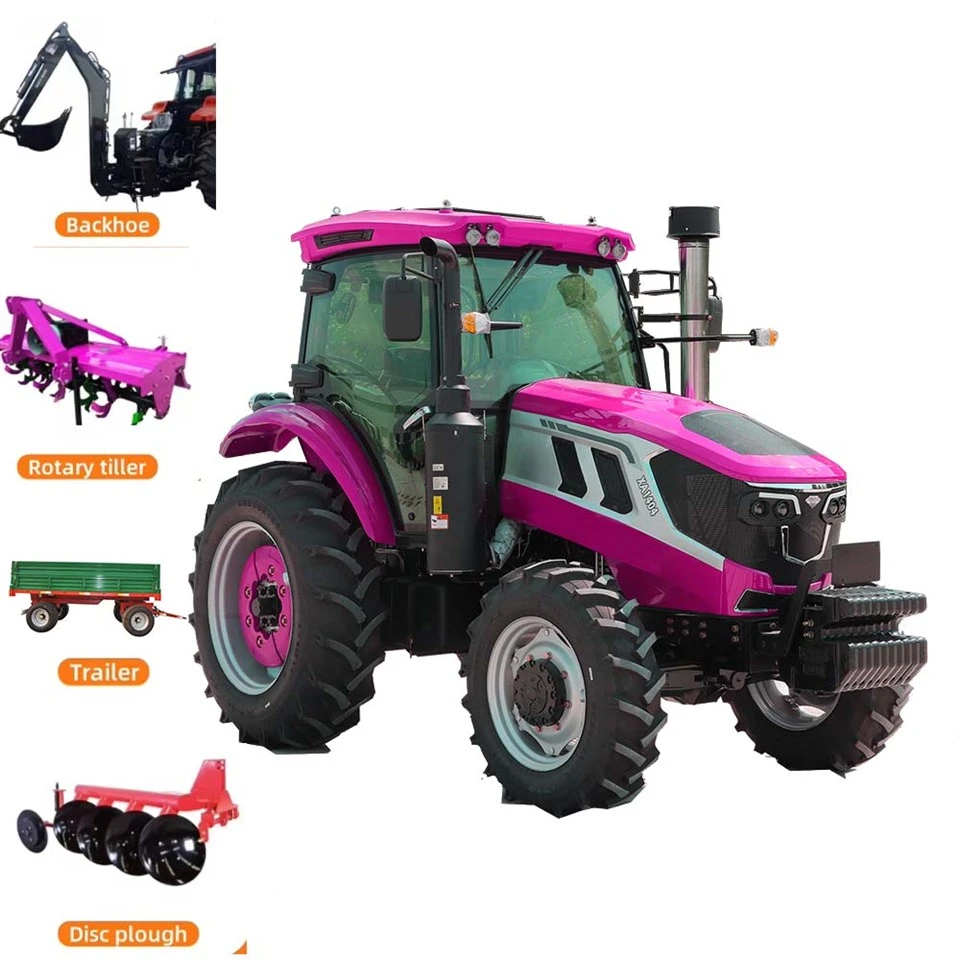

140HP Tractor Universal Tractor China Agricultural Machinery Tractor
This 120HP-140HP 4x4 tractor features a reliable diesel engine with high torque and fuel efficiency, suitable for various terrains. Equipped with a 16F+8R gear transmission, adjustable wheel treads, and optional AC cabin, it ensures versatile and comfortable operation.
Equipped with a 6-cylinder diesel engine and optional PTO speeds of 540/760rpm or 540/1000rpm, it ensures reliable performance across various tasks. Universal compatibility with implements like ploughs, harrows, and mowers boosts versatility.
Universal Farm YTO Diesel Engine Tractors
Farm agriculture tractor is a self-propelled power machine used to pull and drive operating machinery to complete various mobile operations.
|
Model |
120hp |
||
|
Dimensions |
Length×Width×Height(mm) |
4280*2085*2925 |
|
|
Wheel Tread(mm) |
Front Wheel(mm) |
1610 |
|
|
Rear Wheel(mm) |
1620 |
||
|
Min.Ground Clearance(mm) |
450 |
||
|
Dry Mass |
With Cab(kg) |
4020 |
|
|
Engine |
Engine brand |
YTO |
|
|
Engine Model |
Direct-injection,water-cooled 4-cylinders diesel engine |
||
|
Number of Cylinder |
4 |
||
|
Cooling System Type |
Water Cooled |
||
|
Rated Power(kw) |
88.2 |
||
|
Fuel Tank |
Volume(L) |
150 |
|
|
Transmission System |
Clutch |
YTO 12in.,double-acting,independent,dry clutch |
|
|
Gear Box |
F16+R8 Shuttle Shift |
||
|
Braking System |
Static hydraulic pressure,multi-disc,wet |
||
|
Running System |
Tyre Model |
Front tyre |
12.4一24 |
|
Rear tyre |
16.9一34 |
||
|
Steering System |
Hydraulic Steering |
||
Machted to YTO/YUCHAI diesel engine with strong power, high fuel efficiency and large torque coefficient.
The front axle is used on the tractor having high carrying capacity and clearance; double steering cylinders make the steering more flexible.
Adopting side mounted control mechanism and collar shift, transmission gears of F16+R8, crawler of F16+R8, proper speed matching, strong agriculture applicability, high work efficiency, and high fuel economy.
Comprehensive force/position control lifter for easy and convenient operation; strong pressure device lifter with up to 2500kg of max lifting force at the suspension point for the best rotary tillage and ploughing effect.
This tractor is suitable for use in plains, mountainous areas, hilly areas, paddy fields, orchards, grasslands, and pastures.
When used in conjunction with appropriate agricultural machinery, it can perform various field operations, including plowing, turning, harrowing, sowing, fertilizing, and harvesting. It can also be transported or used as a stationary device.
The tractor is suitable for use in plains, mountainous areas, hilly areas, paddy fields, orchards, grasslands, and pastures.
When used in conjunction with appropriate agricultural machinery, it can perform various field operations, including plowing, turning, harrowing, sowing, fertilizing, and harvesting. It can also be transported or used as a stationary device.
Structural Components
1. Engine: This is the tractor's power source, typically a diesel engine. It features low-speed, high-torque characteristics and consists of a crankshaft-connecting rod mechanism, ventilation system, and fuel supply system.
2. Chassis: This connects the engine to various systems and components, converting engine power into driving and traction forces. This includes the transmission, steering, braking, and propulsion systems.
3. Working Equipment: This includes the traction device, power take-off, and hydraulic suspension, used to tow, suspend, and drive agricultural machinery for operations such as tilling and seeding.
4. Electrical Equipment: This primarily includes the generator, battery, lighting system, and instrumentation system, providing power support and status monitoring for the tractor's operation and operation.
Professional Manufacturer
We are an integrated manufacturer specializing in the production of construction machinery, agricultural machinery, and machinery parts.
Extensive Production Experience
Founded in 2011 with registered capital of 3 million yuan, we currently have 30 employees, operate multiple machinery brands, and achieve an annual turnover of 15 million yuan.
Diversified Products: Our main products include a wide range of new and used tractors with power ranging from 20 to 440 horsepower, various construction machinery, and various agricultural and construction machinery accessories.
Product Innovation
In addition to selling construction and agricultural machinery, we have also developed intelligent machinery such as sprayers and remote-controlled lawn mowers, providing our international customers with a wider range of intelligent product options.
