Machine Auger

Agricultural Machinery

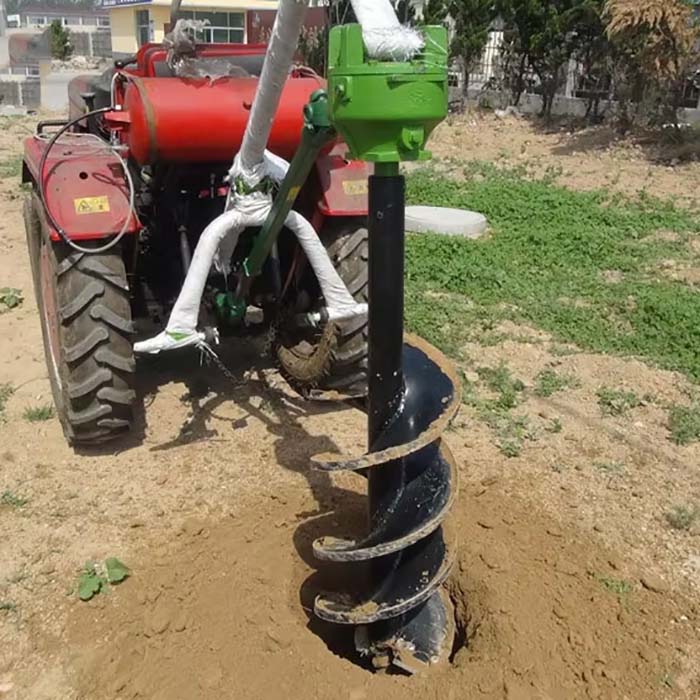

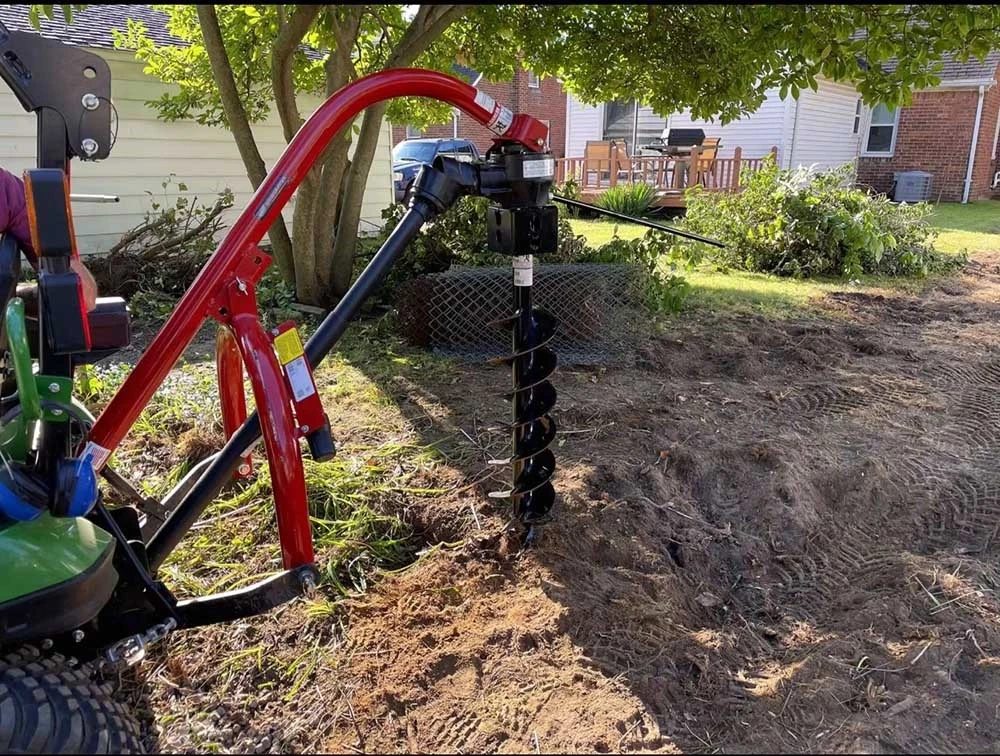

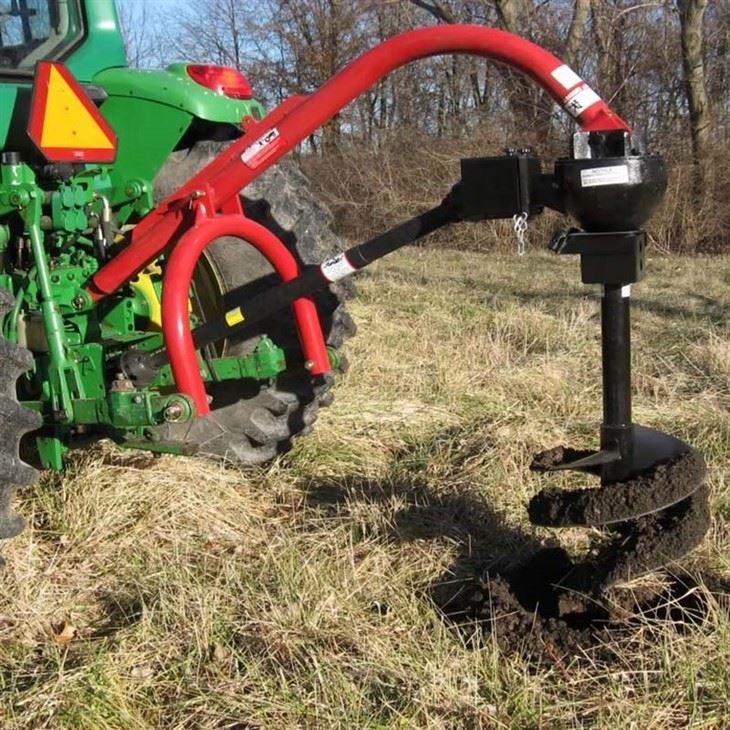

3-Point Hitch Assembly Machine Auger

Connects securely to tractor's Category 1, 1-2, or 2 hitch system

Heavy-duty steel frame with reinforced pivot points for stability

Gearbox (The Heart) Machine Auger

Converts high-speed (540 RPM) PTO power to low-speed, high-torque output (150-200 RPM)

Gear ratios typically 3:1 to 6.5:1 depending on model and soil conditions

Oil-immersed design for lubrication and heat dissipation

Auger Bit (Digging Element)

Spiral design carries soil upward as it drills

Available in diameters: 6" (150mm), 9" (225mm), 12" (300mm), 18" (450mm), 24" (600mm)

Lengths: 36" (900mm), 48" (1200mm), with extensions for deeper holes

Tungsten carbide-tipped for rocky soil; standard steel for soft/loamy soil

Operation & Safety

Attachment: Connect to tractor's 3-point hitch and PTO with shear bolt protection.

Positioning: Lower auger to ground, ensure vertical alignment.

Digging: Start PTO at low RPM, increase as auger penetrates.

Depth Control: Use tractor's hydraulic lift system.



High Efficiency

The hydraulic drive system provides powerful power, enabling rapid rotation and feed of the auger rod, significantly improving drilling or trenching efficiency and shortening construction time.

High Precision

The operating control system precisely controls the rotation speed, feed speed, and lifting height of the drill rod, ensuring accurate drilling or trenching to meet the requirements of different projects.

Adaptability

Auger rods and drill bits of varying specifications can be selected to suit different geological conditions and project requirements, adapting to various soil types and construction environments, such as clay, sand, and rock.

Versatility

In addition to drilling and trenching, some hydraulic auger trenching drill rigs can be equipped with other accessories, such as breakers and compactors, to achieve multiple functions and improve equipment utilization.

Unmatched Efficiency

Drills a 6" hole in 10-20 seconds vs. 5-10 minutes manually

50-150 holes per hour depending on soil conditions

Single operator works from tractor seat

Versatile Applications

Agriculture: Fence installation, tree planting, irrigation trenches

Construction: Foundation piers for sheds, decks, signposts

Landscaping: Tree planting, garden borders, retaining walls

Municipal: Road signs, utility poles, park

Soil Adaptability

Soft/Loose Soil: Standard auger with wide flighting

Clay/Compacted: Heavy-duty auger with aggressive pitch

Rocky Ground: Special rock auger with carbide teeth

Durability & Low Maintenance

Reinforced steel frame withstands heavy loads

Replaceable parts: auger teeth, bearings

Quarterly gearbox oil change is primary maintenance

Auger Bit Selection Guide

For Fence Posts: 6"-8" diameter provides stability while being easy to backfillFor Trees: 12"-18" diameter accommodates root ballsFor Hard/Rocky Soil: Choose carbide-tipped bits and smaller diameter (6"-9") for better penetrationMulti-Purpose Use: 9" bit balances speed and stability

Factory Direct Supply Advantages

Cost Savings: 20-40% cheaper than retail/dealer prices

Customization: Tailor auger size, gear ratio, and hitch type to your tractor

Warranty: 1-year standard on gearbox and frame; 6 months on auger bits

Bulk Discounts: For farms, construction companies, or dealerships

Technical Support: Direct access to engineers for installation guidance

Operation & Safety

Attachment: Connect to tractor's 3-point hitch and PTO with shear bolt protection

Positioning: Lower auger to ground, ensure vertical alignment

Digging: Start PTO at low RPM, increase as auger penetrates

Depth Control: Use tractor's hydraulic lift system

Safety First:

Always wear gloves and safety glasses

Never leave PTO engaged when unattended

Use safety shield at all times

Disconnect PTO before servicing
