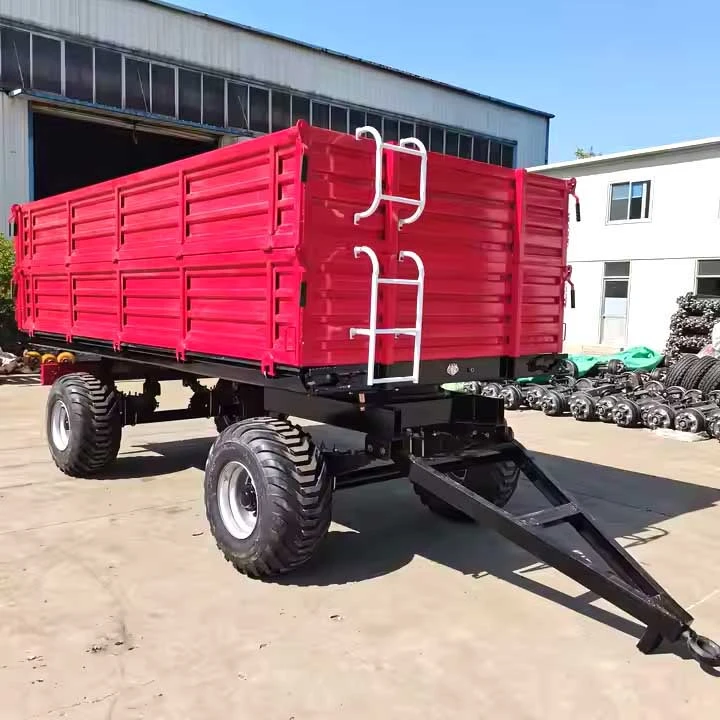

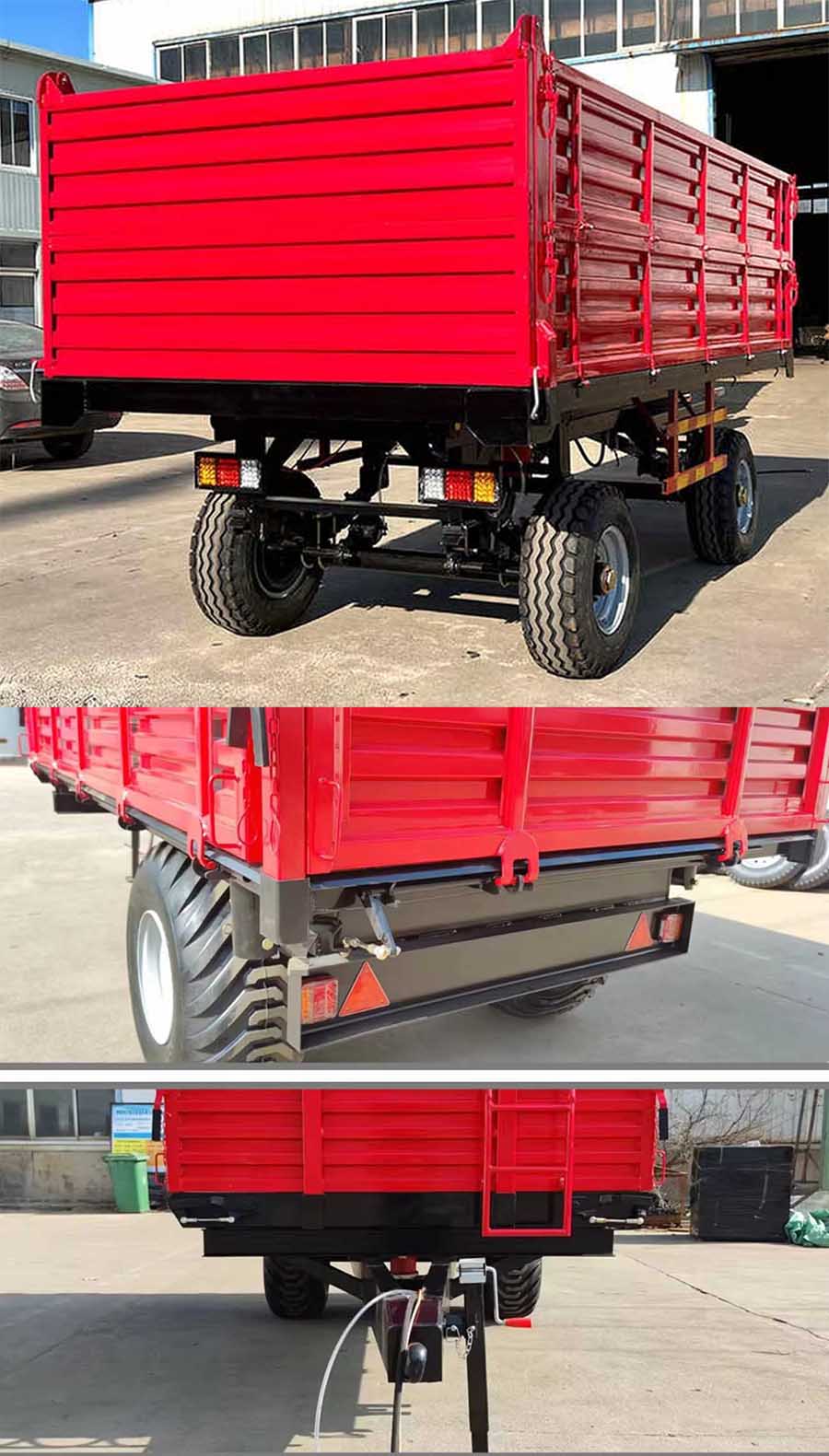

Product Description – Farm Tipping Trailer
Our tractor-pulled farm trailer is a durable and versatile transport solution designed for all types of agricultural operations. Whether you're hauling crops, equipment, livestock feed, or harvest waste, this farm trailer is built to perform in tough field conditions.
Constructed from heavy-duty steel, the trailer features a reinforced frame, high-load axle, and non-slip platform, ensuring long-term durability and safety. It connects easily to most tractors and comes in a range of capacities and configurations to suit different farm sizes and needs.
Perfect for grain transport, field work, or multi-purpose farm use, this trailer boosts productivity and efficiency across your operations.
Type: Tractor Towed Farm Tipping Trailer
Load Capacity Options: 1 ton, 2 tons, 3 tons, 5 tons, 8 tons, 10 tons
Body Length: From 2.5m to 5m (customizable)
Platform Type: Flatbed / Tipping / Cage / Enclosed (optional)
Material: High-strength carbon steel with anti-rust paint
Axles: Single or dual axle (based on load capacity)
Tires: Pneumatic off-road tires or solid rubber options
Hitch Type: Standard tow bar / Adjustable drawbar
Braking System: Optional mechanical or hydraulic brakes
Tipping System: Manual / Hydraulic tipping available
Color: Red / Green / Blue / Custom color available
Usage: Grain, hay, feed, tools, harvest, field transport
Warranty: 12 months with full after-sales support
Tow Bar Length (Standard Range):
Short Trailers (1–2 tons):
Tow bar length: 800 mm to 1,200 mm
(Good for small tractors and short-distance towing)
Medium Trailers (3–5 tons):
Tow bar length: 1,200 mm to 1,500 mm
(Ideal for general farm transport and mid-size tractors)
Heavy Duty Trailers (6–10 tons):
Tow bar length: 1,500 mm to 2,000 mm
(Required for large loads and improved maneuverability)
Maximum Tow Speed for Farm Tipping Trailer
Off-Road / Field Use:
Recommended max tow speed: 10–20 km/h
(Due to uneven terrain and safety concerns)
On-Road Transport (with brakes and lights):
Recommended max tow speed: 25–40 km/h
(If trailer is properly equipped and road-approved)
Highway or Long-Distance Hauling (only if legally allowed):
Maximum: Up to 50 km/h, depending on local laws and trailer setup
(Requires roadworthy features like hydraulic brakes, reflectors, and lighting)
Important Notes:
Always follow local transport regulations regarding towing speed and trailer certification.
Towing speed must be adjusted based on load weight, weather conditions, and tire rating.
For safety, never exceed the trailer's rated speed or the tractor manufacturer's towing guidelines.
Farm trailer offered with strong steel frame for hauling grain and produce
|
Model |
7CX-5(E) |
|
Loading Capacity(kg) |
5000 |
|
Overall dimension(mm) |
4320*2100*1950 |
|
Carrier inside size(mm) |
3120*1920*460 |
|
Tire Size |
11.5/80-15.3 |
|
No.of tire |
2 |
|
Brake System |
air brake |
|
Power(hp) |
50-60 |
|
Qty of 40'container |
18sets |
|
Weight (KG) |
850kg |
Farm Tipping Trailer Packaging:
Each farm trailer is carefully wrapped with protective film and anti-rust coating before shipping.
Key components (axles, tires, bolts) are securely packed in reinforced wooden crates or steel frames to prevent movement during transit.
Trailers may be shipped fully assembled or in knock-down (CKD) condition depending on buyer preference and shipping method.
Farm Tipping Trailer Shipping Options:
Delivery Method: By sea (FCL/LCL), land freight, or as specified by buyer.
Port of Loading: Long Beach Port
Lead Time: Typically 15–25 working days after deposit confirmation.
Container Load Capacity:
20ft container: 1–2 trailers (knock-down)
40ft container: 3–5 trailers (knock-down) or fewer if fully assembled
Shipping Documents Provided:
Commercial Invoice----Packing List----Bill of Lading----Certificate of Origin (if required)----Product Manual and Assembly Instructions
Note: We offer OEM branding and custom packaging on request. All shipments are insured and comply with international logistics standards for heavy agricultural machinery.
After-Sales Support
12-month warranty on all trailers
Spare parts supply and technical assistance
Assembly instructions and online support for installation or maintenance
Global Trade Expertise
Experience with clients across Africa, the Middle East, Asia, and Latin America
Multilingual support (English, French, Arabic, etc.)
Assistance with import documentation and customs clearance on request
We aim to be your trusted partner in agricultural machinery by offering reliability, customization, and responsive service.
FAQ
1.Delivery time:35 working days
Q1.What are your terms of packing?
A: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A:Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
