Versatile Hydraulic Harrow for Tractors | 3-Point Suspension | Ideal for All Soil Types & Field Sizes

This new Disc Harrow is designed for high productivity, making it ideal for farms. With a 1-year warranty on core components like gears and provided machinery test reports and video outgoing-inspection, it ensures reliable performance.

1BJX series mounted medium disc harrow:This series are used for crushing clods after tillage,preparing soil before seeding , loosening the soil , combining the soil and fertilizer , and cleaningaway stubble of plants in light soil field . With reasonable structure, strong ability to rake , durable,easy to use and maintain, etc.

Manufacturers Direct of New Disc Harrow Middle-harrow Four-wheel Tractor Suspension

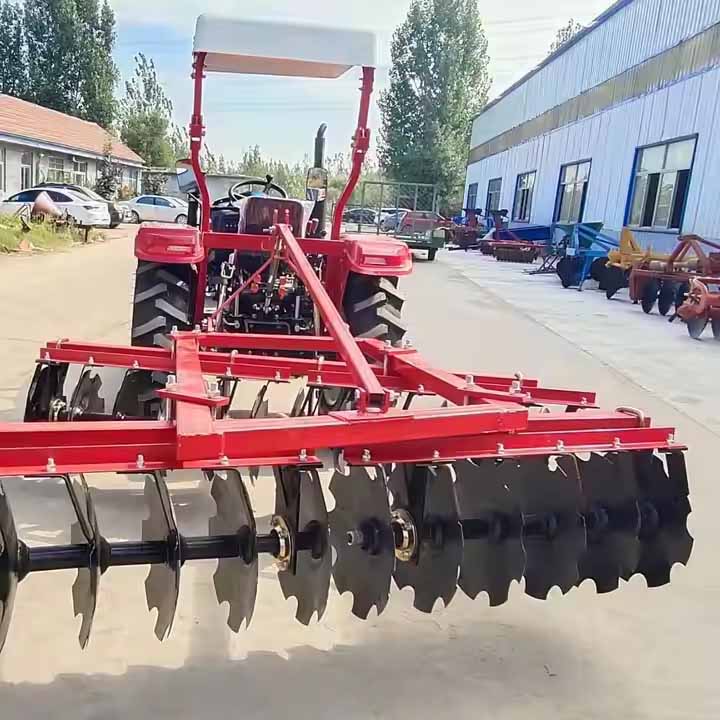

Feature highlights:This Brand New Tractor Mounted Middle Duty Disc Harrow offers a working width of 2200mm and a working depth of 200-250mm, suitable for farms with matched power of 55-70hp.



Farm implement disc harrow features 20pcs of 560mm diameter discs and a robust 3-point linkage system. With a focus on long service life, it includes a 1-year warranty for core components.

Certified by CE and EN ISO 12100, ensuring compliance with EU safety standards and providing market access advantages for buyers.

Supplier highlights:This manufacturer and trader primarily exports to the United States, Philippines, and Germany, offering flexible customization services and design and sample customization.

Agricultural machinery disc harrows have strong soil breaking, soil turning and covering capabilities and are widely applicable. They can cover multiple key links in agricultural production, from pre-sowing land preparation, field management to post-harvest processing, and are suitable for different soil types, crop types and farming needs.

A disc harrow is a tillage implement that uses a harrow group consisting of multiple concave discs fixed on a horizontal axis as its working part.

Farm implement disc harrow working Components:

Consists of a harrow assembly consisting of concave discs mounted at regular intervals on a shaft.

The discs' concave surfaces are typically spherical, but tapered versions are also available. They come in both full-edge and notched-edge styles.

The harrow blades are typically made of wear-resistant 65Mn steel or low-carbon martensitic B5 steel. The center hole is typically square, separated by spacers.

The discs are then screwed onto a square shaft and secured with nuts to form a harrow assembly.

During operation, the discs' cutting edges are perpendicular to the ground and angled with the direction of travel. Driven by the tractor's traction and the soil's reaction force, the discs roll, cutting into the soil and breaking up, turning, and mulching it.

Single-row Opposed Harrow Groups

Single-row Opposed Harrow Groups: Harrow groups are arranged in single horizontal rows on the left and right sides. Each row consists of one or more harrow groups with concave surfaces facing each other.

This type of group is used for leveling irrigated land, stubble removal after harvest, and shallow tillage in fallow land.

Double-row Opposed Harrow Groups

Double-row Opposed Harrow Groups: Harrow groups are arranged symmetrically on the left and right sides. The concave surfaces of the harrow discs in the front rows face each other, while the discs in the rear rows are positioned directly between the discs in the front rows and face opposite concave surfaces. Some opposed harrow groups have staggered left and right harrow groups to avoid missing tillage strips.

Offset Harrow Groups

Offset Harrow Groups: Harrow groups with concave surfaces in the front and rear rows can be positioned with the centerline of the harrow's width offset significantly from the tractor's longitudinal axis during operation.

This type of group is suitable for working under orchard canopies and is also widely used in open fields.

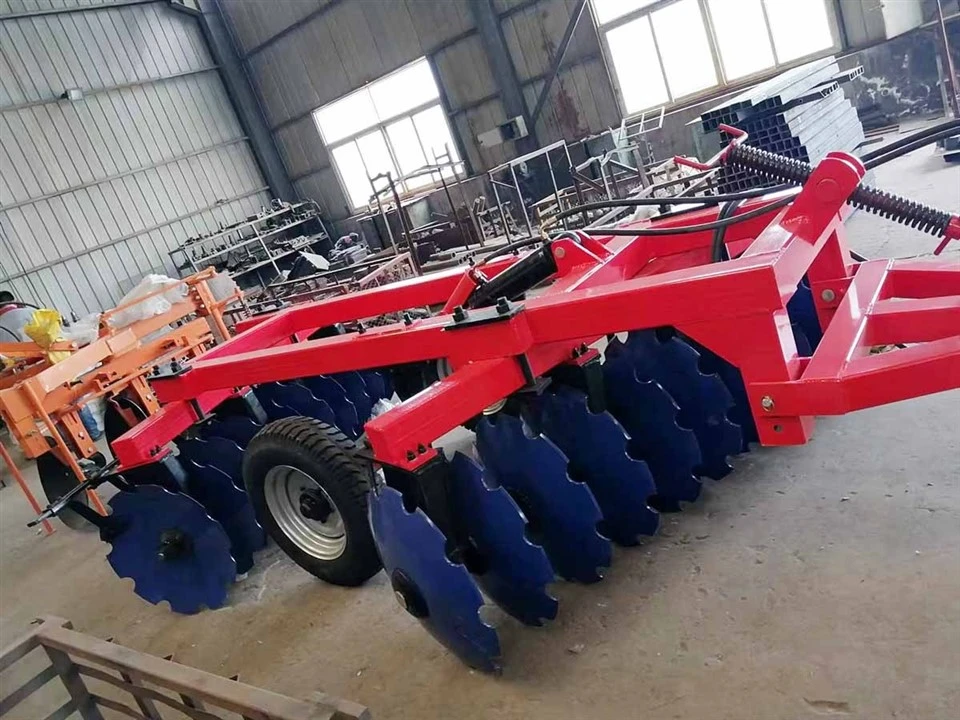

Machine structure: It primarily consists of a harrow frame, harrow groups, a traction or suspension device, and an angle adjustment mechanism. Some lightweight and small harrows are equipped with a counterweight box on the frame to increase penetration depth.

Wide-width harrows can have up to eight harrow groups in the front and rear rows, with up to 104 blades.

The single-chip unit of a heavy-duty harrow weighs up to 75 kg.

Lightweight harrows can cover a width of approximately 9 meters. For harrows with a width exceeding 4 meters, the two wings can be folded or the two rows can be brought together for horizontal traction during road transport.

Farm implement disc harrow applicable Scenarios:
"Soil Breakup and Leveling" After Deep Tillage: Large clumps of soil tend to form after deep tillage. Disc harrows break these clumps into fine particles by rolling and leveling the surface, preventing uneven seeding depths.

"Shallow Loosening and Weeding" Before No-Till/Minimum Tillage Planting: In no-till planting mode, disc harrows can perform shallow tillage (3-8cm deep) to loosen the topsoil and remove early weeds without disrupting the soil structure, making them ideal for no-till planters.

"Soil Preparation" Before Seeding Vegetables/Cash Crops: Crops like tomatoes, peppers, and potatoes require detailed soil preparation before sowing or transplanting.

Lightweight disc harrows can be used in conjunction with rotary tillers to further fine-tune the soil and reduce impurities (such as grass roots and small stones).

We are specialized in various types of tractor equipment,such as disc harrow , plough ,rotary tiller, cultivator , laser leveler , seeder , potato machine , fertilizer spreader , mower , and walking tractor with matched equipment and so on .

All products have passed ISO9001:2000.

FAQs
1. Q: Can I get some samples?
A: We are happy to provide samples for quality confirmation.

2. Q: Do you have any stock in stock?
A: Yes, we have several models for sample.

3. Q: What is the delivery time?
A: Usually, order production takes about 20 days. The exact delivery time will be confirmed with us.

4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model must not be less than the minimum order quantity.

5. Q: What is your warranty terms?
A: We offer different warranty periods for different products. Please contact us for detailed warranty terms.

6. Q: What payment methods do you accept?
A: Usually T/T (Telegraphic Transfer). However, we can also accept payment methods such as Letter of Credit and Western Union.


7. Q: Can you provide OEM production?
A: Yes.
