Product Introduction:

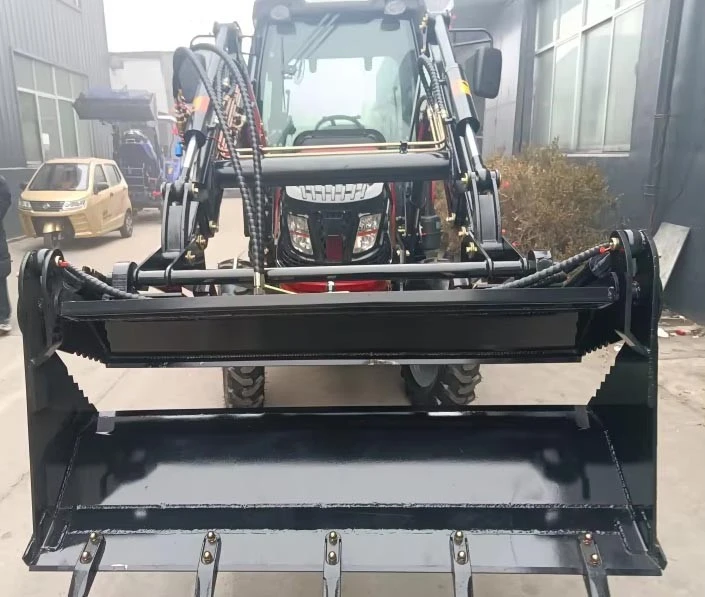

Front end loader & Quick attach bucket 540 /760 PTO.
Category I & II 3-point hitch with a lift capacity of 2796 lbs.
50 HP Diesel engine tractor ensures versatility and durability for construction, farming, and machinery repair applications.
CE certification ans and Russian EAC certificate.
Send Inquiry
Description
Technical Parameters

With Quick Attach Loader & Bucket, 4x4, 50 HP Diesel Engine, 540/760 PTO, 3 Point Hitch, 60" Mid Mount Mower

LS Lawn Mower Tractor 4WD for Agriculture Use With Front and Backhoe Loader.

This four-wheel-drive tractor is equipped with a turbocharged diesel engine producing 50 horsepower and features an advanced IV-compliant emissions control system.



The hydrostatic transmission offers unlimited gears for smooth operation, while the powerful hydraulic system ensures efficient performance.



Weighing 3,067 pounds and offering a variety of tire options for various terrains, this tractor is ideal for agricultural work.

The two-post folding ROPS cab further enhances operator safety.



Equipped with a robust loader-integrated reinforced frame, wet disc brakes, and a Category I & II 3-point hitch with a lift capacity of 2796 lbs, this tractor ensures versatility and durability for construction, farming, and machinery repair applications.



loader-integrated reinforced frame



Tractor loaders hydrostatic power steering, wet disc brakes, and options for 2WD or 4WD configurations, ensuring versatility across farms, construction sites, and manufacturing plants.

With a robust hydraulic system, high lifting capacity, and optional attachments, this tractor offers exceptional productivity and reliability for various industrial applications.



Wheelbase 2050 mm 80,7 in.
Overall width IOOS, fender to fender (outer): 1689 mm 66,5 in. Cab, fender to fender (outer): 1879 mm 74 in.
Overall length Including hood and drawbar: 3640 mm 143,3 in.





3 Point Hitch



With a robust 50HP engine and a 3-year warranty, it is suitable for construction works and building material shops.

The tractor features precise dimensions, including a wheelbase of 2050 mm and an overall length of 3640 mm, ensuring optimal performance in various applications.



Equipped with advanced components such as gearboxes, pumps and motors, it ensures high productivity on farms and construction sites.

Tractor With Loader and Backhoe 4X4 Mini Backhoe Excavator Loader Backhoe Loader



Wheel Tractor Front Rear Loader 3 Point Hitch



With a luxury cabin, air conditioner, and strong stability, it ensures comfort and efficiency for farmers.



Tractor datails

Model No

LE504-3

Specification

50hp

Type

4x2 4x4 wheel

L*W*H(mm)

3558*1500*2245

Wheel base(mm)

1820

Front wheel tread

1040/1140/1240 (step adjustable)

Rear wheel tread

960-1300(stepless adjustble)

Min ground clearence(mm)

340

Dry mass(Kg)

1425

Clutch

Dry, Single plate, Single action

Steering

Hydraulic steering

transmission box

8f+4r shifts

Engine

Engine brand

LD / Quan chai

Engine type

LD 4TE50K / Quan chai 4B5-50

Engine rated power(kw)

36.8

Engine rated speed(r/min)

2400

Fuel

diesel

Tyre

Front tyre

6.00-16

Rear tyre

9.50-24

PTO

suspension type

Rear three point suspension / category 1

PTO speed

720

PTO spline Nos

6

PTO shaft & Spline size

35 spline 6 teeth



lifting force (N)

8280



Professional manufacturerofconstruction machinery.The company has complete productionequipment andcomplete testing equipment. The main productsare: telehandler ,backhoeloader, telescopic loader, wheel loader.dumper,excavator,skid steer loader ,etc.special machine.


The company has obtained the lSO quality management systemcertification and theproducts have obtained the European CE certification ans and Russian EAC certificate.





FAQ

1. Why choose us?
As a manufacturer,Leadray is committed to offer not only backhoe loader with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.



2. What is the product range of our factory ?
Leadray is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.



3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.



4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.



5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to your order.



6. Can we provide OEM service?
We ​can provide customized products according to customers' requirements, both OEM and ODM are acceptable.



7. After-sales service.
We can provide 12 months or 2000 working hours from BL date.



Hot Tags: tractor loaders, China tractor loaders manufacturers, factory, utility tractor power, utility tractor hauling, utility tractor color, utility tractor lawn care, utility tractor mirrors, utility tractor ergonomics

Model

LW-6

Max.Digging Depth (mm)

1500

Max.Digging Radius (mm)

2800

Loading Height (mm)

1500

Digging Degree (deg.

180

Hydraulic Pressure

16Mpa.

Structural Weight (kg)

500

Shipping Dimensions (mm)

2200*800*900

Bucket Width (mm)

300

Tractor Power (hp)

50-70

Moedel

TZ-3

Max.Lift Height (mm)

3200

Max.Dump Reach (mm)

600

Rated Load (kg)

300

Bucket Capacity (m³)

0.3

Bucket Width (mm)

1000-1200

Power Matched (hp)

50-70

Weight (kg)

400
