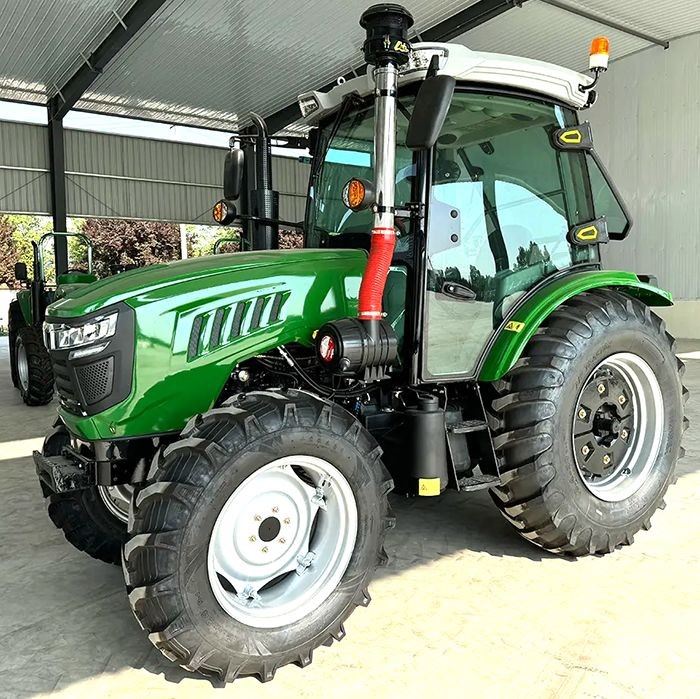

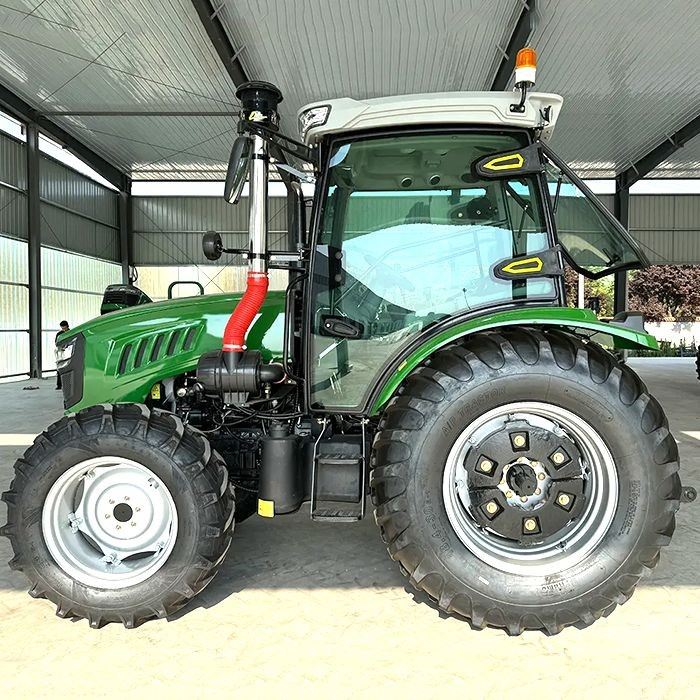

Factory 4wd Wheel 20hp 30hp 40hp 50hp 60hp 70hp 80hp 90hp 100hp 120hp 140hp 150hp 180hp Farm Tractor With Optional Parts
4WD farm tractor with horsepower options ranging from 20hp to 440hp, featuring a luxury air-conditioned cabin, full view design, and easy operation.
It includes a 2-year warranty, free spare parts for quality issues, and supports customization in color. Certified by CE, it ensures compliance with EU safety standards, providing market access assurance.
Starting Method:
Gear shift: 12F+12R Shuttle Shift
Engine type: 4 Stroke Water Cooling Diesel
Steering type: Hydrailic Steering
Engine brand: Xinchai/YTO/Quanchai/Yunnei
PTO type: 8-Ø38 Rectangular Spline
Suspension mechanism: Three-point suspension cat II
Green farm tractor is designed for more than one works in small or medium farm. it could be matched with diverse implements to cope with exclusive agricultural operating conditions.
Using crucial console, mature shape and improved axles, the tractor is straight forward to govern and maintain; non-obligatory aspect console for riding and using comfort.
Standard with 12F + 12R reverse and forward shift gearbox to satisfy the necessities on greater rational speeds. Standard with dual-motion clutches from 10 to eleven inches for extraordinary wishes and operation.
Optional Herringbone tires, paddy tires or different form of tires to fulfill your desires of running conditions. ROPS, cover and cabin is non-compulsory to fulfill distinct running conditions.
Can equipped with rotary cultivator, mower, snow machines and other farm implements.it is a right tractor for family and small farm.

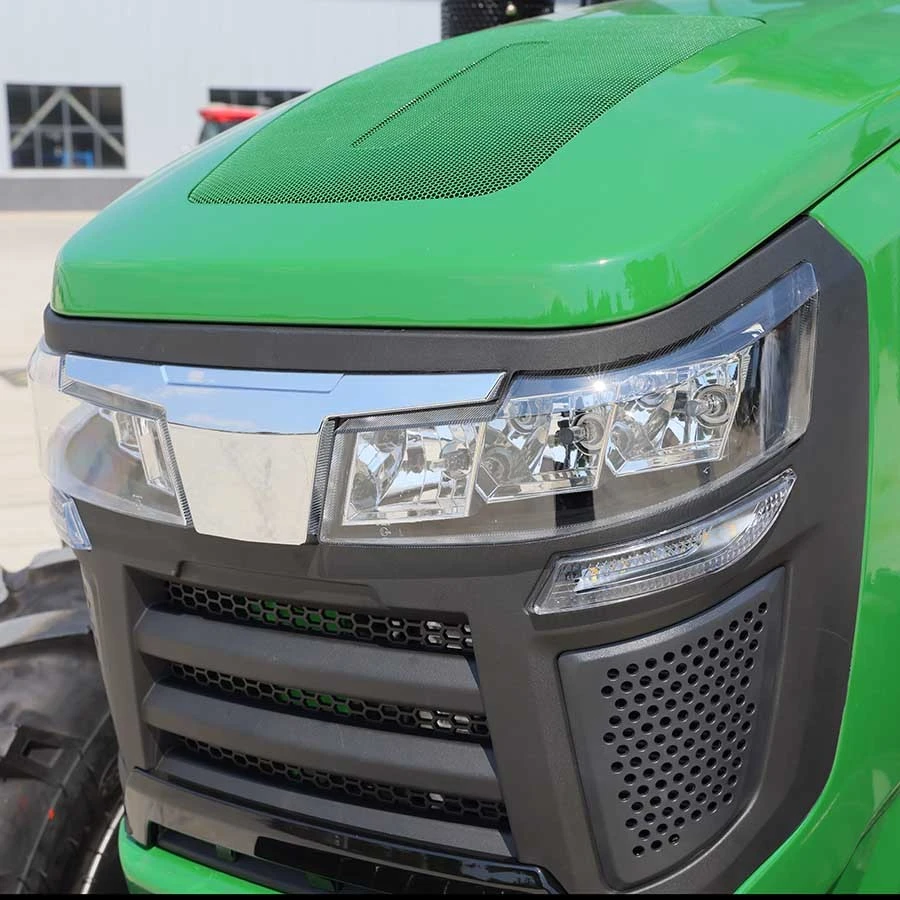

Appearance design Green farm tractor
Improve the elegant and roomy streamlined hood and expand the three-dimensional mesh area to aid in heat dissipation.
Ride comfort
Centralized setup of the fan, air conditioner, and other controls
LCD one kind device panel
Water temperature gauge, oil gauge, and oil stress gauge
Play the Green Farm Tractor Dynamics music.
Rear electricity output
Thickened and thickened three-factor suspension
PTO 540/760 or 540/1000
Multi-manner valve, sturdy raise sturdy drop, Green farm tractor, trailer hook
The quality of tractor products shall comply with the export standards of the supplier. In the case of correct installation, normal operation, and maintenance of the goods, the supplier shall provide a warranty period of 12 months or 1200 hours (whichever comes first) for ( complete machine main components), starting from one month after shipment.
The detailed warranty period for various components of the tractor shall be implemented in accordance with the supplier's warranty regulations.
How To Cooperate With Us?
Determine your cooperation needs for tractors.
Negotiate cooperation details.
Sign the formal cooperation agreement document.
Execute homework testing according to the cooperation agreement.
Conduct tractor operation experiments according to the agreed time and requirements in the cooperation agreement.
After the completion of the assignment, both parties shall conduct acceptance, confirm the quality of the assignment, and record the completion status.
The fee standard stipulated in the cooperation agreement Pay a 30% deposit in advance, and the balance payment 70% can be paid before shipment.
Subsequent cooperation and feedback.
We need to coordinate and collaborate with each other to ensure the smooth execution of the overall plan, completion of tasks, and acceptance!
Packaging & Shipping
1)Firm and safe package to protect the tractors avoiding damage
2)Completed units package in containers
For 1x40GP, completed packing for 2-3 units.
Our Services
We're a manufacturer specialize in product various of tractors for 20 years, and have rich experience in product and export tractors.
- Color
Any color can be acceptable.
- Warranty time and the Spare Parts
1. We supply 2 years long warranty time.
2.The Easy-damage parts, we will send you together with the tractor for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3. We will send you the tool Box For free.
Hot Tags: green farm tractor, China green farm tractor manufacturers, factory, tractor stump grinder hookup, tractor fiber crop farming, tractor vacuum attachment, tractor reliability, tractor forklift attachment, land preparation tractor
Parameter
|
Model |
LE704 |
LE804 |
LE904 |
|
Horsepower(HP) |
70 |
80 |
90 |
|
Type |
Wheel Tractor |
||
|
Wheel Driver |
4WD |
||
|
Tyre Size(F/R) |
7.5-16/12.4-28 |
9.5-24/14.9-30 |
|
|
Engine brand |
Xinchai/Xichai/YTO |
||
|
PTO Speed(r/min) |
8 splines 540/760 |
||
|
Front wheel tread(mm) |
1250,1350,1450 |
||
|
Rear wheel tread(mm) |
1350-1600(Steplessly adjustable) |
||
|
F/R Counterweight(kg) |
120/180 |
||
|
Gear Shifts |
12F+12R |
||
|
Max speed (km/h) |
33.57 |
||
|
Mini clearance (mm) |
385 |
||
|
Max traction(KN) |
22.4 |
22.9 |
|
|
Max lifting force(KN) |
11.6 |
13.4 |
15 |
|
Wheel base (mm) |
2045 |
||
|
Weight(kg ) |
2650 |
2715 |
|
|
Working dimensions(L*W*H)(mm) |
4200*1800*2630 |
||
|
Remarks: |
|||
|
◎The chassis is suitable for 70-100 horsepower ◎12+12 shuttle shift, one lever switch for forward and backward, easy and fast operation ◎High strength rear axle, thick half tube shell, more recognized by users ◎Increasing the brake under high load results in better and more stable braking performance ◎Dual fuel tanks, large fuel capacity, long operating time ◎Domestic renowned engines with large reserve torque and stronger power ◎Gear shifting with engagement sleeve for more flexible shifting operation, optional synchronizer shifting |
|||
