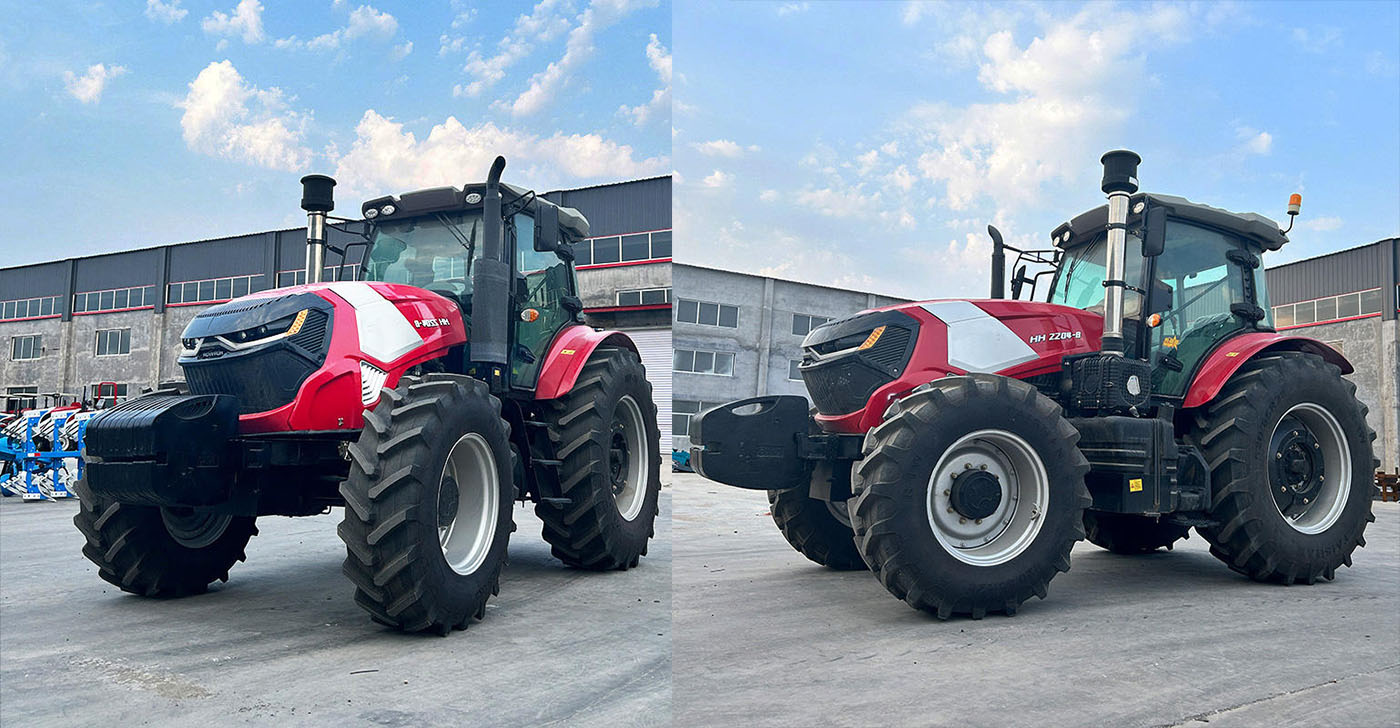

2204 Tractor 4x4 Compact High-Power Tractor | Factory Direct Agricultural Machinery
Core Advantages: Powerful Engine & Durable Gearbox + Factory-Direct Value
As a flagship model for medium-to-large agricultural operations, this 220HP 4x4 tractor combines industry-leading core components with factory-direct supply advantages-delivering uncompromising power, reliability, and cost-effectiveness for modern farms.
Designed to tackle heavy-duty tasks while maintaining operational flexibility, it's the ultimate workhorse for large-scale tillage, harvesting, and material handling.
Key Specifications: Engine & Gearbox (Core Components)
1. Core Engine: Power & Efficiency Redefined
| Parameter | Details |
|---|---|
| Rated Power | 220HP (162.8kW) |
| Engine Type | 6-cylinder in-line, turbocharged & intercooled, water-cooled |
| Fuel System | High-pressure common rail (HPCR) for precise fuel injection |
| Brand Options | Weichai (WP6G220E331), YTO (LR6A270-40), Cummins (QSB6.7) |
| Max Torque | 850-950 Nm @ 1400-1600 RPM |
| PTO Power | 190-200HP (141.7-149.1kW) @ 540/1000 RPM (dual-speed) |
| Fuel Consumption | 8-10 L/h (light work), 12-15 L/h (heavy-duty) |
| Fuel Tank Capacity | 200-280L (supports 10-15 hours of continuous operation) |
| Emission Standard | Euro V / China IV (optional Euro VI for export markets) |
Engine Highlights:
HPCR technology reduces fuel consumption by 8-12% vs. traditional engines, lowering operational costs.
Turbocharged intercooling system ensures strong power output even at high altitudes or in extreme temperatures.
Reinforced cylinder block and forged crankshaft enhance durability-engine lifespan exceeds 8,000 working hours.
2. Heavy-Duty Gearbox: Smooth Operation & Longevity
| Parameter | Details |
|---|---|
| Transmission Type | Synchromesh (16F+8R / 24F+12R) with creeper gear option |
| Drive System | Permanent 4WD with front/rear differential lock (100% power transfer) |
| Clutch | Dual dry clutch (16" reinforced, LUK/self-developed heavy-duty type) |
| Speed Range | 0.4-38 km/h (creeper gear: 0.2-4 km/h for precision work) |
| Gearshift Mechanism | Ergonomic mechanical shift / optional hydraulic power shift (HPS) |
Gearbox Highlights:
Synchromesh design enables smooth, noise-free shifting-reducing operator fatigue during long shifts.
Heavy-duty gear set with carburizing and quenching treatment resists wear and tear under high torque.
Differential lock on both axles ensures superior traction on muddy, uneven terrain.
Full Technical Specifications
Hydraulic System & Attachment Compatibility
Hydraulic Pump Flow: 45-55 L/min (high-flow option: 60-70 L/min)
System Pressure: 250-280 bar
3-Point Hitch Capacity: 3,500-4,200 kg (at lower link ends)
Hydraulic Spool Valves: 3-4 standard (optional 5th valve for complex attachments)
Compatible Attachments: Front loader, backhoe, plow, harrow, seeder, hay baler, grain auger, and more.
Dimensions & Weight
Length (without loader): 4.6-5.0m
Width: 2.0-2.3m (narrow version available for orchard/row crop use)
Height (with cab): 2.8-3.0m
Wheelbase: 2.8-3.2m
Operating Weight: 7,500-9,000 kg (depending on configuration)
Cab & Comfort
Soundproofed deluxe cab with AC/heating, adjustable suspension seat, and air suspension.
Ergonomic control panel with digital display (fuel level, engine temperature, working hours).
ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) certified for safety.
Optional GPS navigation and precision farming integration.
Factory-Direct Supply Advantages
Competitive Pricing: Bypass middlemen for factory-exclusive rates-save 15-30% vs. dealer pricing.
Customization Services: Tailor engine emission standards (Euro IV/V/VI), cab configurations, and attachments to meet regional market requirements.
Direct Technical Support: Access factory engineers for installation guidance, maintenance training, and troubleshooting-no third-party delays.
Efficient Logistics: Fast delivery via major ports (Shanghai, Qingdao, Guangzhou) with flexible shipping terms (FOB/CIF/DDU).
Warranty Assurance: 2-year/3,000-hour warranty for engine and gearbox; 1-year warranty for hydraulic system and chassis (extended warranty optional).
2204 Tractor Applications: Heavy-Duty Agricultural Tasks
Ideal for large-scale farms, plantations, and agricultural cooperatives, this tractor excels at:
Large-area tillage (deep plowing, subsoiling, harrowing) for 500+ acres.
Towing heavy implements (planters, combines, fertilizer spreaders) at high efficiency.
Material handling (loading/unloading grain, hay bales, livestock feed) with front loader.
Orchard/vineyard management (narrow version) for large-scale fruit production.
Irrigation and drainage work (digging ditches, leveling fields).
Livestock farm operations (manure handling, feed distribution, barn cleaning).
Why Choose This 220HP Tractor?
Unmatched Power-to-Cost Ratio: 220HP output meets heavy-duty needs, while factory-direct pricing eliminates markup.
Reliable Core Components: Engine and gearbox from top-tier manufacturers (Weichai, YTO) ensure long-term durability.
Versatility: Compatible with over 50+ agricultural attachments-one machine replaces multiple tools.
Operator-Centric Design: Comfortable cab and intuitive controls reduce fatigue during 8+ hour workdays.
Global Compliance: Emission standards meet Euro IV/V/VI and EPA requirements for export to North America, Europe, and Southeast Asia.
Factory Direct Service Commitment
Customization: Modify engine, gearbox, and dimensions to fit regional crop types and farm sizes.
Quality Control: 100% pre-delivery testing (engine performance, gearbox operation, hydraulic system pressure).
Parts Supply: 24/7 online support + spare parts warehouse in key regions (North America, Europe, Southeast Asia).
Delivery Time: 15-30 days after order confirmation (faster than industry average of 45-60 days).
Contact Us Today to get your factory-direct quote, request a technical datasheet, or schedule a virtual demo. Elevate your farm's productivity with a 220HP tractor that delivers power, reliability, and unbeatable value-directly from the manufacturer to your field.
LEADRAY Agricultural Machinery: Powering Global Farms with Factory-Direct Excellence
