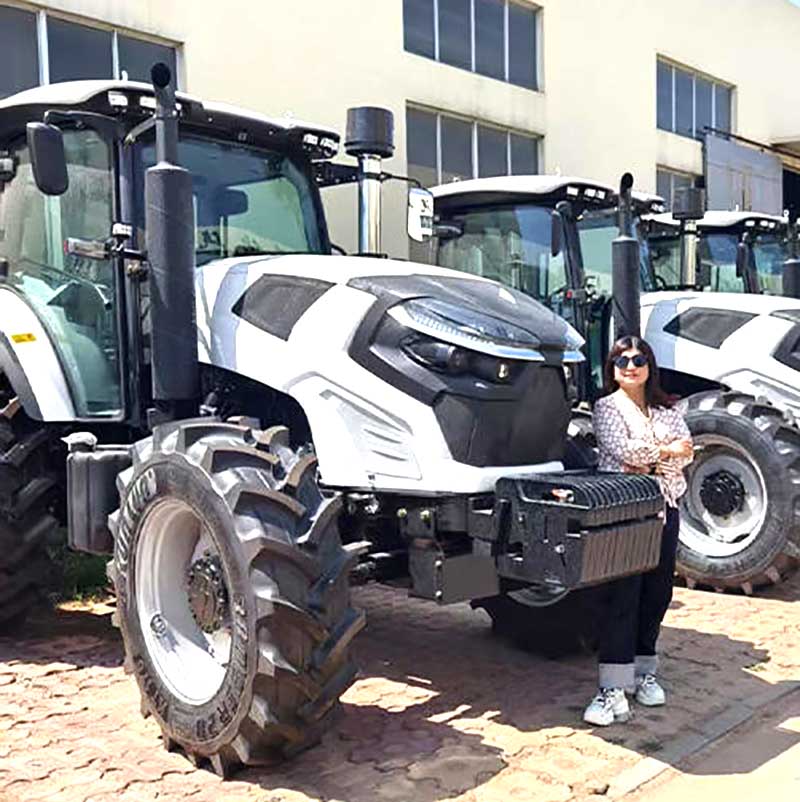

4-Wheel Front End Loader Tractor with 160HP Diesel Engine Farm Agriculture Machinery
Engine & Performance
Power: 160HP (118kW) diesel engine
Type: 6-cylinder, turbocharged, water-cooled, direct injection
Common brands: Weichai (WP6G150E330), Dongfanghong (LR6A175-40E), Cummins
Max torque: 538 lb-ft (729.5 Nm) (example: AGCO DT160)
PTO power: ~140HP (104kW) at 540/1000 RPM
Transmission & Drive
Drive: 4WD (four-wheel drive) with front axle differential lock
Transmission: 12+4, 16+8 or 24+8 gears with optional crawler gear (speed <4m/min)
Clutch: Dual dry clutch (14" reinforced LUK)
Hydraulics & Loader
Pump flow: 29-39 gpm (109-147 L/min)
System pressure: 2900 psi (200 bar)
Front loader capacity: 453-907 kg (1000-2000 lbs) at max height
Max lift height: 2.3-2.7m (90-105")
Bucket breakout force: Up to 15.7kN (3540 lbs)
Dimensions & Weight
Weight: 5,300-6,900 kg (5.3-6.9 tons)
Wheelbase: ~2.5-3m (100-119")
Fuel tank: 120-380L (32-100 gal)
Applications in Agriculture
Primary Uses
Material handling: Loading/unloading hay bales, feed, fertilizers, grain
Land preparation: Heavy-duty plowing, deep ripping, leveling
Construction work: Farm road building, drainage ditches, site development
Livestock operations: Bedding management, feed distribution
Why Choose 160HP?
160HP strikes the perfect balance between:
Power: Adequate for heavy farm work without excessive fuel consumption
Size: Maneuverable in fields yet stable for heavy loads
Cost: More affordable than 180-200HP models while still meeting most farm requirements
Versatility: Handles 90% of agricultural tasks from tilling to material handling
Key Considerations When Purchasing
Loader specifications:
Bucket capacity: 0.8-1.2m³ recommended for 160HP
Self-leveling feature: Greatly improves operator efficiency
Hydraulic system:
Multiple spool valves (3-4) for complex attachments
Flow rate: >30gpm (113L/min) for efficient loader operation
Comfort features:
Soundproofed cab with AC/heating
Suspension seat
Ergonomic controls reduce operator fatigue
Warranty:
Engine: 1-2 years or 2,000 hours
Transmission: 2 years
Hydraulics: 1 year
