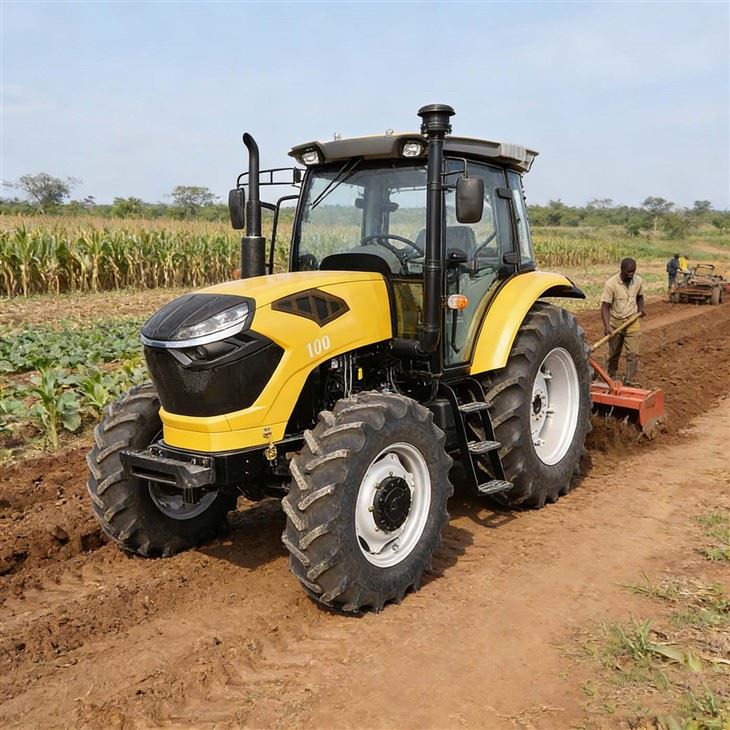

100HP Compact Tractor

100HP Compact Tractor
Product Introduction:
100HP Compact Tractor | Tailored for Southeast Asian Agriculture.
Gearbox 10+10 shuttle shift or synchronizer shift gearbox, capable of fast forward/reverse switching to meet the requirements of different working speeds.
Power Output (PTO) Speed 540/1000r/min can be connected to agricultural machinery such as rotary tillers and seeders.
✅ Thailand/Vietnam rice paddies: rotary tillage, transplanting, harvesting and transportation.
✅ Malaysia/Indonesia rubber plantation: trenching and fertilization, material transportation.
✅ Philippine Pineapple Orchard: Ridging, Weeding, Fruit Transportation.
✅ Vegetable Base in Cambodia: Land Preparation, Film Covering, Irrigation with Buried Lines.
Send Inquiry
Description
Technical Parameters

✨ Why is it the 'golden choice' for Southeast Asian farms?


The rainy season in Southeast Asia is muddy, with scattered plots and diverse crops. Ordinary tractors either lack power or are bulky and difficult to adapt to.


This 100HP compact tractor perfectly balances strong power and flexible handling, making it an efficient production tool for small and medium-sized farms and cooperatives.



The tractor with a power of 100HP belongs to the "golden power range", which not only has the power reserve to drive most agricultural activities such as rotary tillage, sowing, harvesting, and transportation, but also is more flexible and has lower purchase and maintenance costs than high horsepower models.



Small and medium-sized farms


Small and medium-sized farms, agricultural cooperatives, and family farmers, adapted to meet the agricultural production needs of developing regions such as China, Southeast Asia, and Africa.



1. Closed and comfortable cab: equipped with full view glass and sealed structure, supporting air conditioning, dust and rain prevention functions, greatly improving the comfort of long-term field operations, especially suitable for rainy, sandy or high-temperature areas.


2. High passability chassis: large pattern off-road tires+high ground clearance design, deep tread can provide strong grip in mud and slopes, avoiding slipping; High ground clearance allows for easy passage through complex terrains such as paddy fields and ravines.


3. Humanized details: Side mounted anti-skid pedals facilitate getting in and out of the car, the engine compartment layout is neat, key components are reserved for maintenance space, reducing the difficulty of daily maintenance.



4. 100HP compact tractor can be equipped with agricultural tools such as rotary tillers, seeders, harvesters, and straw returning machines to complete the entire process of plowing, sowing, and harvesting. It can also tow trailers to achieve short distance grain transportation.


5. In economic crop planting areas such as orchards and tea gardens, trenching machines and fertilizing machines can be used to complete refined operations; It can also be equipped with bulldozers and graders to meet the needs of small-scale infrastructure and site consolidation.





Small Tractor With Loader

Tractor with loader the complete gadget has a ultra-modern streamlined appearance, correct managing performance, and bendy maneuverability.

Small Tractor With Loader

100HP Compact Tractor with loader Reinforced chassis, 10+10 mesh shuttle shift, more reasonable speed distribution.

Small Tractor With Loader

Equipped with a powerful engine and high torque output system, Small tractor with loader can provide sufficient power output to drive and pull heavy loads.

Small Tractor With Loader

Adopting a wide tire or track system enables 100HP Compact Tractor with loader to distribute loads and provide a larger contact area, increasing traction and grip.

The 100HP turbocharged engine has sufficient power reserve, which can not only drive the rotary tiller to deeply cultivate rice fields, but also tow trailers to transport economic crops such as rubber and pineapple, meeting more than 80% of Southeast Asian agricultural production needs.


The fuel consumption is 12% lower than the same power model, and it is more fuel-efficient to rush to harvest during the rainy season.



High ground clearance (≥ 450mm)+large tread off-road tires, easy to pass through paddy fields and muddy roads, avoiding bottoming and slipping;


The engine compartment adopts a waterproof sealing design to reduce the intrusion of rainwater and mud, and extend the life of core components.



The vehicle has a width of only 1.8 meters and a small turning radius. It can also flexibly turn around in narrow areas such as rubber plantations, orchards, and terraced fields, improving efficiency by 20% compared to high-power models.



The fully enclosed cab is equipped with air conditioning and UV resistant glass to isolate tropical heat and mosquitoes;


Suspended seat+hydraulic control system, not easily fatigued even after long-term operation, suitable for Southeast Asia's long cycle farming season.





Suspended seat+hydraulic control system



FAQ

Is 100HP power sufficient for Southeast Asian farms?
A: Completely sufficient. 100HP is the "golden power segment" of Southeast Asian agriculture, capable of driving over 80% of agricultural activities such as rotary tillage, sowing, harvesting, and transportation. It is suitable for the production needs of local mainstream crops such as rice, rubber, and pineapple, with sufficient power reserves and more economical fuel consumption.


Q2: Can this tractor operate in paddy fields and muddy terrain?
A: Okay. It is equipped with a high ground clearance of ≥ 450mm and large tread off-road tires, which can easily pass through paddy fields and muddy roads; The engine compartment adopts a waterproof sealing design to reduce the intrusion of rainwater and mud, and is not afraid of the harsh environment of Southeast Asia's rainy season.


Q3: Can it be used on slopes and terraces?
A: Supporting four-wheel drive (4WD), with strong tire grip and small turning radius, it can operate stably in narrow terrain such as slopes and terraces, and is suitable for the mountainous and multi slope farmland environment in Southeast Asia.



Q4: What is the fuel consumption of this tractor?
A: Adopting turbocharging technology, the fuel consumption is 12% lower than that of models with the same power, with an hourly fuel consumption of about 6-8L. It is more fuel-efficient to harvest during the rainy season and has lower long-term operating costs.





Hot Tags: 100hp compact tractor, China 100hp compact tractor manufacturers, factory, tractor for farming, tractor drill seeder hookup, tractor charcoal tractor, tractor tundra farming, rural tractor, tractor wheat harvester hookup

Parameter



Model

LE1004

Horsepower(HP)

100HP

Type

Wheel Tractor

Wheel Driver

4WD

Tyre Size(F/R)

12.4-24/16.9-34

Engine brand

YTO/Weichai/Xinchai/Xichai

PTO Speed(r/min)

8 splines 760/850 or 760/1000 or 540/1000

Front wheel tread(mm)

1485,1610,1710,1810,1950,2202

Rear wheel tread(mm)

1620-2020(Steplessly adjustable)

F/R Counterweight(kg)

200 or 350 or 380/320 or 336 or 490 or 500 or 510 or 720

Gear Shifts

16F+8R

Max speed (km/h)

38.7

Mini clearance (mm)

365/379/400/475

Max traction(KN)

34.3

Max lifting force(KN)

16.5

Wheel base (mm)

2960

Weight(kg )

4150

Working dimensions(L*W*H)(mm)

4300*2280*3000

Remarks:

1. The chassis is suitable for 70-100 horsepower

2.12+12 shuttle shift, one lever switch for forward and backward, easy and fast operation

3. High strength rear axle, thick half tube shell, more recognized by users

4. Increasing the brake under high load results in better and more stable braking performance

5. Dual fuel tanks, large fuel capacity, long operating time

6. Domestic renowned engines with large reserve torque and stronger power

7. Gear shifting with engagement sleeve for more flexible shifting operation, optional synchronizer shifting
