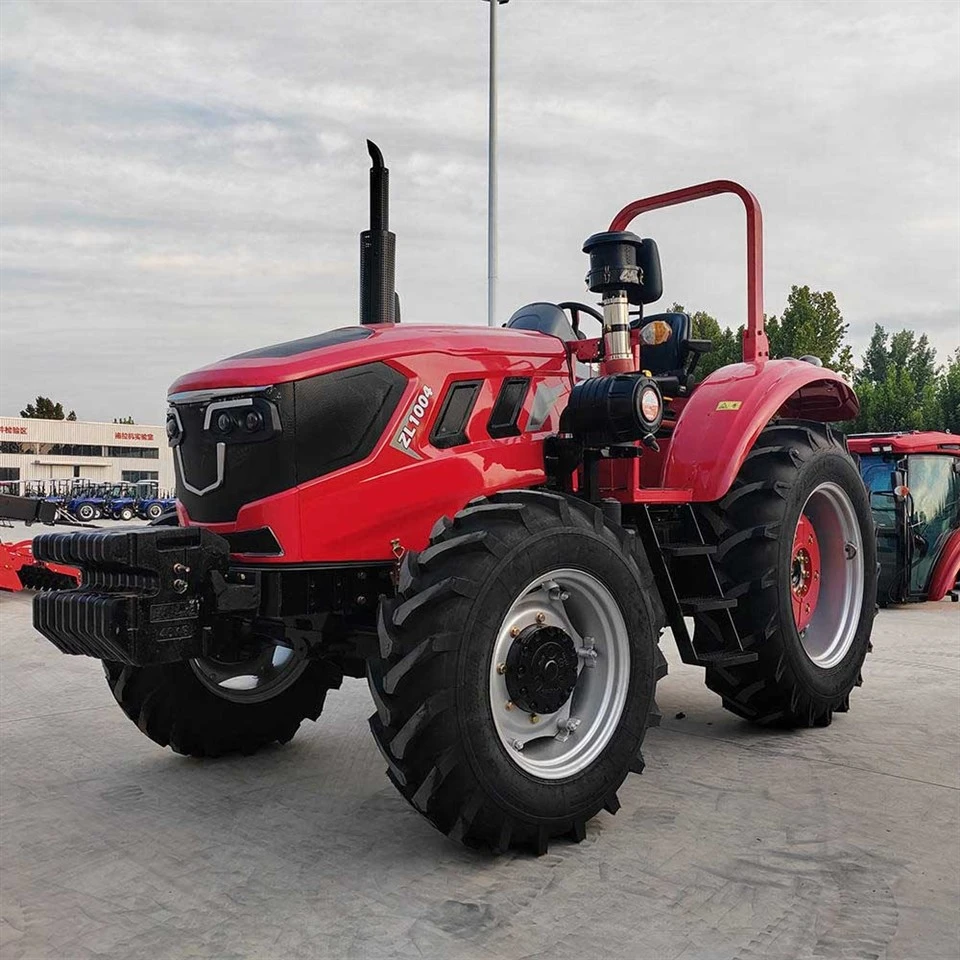

Farm Wheel Tractor 100hp Multifunctional Agricultural Machinery 4wd 4x4 Tractors
100HP 4WD tractor features a robust 4100 supercharged engine with a large torque reserve, ensuring energy efficiency and low fuel consumption.
It includes a reinforced central transmission, oil-immersed disc brakes for reliable performance, and a fully hydraulic steering system for effortless control. Equipped with a durable YTO engine delivering 100HP/73.5KW, it supports long working hours with an enlarged diesel tank.
Multifunctional adaptability for various farming tasks, and ergonomic design for enhanced comfort. 100HP 4WD tractor features a wide range of customizable accessories, including rotary tillers, mowers, and balers.
Dry brakes are standard, with oil-bath wet brakes available.
Available farmland, turf, and off-highway tires meet various operational needs.
A four-wheel drive front axle with a central steering cylinder is standard, with a maximum ground clearance of 335mm.
Available single or dual hydraulic outputs are suitable for a variety of farm and transport operations.
100HP 4WD tractor with a power output speed of 720 rpm and optional 540/720 rpm, it is compatible with a variety of agricultural implements and has a wide range of applications.
|
Model |
LE1004 |
|
Horsepower(HP) |
100HP |
|
Type |
Wheel Tractor |
|
Wheel Driver |
4WD |
|
Tyre Size(F/R) |
12.4-24/16.9-34 |
|
Engine brand |
YTO/Weichai/Xinchai/Xichai |
|
PTO Speed(r/min) |
8 splines 760/850 or 760/1000 or 540/1000 |
|
Front wheel tread(mm) |
1485,1610,1710,1810,1950,2202 |
|
Rear wheel tread(mm) |
1620-2020(Steplessly adjustable) |
|
F/R Counterweight(kg) |
200 or 350 or 380/320 or 336 or 490 or 500 or 510 or 720 |
|
Gear Shifts |
16F+8R |
|
Max speed (km/h) |
38.7 |
|
Mini clearance (mm) |
365/379/400/475 |
|
Max traction(KN) |
34.3 |
|
Max lifting force(KN) |
16.5 |
|
Wheel base (mm) |
2960 |
|
Weight(kg ) |
4150 |
|
Working dimensions(L*W*H)(mm) |
4300*2280*3000 |
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower, disc plough,rake, spraying machine and rotary cultivator.
1.Adopt 4100 supercharged engine with large cylinder diameter, long stroke, large torque reserve, energy saving, low fuel consumption, easy starting, compact structure and low maintenance cost.
2. Enlarge diesel tank to meet long-term working requirements.
3. Strengthened central transmission and star shaped final transmission, strengthened bridge housing, high strength and good durability.
4.Oil-immersed disc brake pads, more reliable braking performance.
5. Us pended accelerator pedal and clutch device, more laborsaving control and more convenient operation.
Our company has professional technicians and advanced equipment. With advanced technology and management concepts, we ensure the qualified rate of each device. This has won unanimous praise from our partners and environmental protection departments at all levels, laying a solid foundation for the healthy development of the company and a bright future.
LEADRAY Agricultural Machinery Co., Ltd. adheres to the principle of "lowest price, highest quality." We continuously absorb advanced equipment and construction experience from both domestic and international suppliers, focus on technological breakthroughs, and transform the latest technological achievements into first-class products for the market.
Our business principles are "Integrity, Quality, and Service First."
Our operational goals are "Service Optimization, Technical Specialization, System Standardization, and Comprehensive Equipment." Our core values are "Professionalism, Focus, and Specialization."
FAQ
Q. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q. Why should you buy from us not from other suppliers?
Factory with 20 years farm tractor manufacture experience ensure the products quality.
All products must go through checks before manufacturing process.
Every production line is equipped in an individual QC to ensure well-done production.
Q. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Q. What after-sales service guarantees are available after purchase?
Our machines come with a one-year warranty. During this period, if any problems arise with the machine, we will repair it free of charge (excluding damage caused by human error).
Q. Do you offer OEM services?
We can provide customized products based on customer requirements, both OEM and ODM options are available.
