Description
Technical Parameters
18.1kW high-power engine, rated speed of 2200rpm, sufficient power reserve, high core selling point exploration power; The engine, hydraulic pump, oil cylinder, and multi way valve all use well-known brand accessories, with stable oil pressure output and low failure rate.
Excavation operation parameters: standard bucket capacity of 0.06m ³; The maximum excavation height is 2900mm, the maximum excavation depth is 1900mm, and the maximum excavation radius is 2500mm. The efficiency of earthwork excavation, garden trenching, and foundation repair operations is excellent.
Thickened and strengthened hydraulic cylinder+flexible oil pipe protection, with stronger excavation thrust and bucket pulling force, suitable for mild crushing and heavy-duty excavation conditions; The integrated casting excavator connecting rod has a sturdy and deformation resistant structure.
Basic warranty: 1-year warranty for the entire machine, covering all core components such as the engine, gears, and walking motor;
Appearance customization: The standard factory color is red, and customized body colors such as blue, black, yellow, green, etc. are available. Customers can also print their own logos.
Optional side swing arm and fully enclosed panoramic cab, closely attached to walls and green belt construction without spatial limitations.

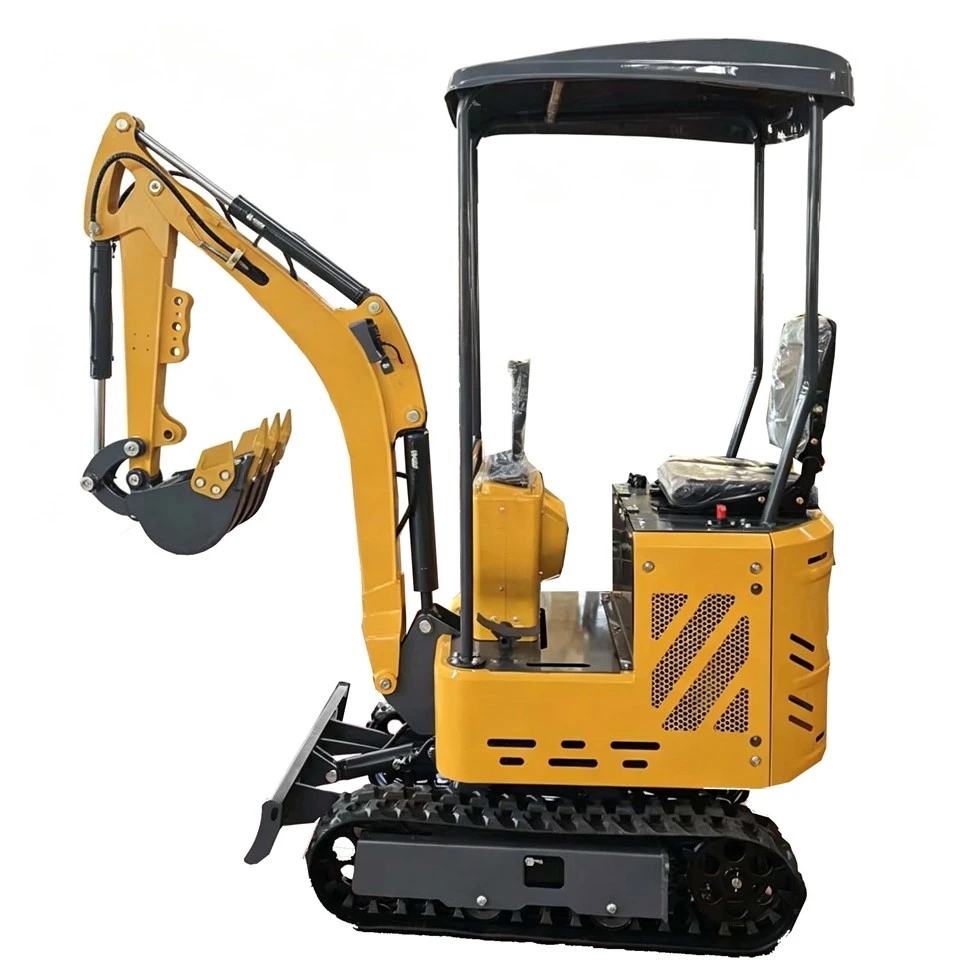

A: Product Name LR-12: Small Crawler Excavator; The machine weighs 1500kg and is a universal earthmoving machinery suitable for small construction projects.
Q2: What are the engine power and hydraulic configuration?
A: Engine power of 18.1kW/2200rpm; The engine, hydraulic pump, cylinder, and valve all use well-known brand parts, providing powerful digging power is our core advantage.
Q3: What are the bucket capacity and excavation parameters?
A: Standard bucket capacity: 0.06m ³; Maximum excavation height: 2900mm; maximum excavation depth: 1900mm; maximum excavation radius: 2500mm; 360 ° swing angle, with a climbing ability of up to 30 °.
Q4: What are the advantages of thickening rubber tracks?
A: Wear resistant thickened rubber tracks with anti slip deep grooves; The ground pressure is only 38kPa, which will not scratch the lawn, tiles or asphalt pavement; Durable and sturdy, reducing construction noise, it is an ideal choice for indoor and courtyard work.
Q5: What accessories can this excavator be matched with?
A: Equipped with quick connectors, compatible with auxiliary tools such as hydraulic crushers, spiral drills, wooden grab buckets, ground rakes, and grading buckets, suitable for multi scene construction.
Q6: What is your warranty policy?
A: The 1-year complete machine warranty covers all core components: engine, gears, travel motor, hydraulic pump, cylinder, valves, etc. We provide lifelong remote video technology support.
Q7: Can I customize the machine color and my own brand logo? Is there any additional fee?
A: The standard color is red, and other colors can be customized. The customer's brand logo printing is available, and we will confirm the customization cost based on your design.
Q8: What documents will you provide before shipment?
A: Mechanical testing report, factory inspection video, commercial invoice, packing list, English operation manual, and complete set of customs clearance documents.
Q9: Is this small excavator easy for beginners?
A: Yes, it is. Equipped with ergonomic shock-absorbing seats and sensitive hydraulic control levers. Beginners can quickly master basic operations through our English operation guide.
Excavation operation parameters: standard bucket capacity of 0.06m ³; The maximum excavation height is 2900mm, the maximum excavation depth is 1900mm, and the maximum excavation radius is 2500mm. The efficiency of earthwork excavation, garden trenching, and foundation repair operations is excellent.
Thickened and strengthened hydraulic cylinder+flexible oil pipe protection, with stronger excavation thrust and bucket pulling force, suitable for mild crushing and heavy-duty excavation conditions; The integrated casting excavator connecting rod has a sturdy and deformation resistant structure.
Factory comprehensive testing: hydraulic pressure test, load excavation, climbing durability test. Each equipment comes with a mechanical testing report and factory inspection video, with traceable quality;
Basic warranty: 1-year warranty for the entire machine, covering all core components such as the engine, gears, and walking motor;
Appearance customization: The standard factory color is red, and customized body colors such as blue, black, yellow, green, etc. are available. Customers can also print their own logos.
Equipped with ergonomic shock-absorbing seats and precise hydraulic control handles, it is easy for beginners to get started; Small displacement engines have low fuel consumption and are suitable for long-term light load operations in orchards and greenhouses; Strong universality of components and low cost of overseas maintenance and replacement.
Equipped with hydraulic quick change joints, it can quickly switch auxiliary tools such as breaking hammers, spiral drilling machines, wood grabbing tools, rake buckets, widened buckets, etc., to achieve multi process operations of excavation, crushing, drilling, grabbing, and land leveling.
Optional side swing arm and fully enclosed panoramic cab, closely attached to walls and green belt construction without spatial limitations.
FAQQ1: What is the model and weight of this excavator?
A: Product Name LR-12: Small Crawler Excavator; The machine weighs 1500kg and is a universal earthmoving machinery suitable for small construction projects.
Q2: What are the engine power and hydraulic configuration?
A: Engine power of 18.1kW/2200rpm; The engine, hydraulic pump, cylinder, and valve all use well-known brand parts, providing powerful digging power is our core advantage.
Q3: What are the bucket capacity and excavation parameters?
A: Standard bucket capacity: 0.06m ³; Maximum excavation height: 2900mm; maximum excavation depth: 1900mm; maximum excavation radius: 2500mm; 360 ° swing angle, with a climbing ability of up to 30 °.
Q4: What are the advantages of thickening rubber tracks?
A: Wear resistant thickened rubber tracks with anti slip deep grooves; The ground pressure is only 38kPa, which will not scratch the lawn, tiles or asphalt pavement; Durable and sturdy, reducing construction noise, it is an ideal choice for indoor and courtyard work.
Q5: What accessories can this excavator be matched with?
A: Equipped with quick connectors, compatible with auxiliary tools such as hydraulic crushers, spiral drills, wooden grab buckets, ground rakes, and grading buckets, suitable for multi scene construction.
Q6: What is your warranty policy?
A: The 1-year complete machine warranty covers all core components: engine, gears, travel motor, hydraulic pump, cylinder, valves, etc. We provide lifelong remote video technology support.
Q7: Can I customize the machine color and my own brand logo? Is there any additional fee?
A: The standard color is red, and other colors can be customized. The customer's brand logo printing is available, and we will confirm the customization cost based on your design.
Q8: What documents will you provide before shipment?
A: Mechanical testing report, factory inspection video, commercial invoice, packing list, English operation manual, and complete set of customs clearance documents.
Q9: Is this small excavator easy for beginners?
A: Yes, it is. Equipped with ergonomic shock-absorbing seats and sensitive hydraulic control levers. Beginners can quickly master basic operations through our English operation guide.
Hot Tags: mini crawler excavator 1.2 ton, China mini crawler excavator 1.2 ton manufacturers, factory
| LR-12-Mini Excavator Technical Specification | ||
| Parameter | Specification | |
| Bucket capacity | 0.025 m³ | |
| Bucket width | 400 mm | |
| Form of working device | Backhoe | |
| Track width | 180 mm | |
| Chassis width | 930 mm | |
| Arm length | 1500 mm | |
| Rod length | 850 mm | |
| Excavation depth | 1700 mm | |
| Excavation height | 2500 mm | |
| Operation method | Mechanical | |
| L × W × H (Overall dimension) | 2200 × 930 × 2000 mm | |
| Engine | Yanmar 192 | |
| Power | 8.2 kW | |
| Fuel consumption (Theoretical) | 0.8–1.1 L/h | |
| Hydraulic pump | Gear pump | |
| Rotation angle | 360° | |
| Climbing angle | 30° | |
| Walking speed | 3 km/h | |
| Operating weight (Work quality) | 1200 kg | |
| Total weight | 700 kg | |
