Soil Fertilizing Operation Tractor Accessories Cultivator
High-performance cultivator models (3ZT-1.2 to 3ZT-3.0) with adjustable cutting widths (1200mm to 3000mm) and depths (100-250mm), suitable for various tractor powers (25hp to 100hp).
Features include durable disc diameters (260mm to 640mm), compatibility with 3 Point Cat1 & 2 tractors, and export-quality packaging. Backed by a 1-year warranty and machinery test report, ensuring reliability and precision for agricultural efficiency.

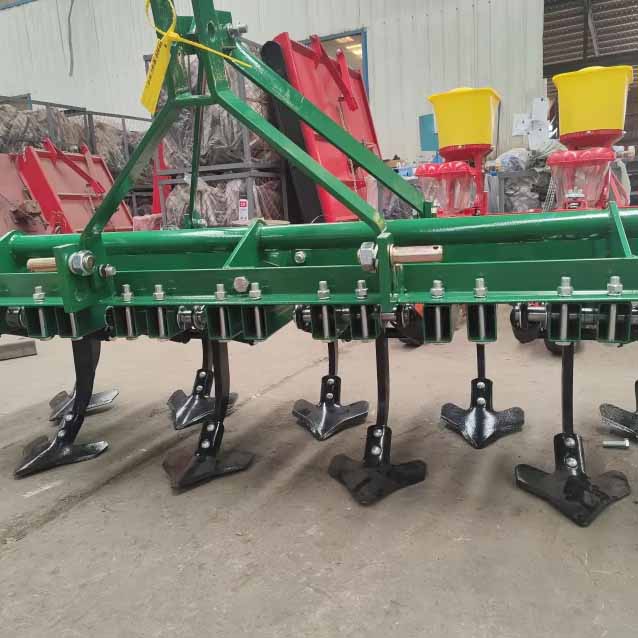

1. This type of Spring tooth Cultivator have shovel and tyne for choice.
2.The shovel (or the tyne) already has been heat treated, hard enough to afford the collision while engage with the rocks, boulders and other obstructions.
3. Tractor accessories cultivator is a tractor mounted spring cultivator for 25-100hp tractor.
|
Model |
unit |
1.2 |
1.4 |
1.8 |
2.2 |
2.5 |
3.0 |
|
Working width |
mm |
1200 |
1400 |
1800 |
2200 |
2500 |
3000 |
|
Working depth |
mm |
100-250 |
|||||
|
No. of tines |
|
5 |
7 |
9 |
11 |
13 |
15 |
|
Total weight |
kg |
260 |
320 |
400 |
490 |
550 |
640 |
|
Matched power |
hp |
25 |
30-40 |
40-50 |
50-70 |
70-80 |
80-100 |
|
Linkage |
|
Three-point suspension II type |
Three-point suspension II type |
||||
Tractor accessories cultivator main components
Working Parts: Including tines, blades, etc. The tines of the spring - tine cultivator are made of special steel to ensure high durability; the blades of the rotary cultivator are usually made of wear - resistant materials and have a certain shape and angle to improve the tillage effect.
Power - Transmission System: Tractor accessories cultivato used to transmit the power of the tractor to the working parts, such as gears, chains, etc. The gearbox of the Paddock tractor PTO - driven tiller is highly reliable and can effectively transmit the tractor's power to the tilling blades.
Adjustment Mechanism: Used to adjust the working depth, row spacing, etc. of the cultivator. Many cultivators are equipped with hydraulic or mechanical adjustment devices, which can be adjusted according to different soil conditions and farming requirements.
Tractor accessories cultivato advantages
High Work Efficiency: Taking advantage of the power of the tractor, it can quickly complete a large - area of tillage operations, which is much more efficient than manual or animal - driven tillage.
Good Tillage Quality: It can make the soil loose, fine, and evenly mixed, creating a good soil environment for crop growth, which is conducive to seed germination, root growth, and water and nutrient absorption.
Strong Adaptability: It can be matched with different models of tractors and can be adjusted according to different soil types, terrain, and crop requirements to adapt to a variety of farming conditions.
FAQ
Question:With what guarantee?
All the product is guarantee for one year, and if you need parts when it damaged you can contact us to change.
Question:How to ship?
Shipping method depends on your choices. We can support door delivery by air to airport by DHL, Fedex or UPS, and also we can do shipment to your sea port as well. The cost is different according to your location and the machine model you choose, you can ask for more courier cost details after deciding which machine to buy.
Question:How about the package?
Reply: Our products are packaged by standard export wooden cases, free from fumi-gator.
Question: How about delivery time?
Reply: Usually 15 days base on order quantity. Please check with customer servicestaff for lead time.
Question: Whats the MoQ and payment terms?
Reply: MOQ is 1 set. Payment by T/T.
Question: Can l customize a product?
Reply: Sure, we can provide OEM and ODM service
